2000 Suzuki DR200SE Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2000 Suzuki DR200SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

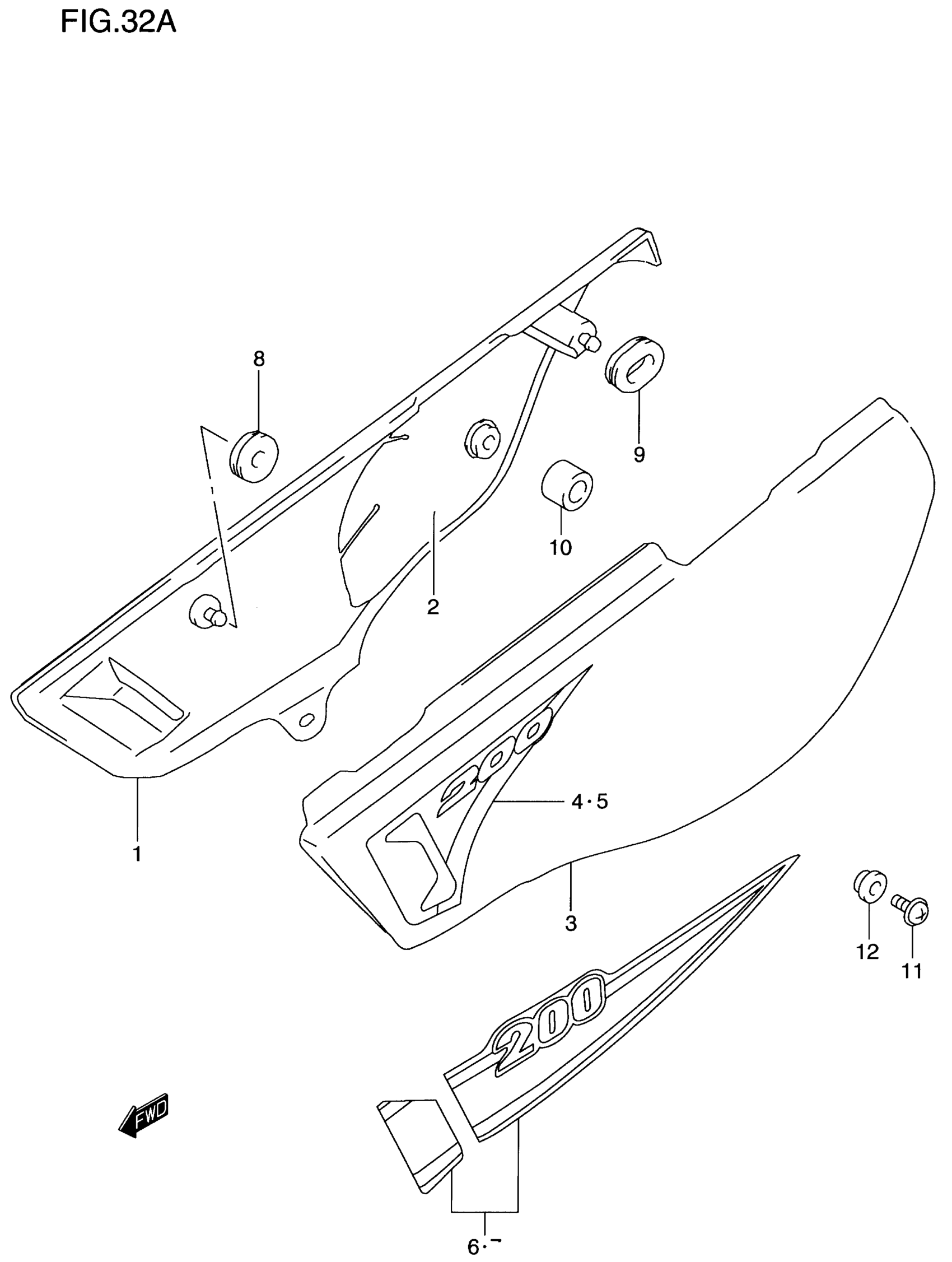

2000 Suzuki DR200SE Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (WHITE) This part replaces 47111-44AA0-30H.

47111-44AC0-30H

1
Out of stock

2

SHIELD, FRAME COVER RH

47166-44AA0

1
Out of stock

3

COVER, FRAME LH (WHITE) This part replaces 47211-44AA0-30H.

47211-44AB0-30H

1
Out of stock

4

TAPE, RH | MODEL X

68135-44AE0-Y9C

1
Out of stock

5

TAPE, LH | MODEL X

68145-44AE0-Y9C

1
Out of stock

6

TAPE SET, RH | MODEL Y

68130-44A80-AZ5

1
Out of stock

7

TAPE SET, LH | MODEL Y

68140-44A80-AZ5

1
Out of stock

8

CUSHION

09320-08018

2
Out of stock

9

CUSHION

09320-08029

2
Out of stock

10

CUSHION

09321-10027

1
Out of stock

11

SCREW (6X16)

09136-06017

2
Out of stock

12

2

$2.35

In stock
← Frame Cover Label →
