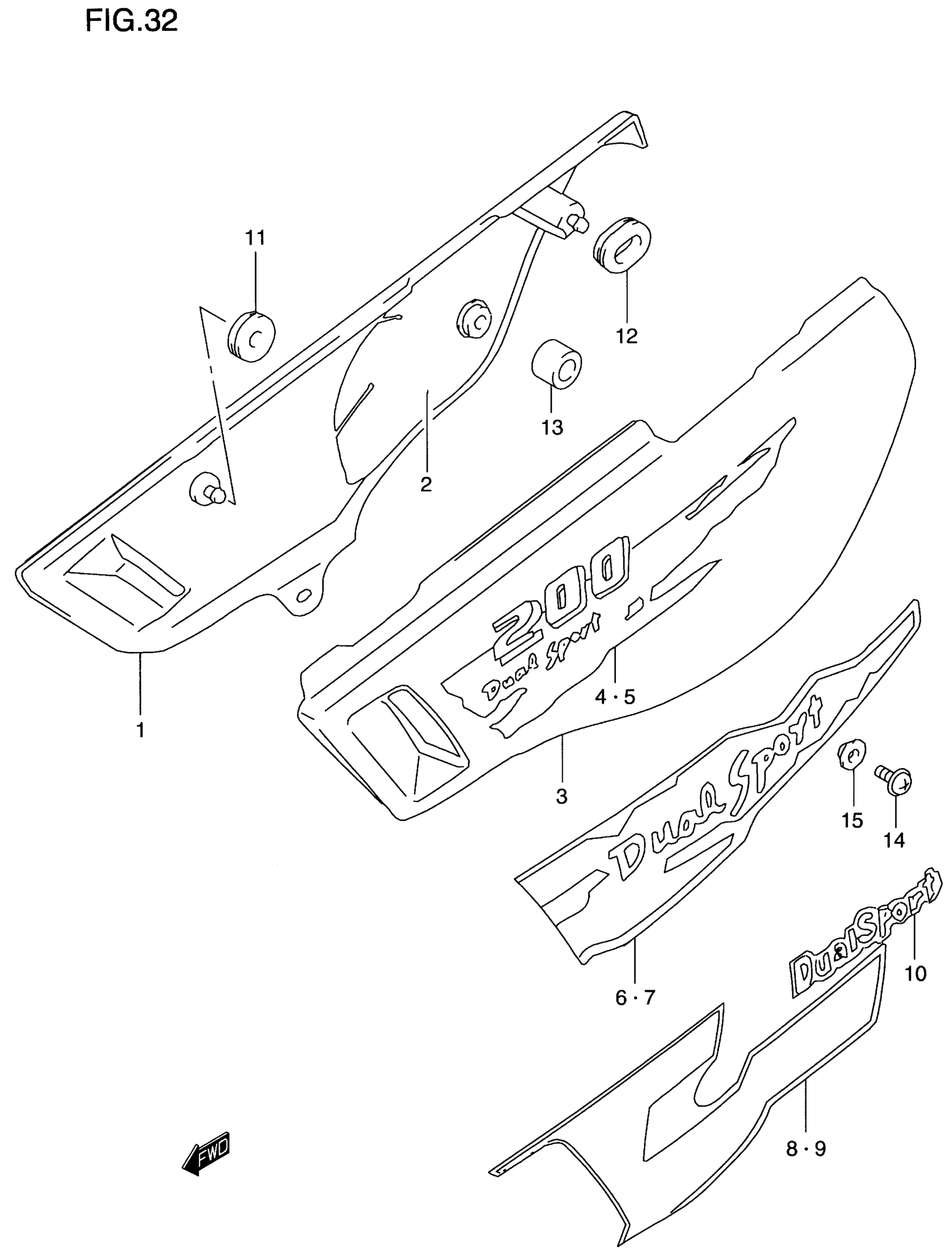

Suzuki DR200SE (2000) FRAME COVER (MODEL T/V/W) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) This part replaces 47111-44AA0-30H.

47111-44AC0-30H

$79.61

2

SHIELD, FRAME COVER RH

47166-44AA0

$34.27

3

COVER, FRAME LH (WHITE) This part replaces 47211-44AA0-30H.

47211-44AB0-30H

$108.07

4

TAPE, RH | MODEL T

68135-44A60-Z65

Unavailable

5

TAPE, LH | MODEL T

68145-44A60-Z65

Unavailable

6

TAPE, RH | MODEL V

68135-44A80-G3M

Unavailable

7

TAPE, LH | MODEL V

68145-44A80-G3M

Unavailable

8

TAPE, RH | MODEL W

68135-44AC0-J6Z

Unavailable

9

TAPE, LH | MODEL W

68145-44AC0-J6Z

Unavailable

10

EMBLEM | MODEL W

68131-44A70-J7B

Unavailable

11

CUSHION

09320-08018

$2.80

12

CUSHION

09320-08029

$2.51

13

CUSHION

09321-10027

$7.38

14

SCREW (6X16)

09136-06017

$2.39

15

WASHER This part replaces 09169-06028.

09169-06041

$1.97
