2000 Suzuki DR200SE Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2000 Suzuki DR200SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

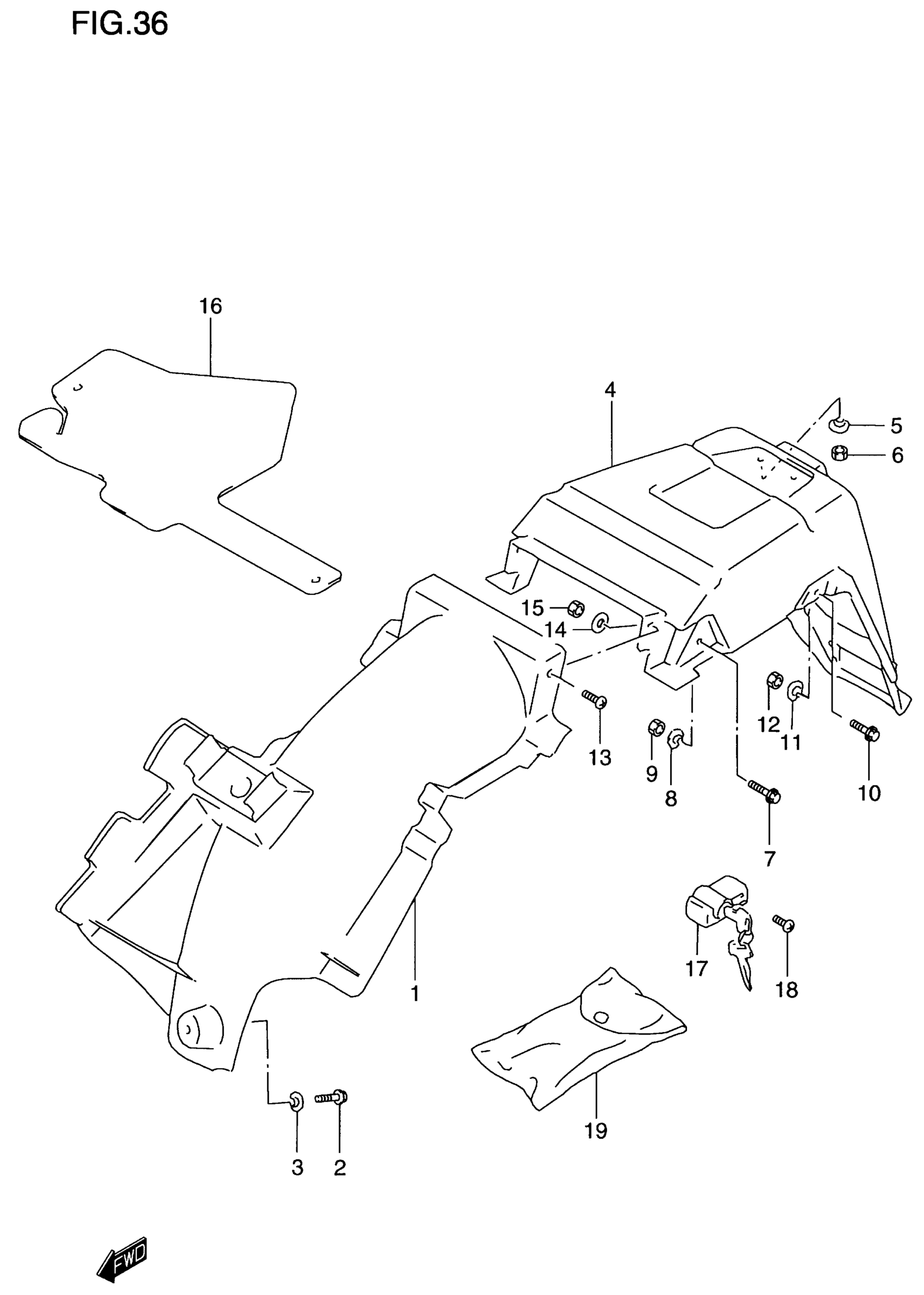

2000 Suzuki DR200SE Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT This part replaces 63110-44AA0.

63110-44AB0

1
Out of stock

2

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

3

WASHER

09169-06010

1
Out of stock

4

BODY, REAR FENDER (WHITE) This part replaces 63100-44AC0-30H.

63100-44AG0-30H

1
Out of stock

5

WASHER This part replaces 09169-06045.

09169-06055

2
Out of stock

6

NUT

08319-31067

2
Out of stock

7

BOLT (8X25) This part replaces 09106-08120.

09106-08151

2
Out of stock

8

WASHER

09169-08037

2
Out of stock

9

NUT This part replaces 08310-00083.

08310-0008A

2
Out of stock

10

BOLT This part replaces 01550-06203.

01550-0620A

2
Out of stock

11

WASHER This part replaces 09169-06045.

09169-06055

2
Out of stock

12

NUT

08319-31067

2
Out of stock

13

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

14

WASHER | MODEL T/V This part replaces 09160-06006.

09160-06084

2
Out of stock

14

WASHER | MODEL W This part replaces 09160-06132.

09160-06084

2
Out of stock

14

WASHER (6.5X18X1.6) | MODEL X/Y

09160-06084

2
Out of stock

15

NUT

08319-31067

2
Out of stock

16

MUD FLAP, REAR FENDER FRONT

63411-44AA0

1
Out of stock

17

LOCK SET HELMET This part replaces 95700-44810.

95700-41821

1
Out of stock

18

SCREW

09139-06089

1
Out of stock

19

TOOL ASSY This part replaces 09800-21022.

09800-21104

1
Out of stock
