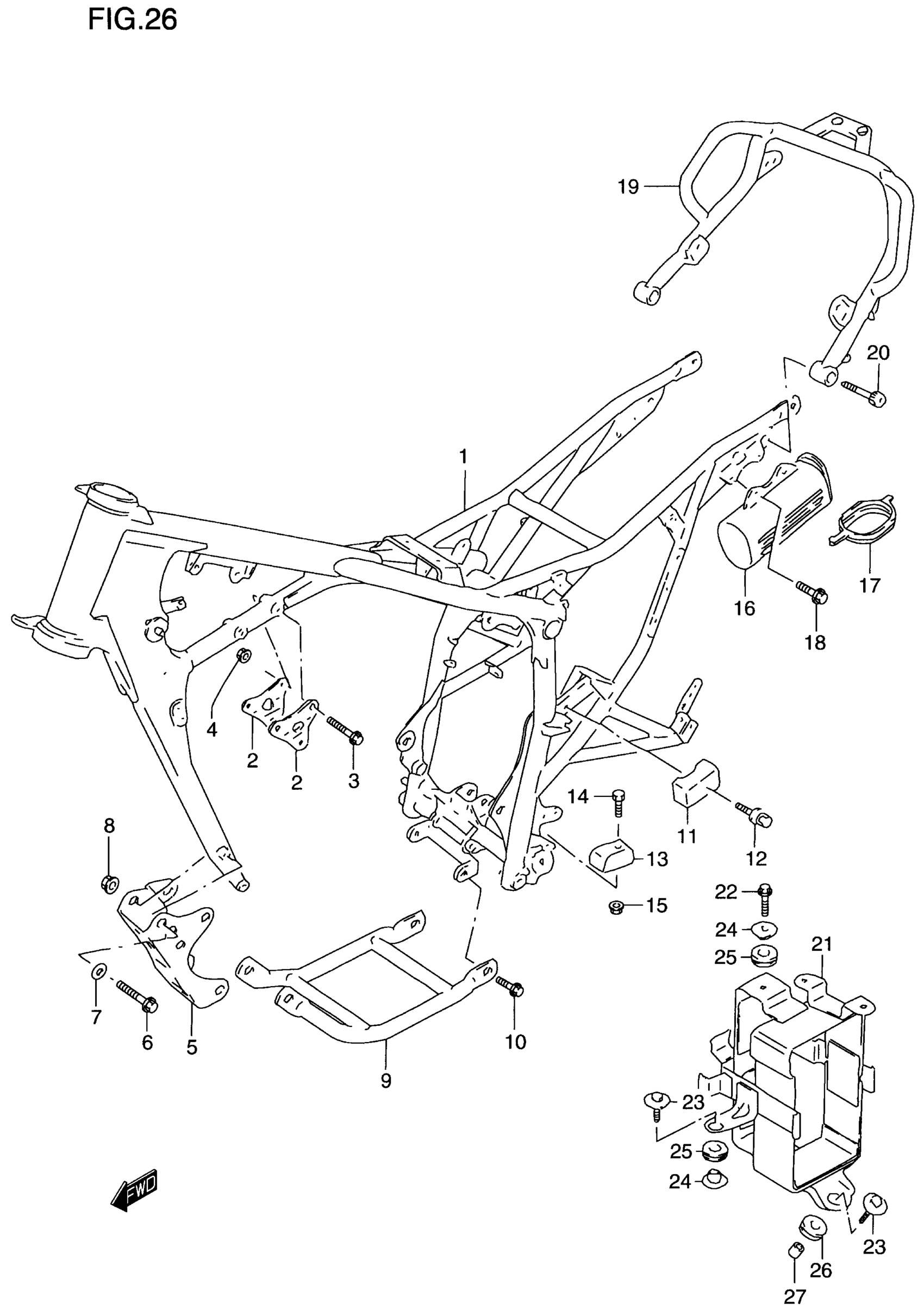

Suzuki DR200SE (2000) FRAME (MODEL T/V/W) Diagram

#

Description
Price

1

FRAME This part replaces 41100-44AB0-Z16.

41100-44AB1-Z16

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 41100-44AD0-Z16.

41100-44AD1-Z16

Unavailable

2

PLATE, ENGINE MOUNT, UPPER (BLACK)

41991-42A00-291

$17.40

3

BOLT (8X53)

09103-08332

$5.00

4

NUT This part replaces 08319-31083.

08319-3108A

$2.31

5

PLATE, MOUNT LOWER (PURPLE) | MODEL T

41992-44AA0-Z16

Unavailable

5

PLATE, MOUNT LOWER (PURPLE) | MODEL V/W This part replaces 41992-44AA1-Z16.

41992-44AA0-Z16

Unavailable

6

BOLT (8X65)

09103-08328

Unavailable

7

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.83

8

NUT This part replaces 08319-31083.

08319-3108A

$2.31

9

PROTECTOR, ENGINE (PURPLE)

42510-44AA0-Z16

Unavailable

10

PLUG, OIL GALLERY This part replaces 01550-10163.

01550-1016A

$2.84

11

GUIDE,CH CONTRO This part replaces 43911-44A00.

43911-44A01

$17.82

12

BOLT This part replaces 01580-06353.

01580-0635B

$4.35

13

GUIDE, CHAIN LOWER

43912-42AA0

$33.12

14

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

15

NUT This part replaces 08319-31063.

08319-3106A

$2.01

16

HOLDER, TOOL This part replaces 41551-38200.

41551-38201

$46.98

17

CAP, TOOL HOLDER

41552-37210

$9.21

18

BOLT, CENTER This part replaces 09116-06144.

09116-06165

$3.30

19

GRIP, REAR (WHITE)

43980-44AB2-1TS

Unavailable

20

BOLT (8X30)

09106-08105

$4.12

21

HOLDER, BATTERY

41540-44AA0

Unavailable

22

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

23

BOLT, LOWER

09116-06047

Unavailable

24

SPACER | MODEL T This part replaces 41570-47D00.

09169-06065

$4.70

24

SPACER | MODEL V/W

09169-06065

$4.70

25

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

26

CUSHION | MODEL T/V This part replaces 09320-10043.

09320-10501

$4.85

26

CUSHION | MODEL W

09320-10501

$4.85

27

SPACER, LOWER LH | MODEL T This part replaces 09180-06210.

09180-06285

$2.63

27

SPACER, LOWER LH | MODEL V/W

09180-06285

$2.63
