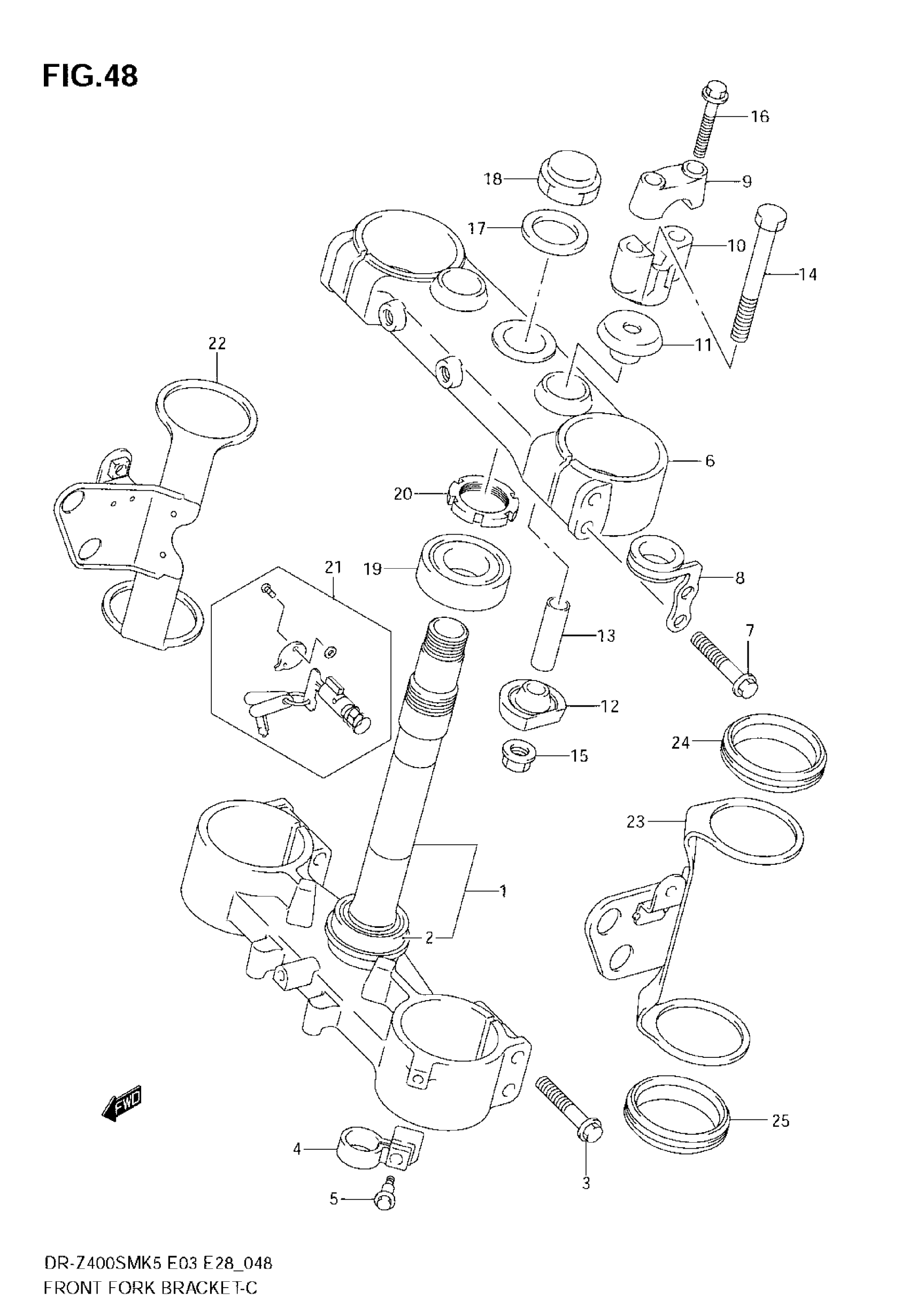

Find the part on the Front Fork Bracket diagram for your 2008 Suzuki DR-Z400SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki DR-Z400SM Front Fork Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, UNDER | Includes Item(s) 2

51410-29F70

1
Out of stock

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

1
Out of stock

3

BOLT

51166-35F00

4
Out of stock

4

GUIDE, FR BRAKE HOSE

58621-29F00

1
Out of stock

5

BOLT

09111-06087

1
Out of stock

6

BRACKET, UPPER

51311-29F70

1
Out of stock

7

BOLT

51166-35F00

4
Out of stock

8

GUIDE, CABLE

51280-29F00

1
Out of stock

9

HOLDER, HANDLE, UPPER

56211-29F00

2
Out of stock

10

HOLDER, HANDLE, UNDER

56221-28C60

2
Out of stock

11

CUSHION RUBBER UPPER This part replaces 56241-42AE0.

56241-42AE1

2
Out of stock

12

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

2
Out of stock

13

SPACER

56243-42A00

2
Out of stock

14

BOLT

56321-27E00

2
Out of stock

15

NUT

08319-31107

2
Out of stock

16

BOLT, HANDLE HOLDER

51321-08G00

4
Out of stock

17

WASHER,STEM HEAD

51356-29E00

1
Out of stock

18

NUT, STEM HEAD

51353-27G00

1
Out of stock

19

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

1
Out of stock

20

NUT STEERING

51631-28E00

1
Out of stock

21

LOCK ASSY,STEER This part replaces 51900-30901.

51900-309V0

1
Out of stock

22

BRACKET, HEADLAMP HSG, RH

51530-29F10

1
Out of stock

23

BRACKET, HEADLAMP HSG, LH

51540-29F10

1
Out of stock

24

DAMPER, UPPER

51553-29F10

2
Out of stock

25

DAMPER, LOWER

51553-29F20

2
Out of stock
