Description

Price

1

HUB, FRONT WHEEL

54111-29F10

$355.08

2

SPACER, FRONT HUB (20.5X27.3X70)

54731-36E10

$29.07

3

BEARING This part replaces 08130-69047.

08130-6904B

$47.02

4

SEAL, LH (25X37X6)

09283-25083

$7.67

5

AXLE, FRONT This part replaces 54711-29F00.

54711-29F10

$118.47

6

BOX ASSY SPEEDOMETER GEAR This part replaces 54600-29F10.

54600-29F11

$97.60

7

SPACER, AXLE LH (L:31)

54751-36E10

$16.33

8

NUT

09159-18018

$21.71

9

DISC, FRONT BRAKE

59220-29F00

$428.63

10

SCREW

09120-06014

$2.43

11

TIRE FRONT This part replaces 55110-29FA0.

55110-29FA1

$292.65

12

TUBE ASSY, WHEEL INNER

55200-29FA0

$66.07

13

PROTECTOR, INNER TUBE

55261-29FA0

$7.23

14

RIM FR WHEEL (17XMT3.50)

55311-29F10

$513.41

15

SPOKE SET, FRONT WHEEL

55320-29F10

$136.30

16

WASHER

09160-18034

$3.22

17

BALANCER, WHEEL NO.2

55412-41F00

$8.12

17

BALANCER WHEEL (30G)

55413-41F00

$9.95

18

EMBLEM,EXCEL(8 | MODEL K6 ONE SET WITH EIGHT PIECES This part replaces 68390-29F00-8JR.

68390-29F01-8JR

$36.00

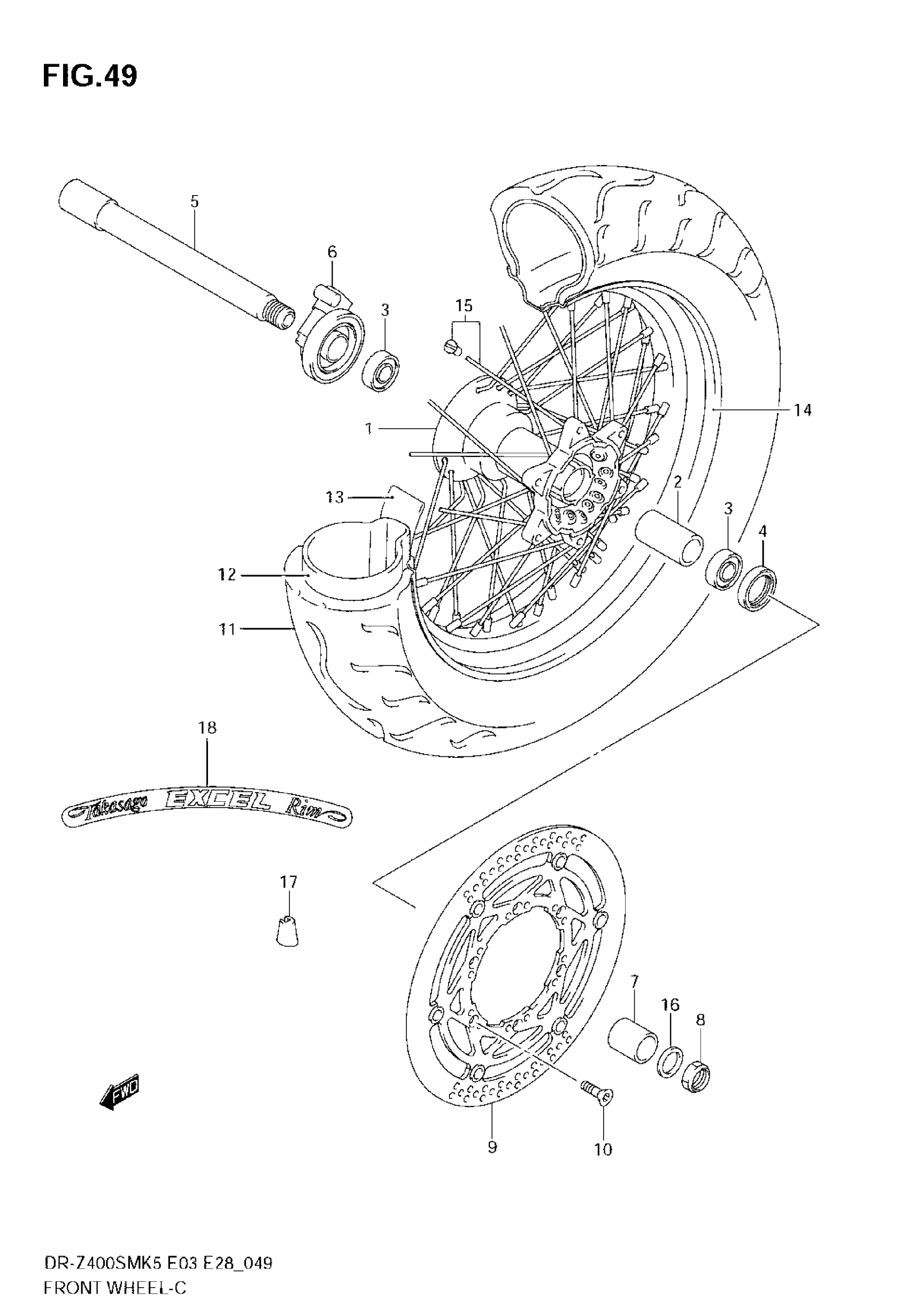

Suzuki DR-Z400SM (2008) FRONT WHEEL (MODEL K5/K6) Diagram
