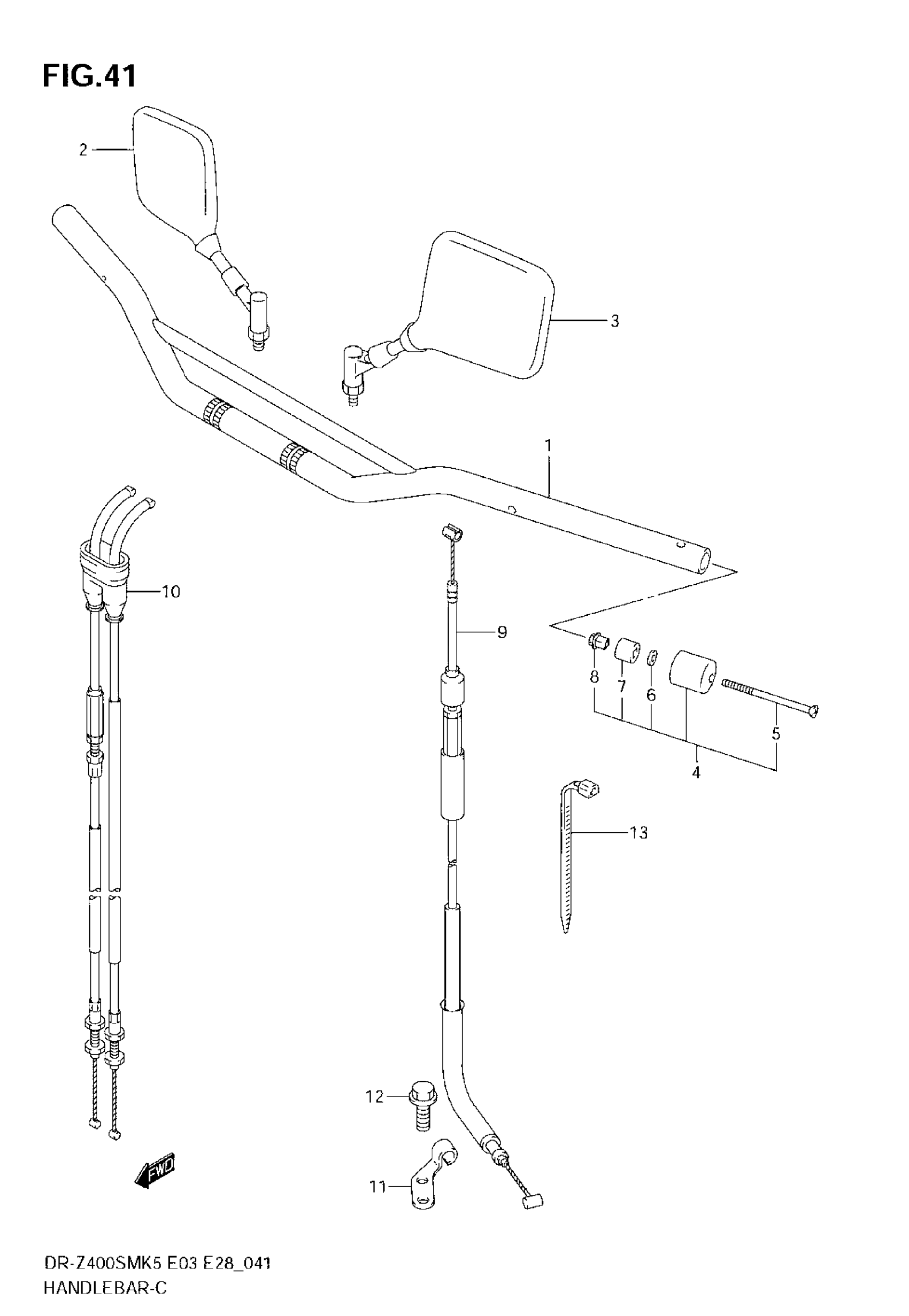

Suzuki DR-Z400SM (2008) HANDLEBAR (MODEL K5/K6) Diagram

#

Description

Price

1

HANDLEBAR (SILVER)

56110-29F10-13L

$181.56

2

MIRROR ASSY RR VIEW R This part replaces 56500-06G10.

56500-06G30

$167.98

3

MIRROR ASSY RR VIEW L This part replaces 56600-06G10.

56600-06G30

$167.98

4

BALANCER SET HANDLEBAR | Includes Item(s) 5 - 8 This part replaces 56200-29830.

56200-29832

$26.54

5

SCREW

02122-0660B

$2.80

6

WASHER

09160-06131

$2.53

7

.EXPANDER HANDLE BALANCER

56272-10G20

$6.75

8

NUT This part replaces 56273-10G00.

56273-10G10

$7.92

9

CABLE, CLUTCH

58200-29F10

$30.41

10

CABLE SET, THROTTLE This part replaces 58301-29F10.

58301-29F11

$57.57

11

STOPPER, CLUTCH CABLE

58634-29F00

$14.18

12

BOLT, STOPPER

01550-0612B

$2.38

13

CLAMP

09407-10404

$2.71

13

CLAMP

09407-25401

$4.21
