2004 Suzuki DR-Z400S Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2004 Suzuki DR-Z400S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

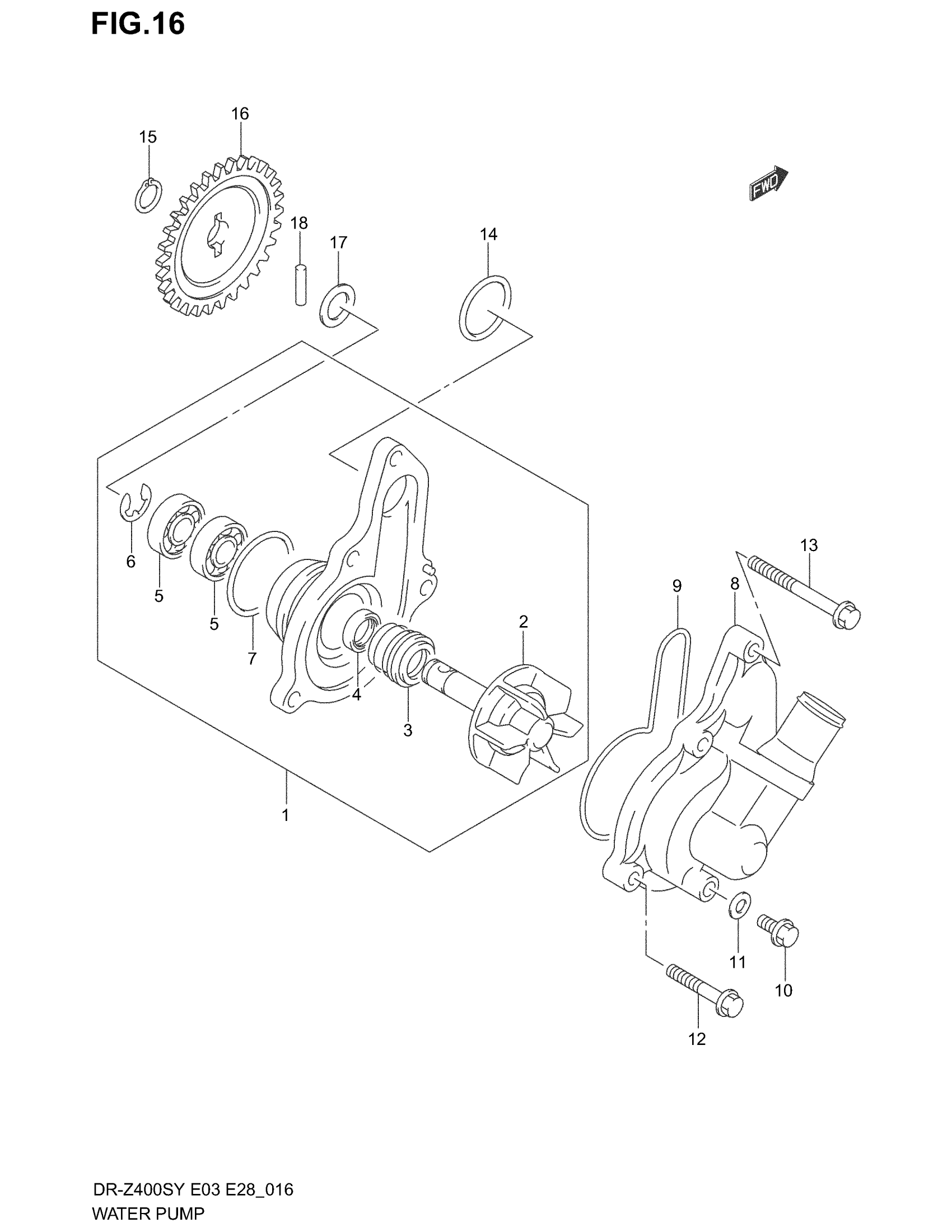

2004 Suzuki DR-Z400S Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER | Includes Item(s) 2 - 7 This part replaces 17400-29F00.

17400-29F01

1
Out of stock

2

IMPELLER/SHAFT

17491-29F00

1
Out of stock

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

1
Out of stock

4

OIL SEAL

17419-29F00

1
Out of stock

5

BEARING

08110-69000

2
Out of stock

6

.E-RING This part replaces 08332-11086.

08332-1108A

1
Out of stock

7

.O-RING

17435-33400

1
Out of stock

8

CASE, WATER PUMP | MODEL Y/K1 This part replaces 17410-29F00.

17410-29F01

1
Out of stock

8

CASE, WATER PUMP | MODEL K2 This part replaces 17410-29F20.

17410-29F21

1
Out of stock

8

CASE, WATER PUMP | MODEL K3/K4

17410-29F21

1
Out of stock

9

O RING

17435-29F00

1
Out of stock

10

BOLT This part replaces 01547-06103.

01547-0610B

1
Out of stock

11

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

12

BOLT (6X30)

09103-06204

3
Out of stock

13

BOLT

09103-06209

1
Out of stock

14

.O-RING (D:2.4,ID:21.8)

09280-22001

2
Out of stock

15

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

16

GEAR, WATER PUMP DRIVEN

17461-29F00

1
Out of stock

17

WASHER

09181-10158

1
Out of stock

18

PIN

09261-04001

1
Out of stock
