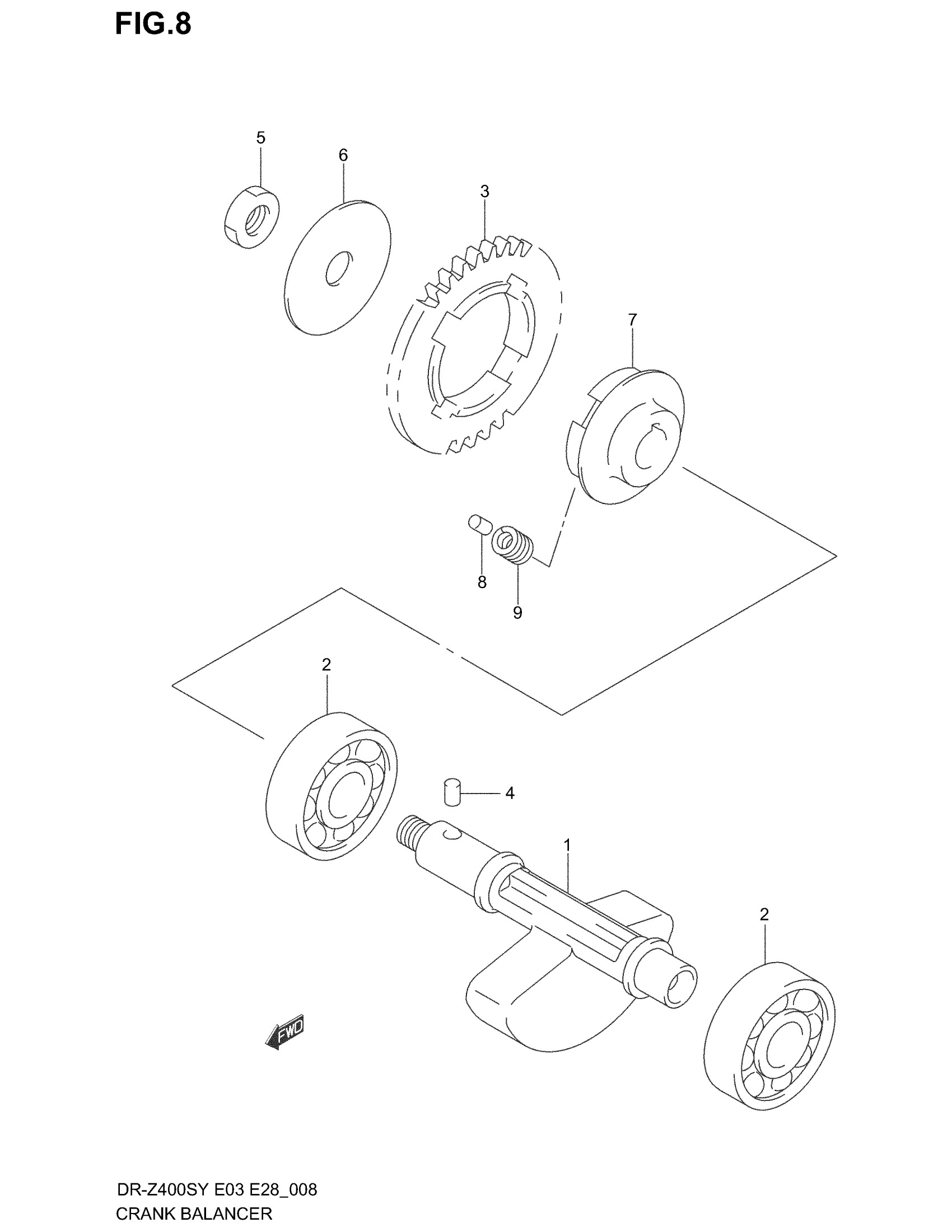

Find the part on the Crank Balancer diagram for your 2004 Suzuki DR-Z400S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki DR-Z400S Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12651-29F00

1
Out of stock

2

BEARING

09262-15030

2
Out of stock

3

GEAR, DRIVEN This part replaces 12666-29F10.

12666-29F11

1
Out of stock

4

PIN, INNER RACE

09261-05005

1
Out of stock

5

NUT (M12)

09140-12038

1
Out of stock

6

WASHER (12.2X47X1.6)

09181-12009

1
Out of stock

7

RACE, DRIVEN GEAR INNER This part replaces 12669-29F00.

12669-29F01

1
Out of stock

8

PIN, DRIVEN GEAR

09202-04017

2
Out of stock

9

SPRING, DRIVEN GEAR

09440-09031

4
Out of stock
