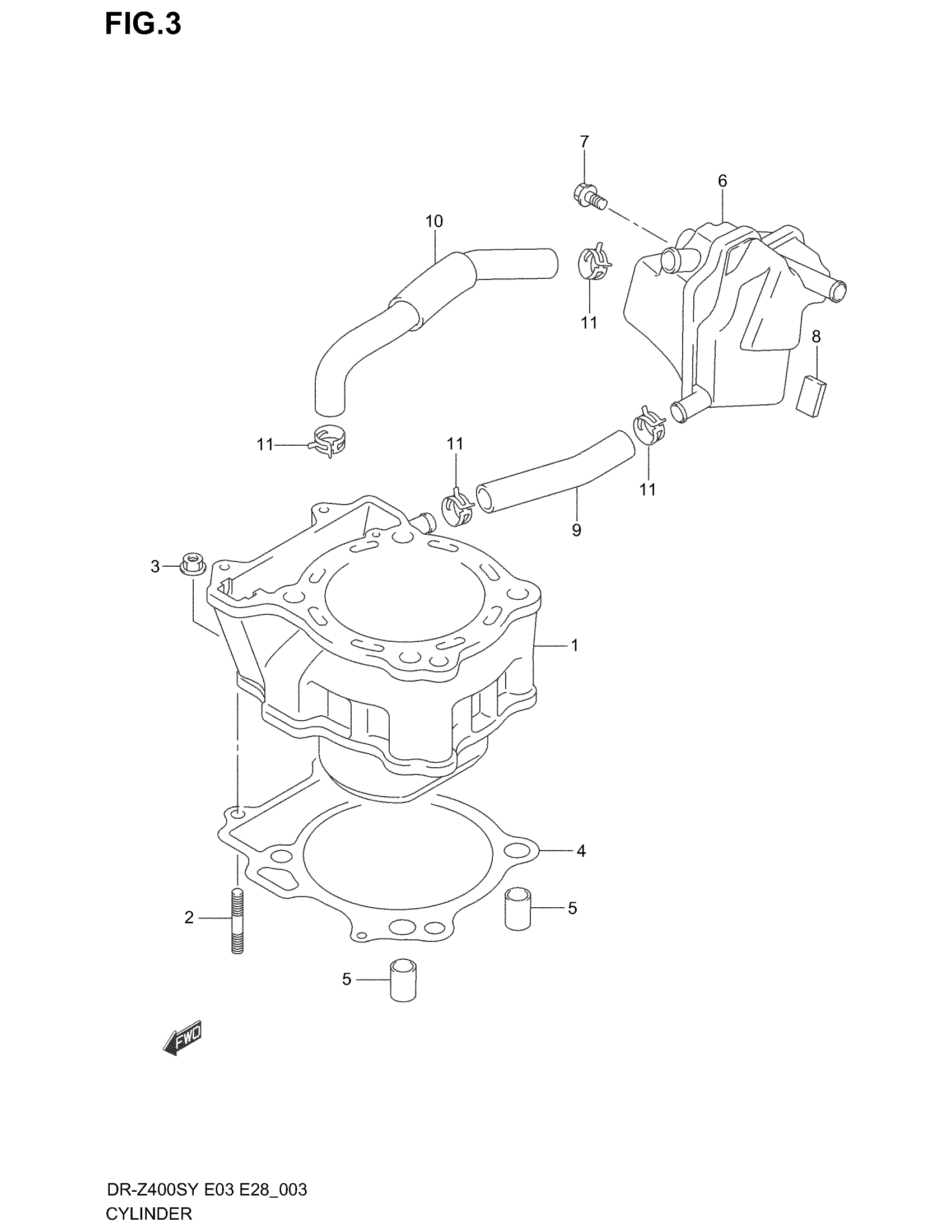

Suzuki DR-Z400S (2004) CYLINDER Diagram

#

Description
Price

1

CYLINDER | MODEL Y/K1/K2 This part replaces 11210-29F11-0F0.

11210-29F20-0F0

$1,061.57

1

CYLINDER | MODEL K3/K4

11210-29F20-0F0

$1,061.57

2

STUD BOLT This part replaces 01421-06253.

01421-0625A

$2.00

3

NUT This part replaces 08316-10063.

08316-1006B

$2.50

4

GASKET, CYLINDER | MODEL Y This part replaces 11241-29F10.

11241-29F11

$21.39

4

GASKET, CYLINDER | MODEL K1/K2/K3/K4

11241-29F11

$21.39

5

PIN

04211-13189

$2.19

6

TANK, OIL RETURN

11330-29F00

$43.40

7

BOLT This part replaces 01547-06103.

01547-0610B

$2.47

8

CUSHION

33651-37000

$4.09

9

HOSE, BREATHER

11332-29F00

$10.38

10

HOSE, BREATHER

11333-29F00

$20.24

11

CLIP

09401-15404

$2.24
