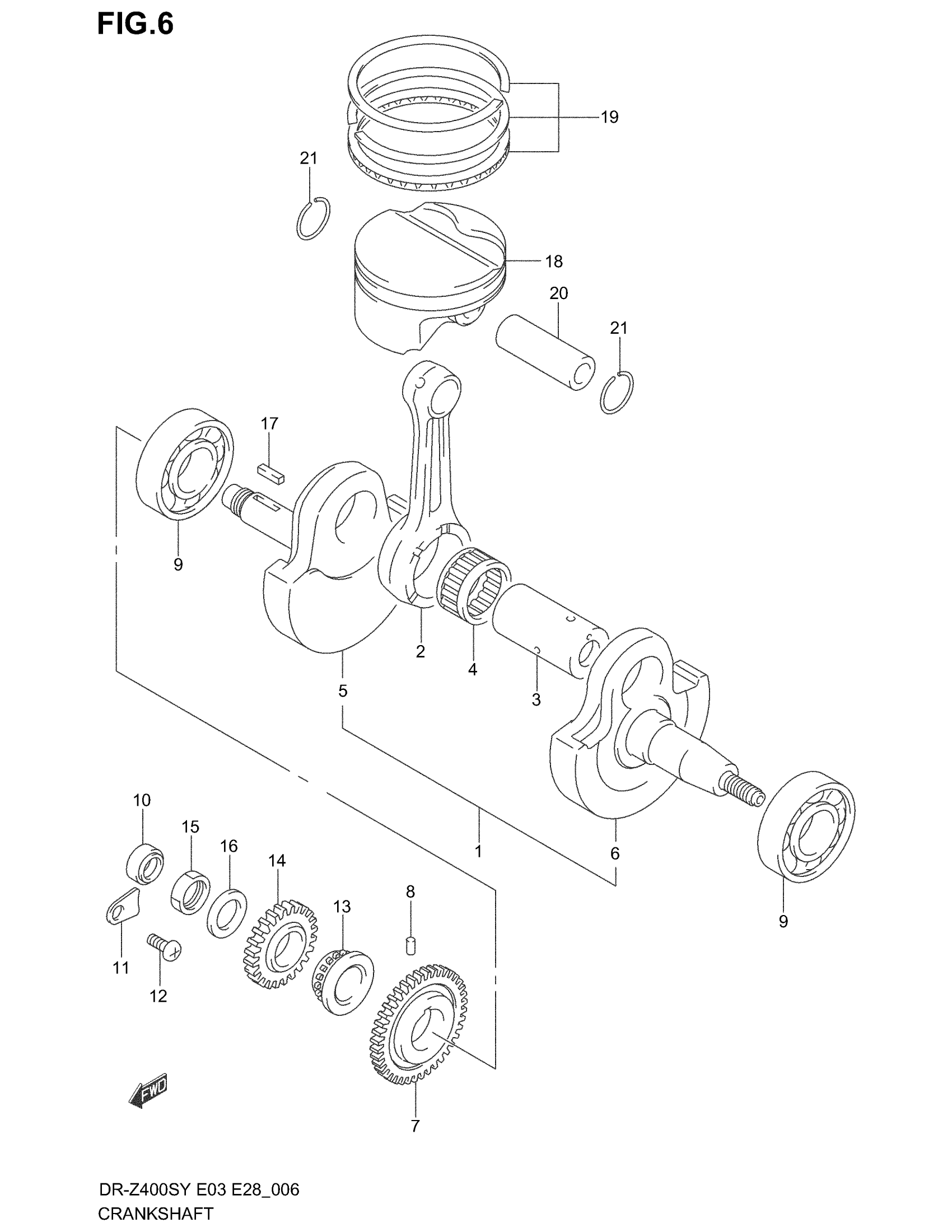

Suzuki DR-Z400S (2004) CRANKSHAFT Diagram

CRANKSHAFT ASSY | Includes Item(s) 2 - 6

12200-29F11

Unavailable

.CONNECTING ROD This part replaces 12160-29F01-0B0.

12160-29F10-0B0

$235.72

.PIN, CRANK This part replaces 12210-29F10.

12210-29F20

$112.45

.BEARING (35X43X22) This part replaces 09263-35035-0B0.

09263-35047-0B0

$116.53

CRANKSHAFT, RH This part replaces 12221-29F20.

12221-29F30

Unavailable

CRANKSHAFT, LH This part replaces 12261-29F10.

12261-07G00

Unavailable

GEAR, BALANCER DRIVE

12661-29F00

$162.25

PIN

09261-05005

$1.43

BEARING

09262-30100

$95.25

OIL SEAL, RH (14X24X6)

09282-14003

$7.44

RETAINER, OIL SEAL RH

24742-18A00

$4.92

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

SPROCKET, CAM CHAIN DRIVE

12731-29F00

Unavailable

GEAR, PRIMARY DRIVE This part replaces 21111-29F00.

21111-29F10

$91.67

NUT

09140-18012

$7.55

LOCK WASHER (ID:18.3) | MODEL Y/K1 This part replaces 09164-18007.

09164-18001

$2.97

LOCK WASHER | MODEL K2/K3/K4

09164-18008

$3.84

KEY, GEAR

09421-05002

$3.57

PISTON

12111-29F00-0F0

$146.60

RING SET, PISTON

12140-29F00

$52.90

PIN, PISTON

12151-24F10

$18.17

CIRCLIP

09381-20004

$1.64
