2007 Suzuki DR-Z400E Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 2007 Suzuki DR-Z400E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

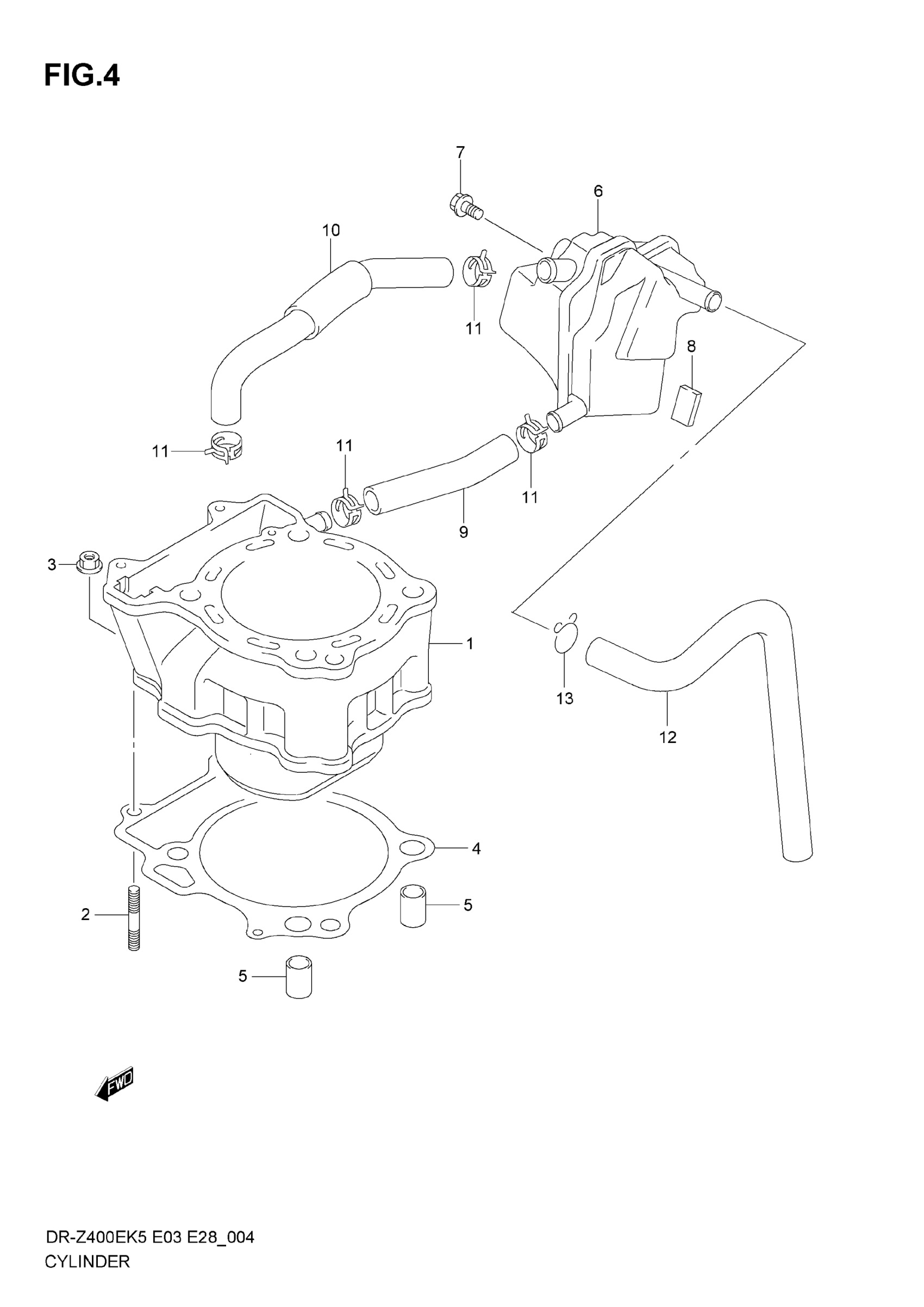

2007 Suzuki DR-Z400E Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11210-29F20-0F0

1
Out of stock

2

STUD BOLT This part replaces 01421-06253.

01421-0625A

2
Out of stock

3

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

4

GASKET, CYLINDER | E3,E28

11241-29F00

1
Out of stock

4

GASKET, CYLINDER | E33

11241-29F11

1
Out of stock

5

PIN

04211-13189

2
Out of stock

6

TANK, OIL RETURN

11330-29F00

1
Out of stock

7

BOLT | MODEL K5/K6 This part replaces 01550-06103.

01550-0610A

1
Out of stock

7

BOLT | MODEL K7

01550-0610A

1
Out of stock

8

CUSHION

33651-37000

1
Out of stock

9

HOSE, BREATHER

11332-29F00

1
Out of stock

10

HOSE, BREATHER

11333-29F00

1
Out of stock

11

CLIP

09401-15404

4
Out of stock

12

HOSE, BREATHER | E3,E28

11334-29F00

1
Out of stock

13

CLIP | E3,E28

09401-15101

1
Out of stock
