2007 Suzuki DR-Z400E Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2007 Suzuki DR-Z400E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

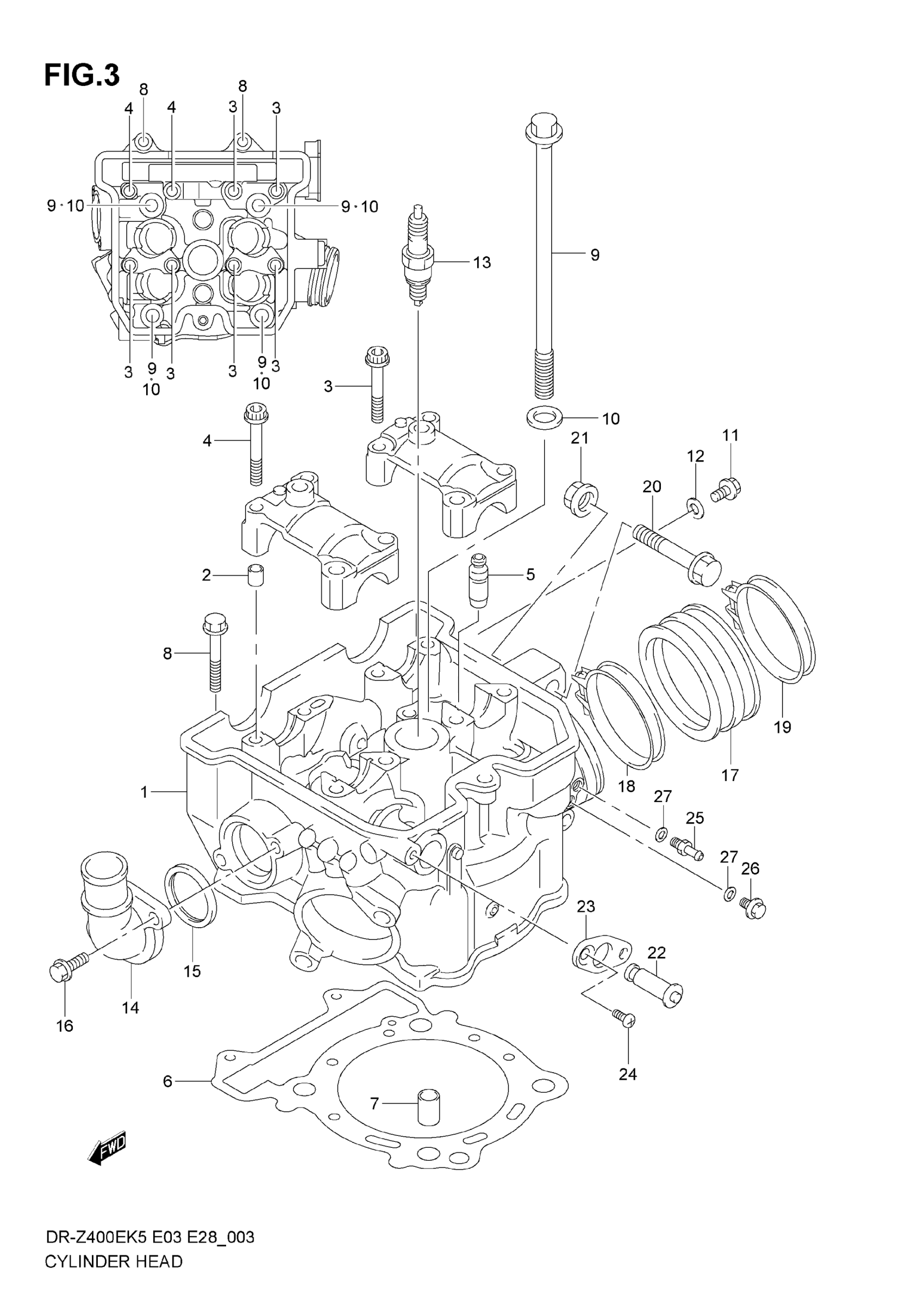

2007 Suzuki DR-Z400E Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,242.87

In stock

2

PIN

09206-08001

4
Out of stock

3

6

$3.26

In stock

4

2

$3.33

In stock

5

4

$32.91

In stock

6

GASKET, CYLINDER HEAD

11141-29F01

1

$41.35

In stock

7

PIN (L:18)

04211-13189

2
Out of stock

8

BOLT (6X39)

09103-06504

2

$2.39

In stock

9

BOLT (10X175)

09103-10276

4

$15.50

In stock

10

WASHER (10.5X19X2)

09160-10082

4
Out of stock

11

BOLT This part replaces 01550-06103.

01550-0610A

1
Out of stock

12

GASKET

09168-06023

1
Out of stock

13

SPARK PLUG (NGK,CR8E)

09482-00456

1

$6.43

In stock

13

1

$6.03

In stock

13

1

$6.17

In stock

13

1

$6.17

In stock

13

1

$6.17

In stock

13

1

$5.91

In stock

13

1

$6.03

In stock

13

1

$12.50

In stock

14

COVER, THERMOSTAT

17661-29F00

1

$46.25

In stock

15

1

$10.58

In stock

16

BOLT This part replaces 01547-06163.

01547-0616B

2
Out of stock

17

1

$14.87

In stock

17

1

$13.70

In stock

18

CLAMP, HEAD

09402-58208

1

$5.20

In stock

19

CLAMP, CARB | E3,E28

09402-58208

1

$5.20

In stock

19

CLAMP, CARB | E33

09402-52208

1
Out of stock

20

BOLT (10X50)

09103-10235

1

$6.15

In stock

21

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

1
Out of stock

22

1

$23.73

In stock

23

1

$7.75

In stock

24

1

$1.49

In stock

25

1

$11.39

In stock

26

2

$4.48

In stock

27

GASKET (8.2X14X1)

09168-08016

2
Out of stock
