Description

Price

1

CHAIN, CAMSHAFT DRIVE

12760-29F01

$89.00

2

GUIDE, CAM CHAIN NO.1

12771-29F00

$30.63

3

GUIDE, CAM CHAIN NO.2

12782-29F00

$26.82

4

TENSIONER CAM CHAIN This part replaces 12811-29F10.

12811-29F11

$45.80

5

BOLT,CAM CHAIN TENSIONER

12812-35C00

$8.22

6

WASHER

08211-06181

$1.79

7

ADJUSTER ASSY, TENSIONER | Includes Item(s) 8 - 10

12830-29F10

$128.16

8

GASKET

12837-24F10

$4.37

9

PLUG

12833-05A00

$15.33

10

SPRING

12831-39F00

$5.43

11

.GASKET,TENSIONER ADJUSTER

12837-24A10

$2.97

12

BOLT This part replaces 07130-06253.

07130-0625B

$2.80

13

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

$4.53

14

SCREW

09126-06011

$2.01

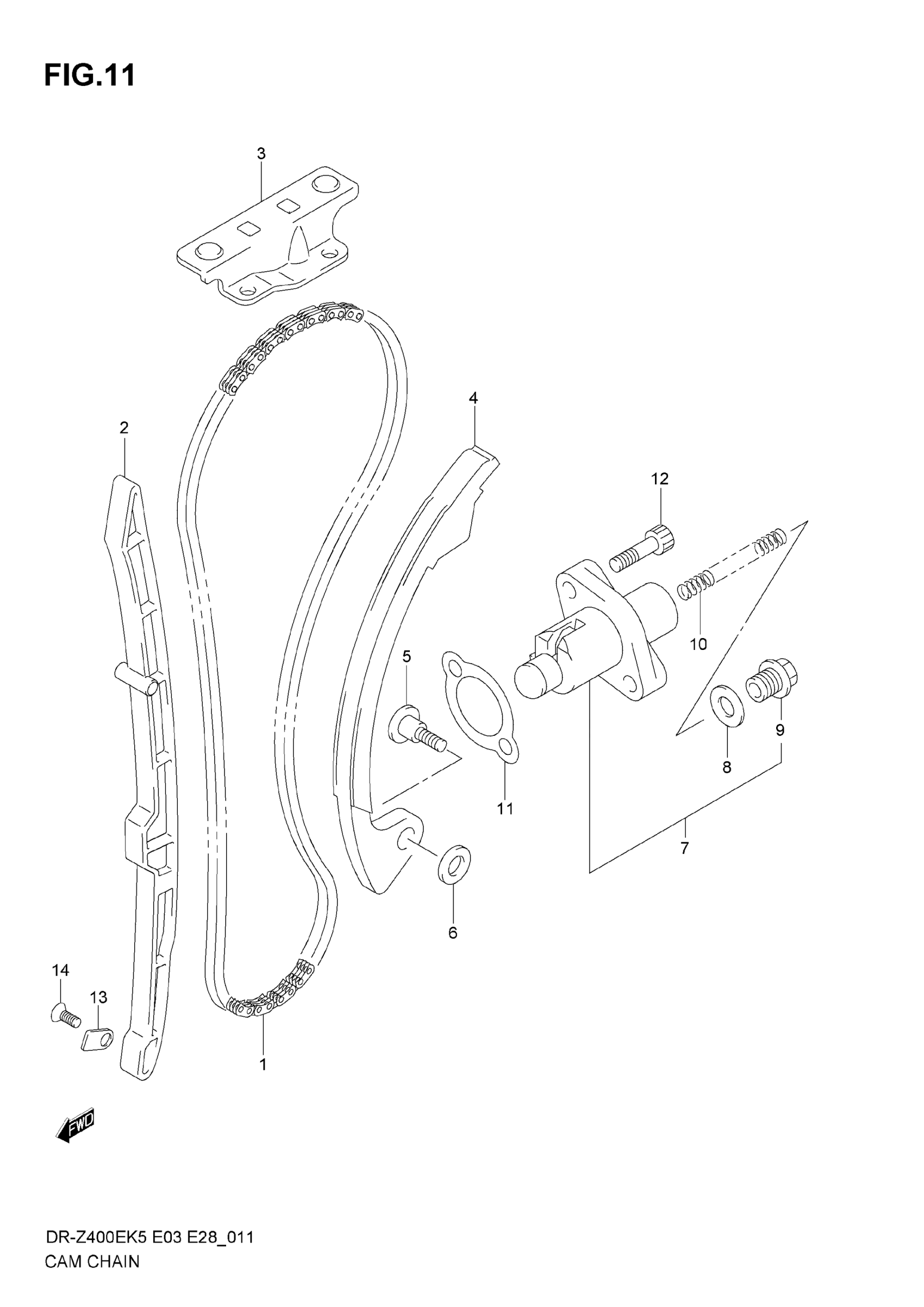

Suzuki DR-Z400E (2007) CAM CHAIN Diagram
