2007 Suzuki DR-Z400E Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2007 Suzuki DR-Z400E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

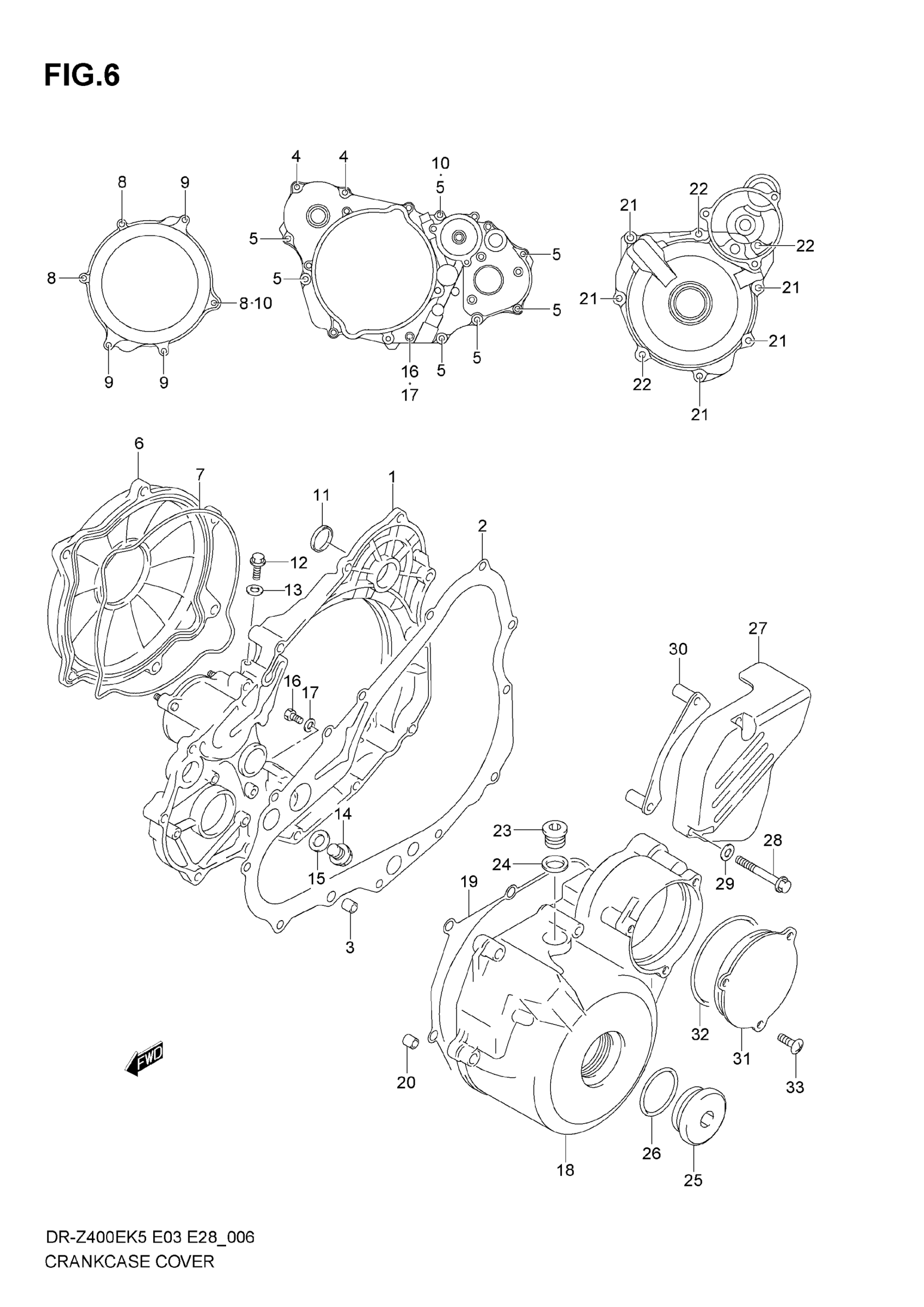

2007 Suzuki DR-Z400E Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH INNER

11341-29F50

1
Out of stock

2

GASKET, CLUTCH COVER

11482-29F00

1
Out of stock

3

PIN

04211-09149

2
Out of stock

4

..BOLT | MODEL K5/K6 This part replaces 01547-06203.

01547-0620B

2
Out of stock

4

BOLT | MODEL K7

01547-0620A

2
Out of stock

5

BOLT, FINAL GEAR CASE | MODEL K5/K6 This part replaces 01547-06303.

01547-0630B

7
Out of stock

5

BOLT | MODEL K7

01547-0630A

7
Out of stock

6

COVER, CLUTCH OUTER

11371-29F50

1
Out of stock

7

O RING, CLUTCH OUTER COVER

11484-29F00

1
Out of stock

8

..BOLT | MODEL K5/K6 This part replaces 01547-06203.

01547-0620B

3
Out of stock

8

BOLT, OUTER COVER | MODEL K7

01547-0620A

3
Out of stock

9

BOLT | MODEL K5/K6 This part replaces 01547-06553.

01547-0655B

3
Out of stock

9

BOLT, OUTER COVER | MODEL K7

01547-0655A

3
Out of stock

10

GASKET

09168-06023

2
Out of stock

11

PLUG, CLUTCH COVER KICK

11342-15D00

1
Out of stock

12

BOLT | MODEL K5/K6 This part replaces 01547-06123.

01547-0612B

1
Out of stock

12

PLUG, OIL GALLERY | MODEL K7

01547-0612A

1
Out of stock

13

GASKET

09168-06023

1
Out of stock

14

PLUG, OIL GALLERY (12X10)

09247-12006

1
Out of stock

15

GASKET (12.1X16.2X1.2)

09168-12002

1
Out of stock

16

BOLT | MODEL K5/K6 This part replaces 01550-06103.

01550-0610A

1
Out of stock

16

BOLT, OIL LEVEL | MODEL K7

01550-0610A

1
Out of stock

17

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

18

COVER, MAGNETO

11351-29F60

1
Out of stock

19

GASKET, MAGNETO COVER

11483-29F00

1
Out of stock

20

PIN

04211-09149

2
Out of stock

21

BOLT, FINAL GEAR CASE | MODEL K5/K6 This part replaces 01547-06303.

01547-0630B

5
Out of stock

21

BOLT | MODEL K7

01547-0630A

5
Out of stock

22

BOLT | MODEL K5/K6 This part replaces 01547-06403.

01547-0640B

3
Out of stock

22

BOLT | MODEL K7

01547-0640A

3
Out of stock

23

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

24

GASKET (13.8X18.8X0.4)

09168-14002

1
Out of stock

25

PLUG, CRANK HOLE

09259-36016-20H

1
Out of stock

26

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

27

COVER, ENGINE SPROCKET

11360-29F50

1
Out of stock

28

BOLT | MODEL K5/K6 This part replaces 01547-06503.

01547-0650B

2
Out of stock

28

BOLT | MODEL K7

01547-0650A

2
Out of stock

29

WASHER (6.5X14X2.0)

09160-06126

2
Out of stock

30

PLATE, FRONT CHAIN GUIDE

27640-29F00

1
Out of stock

31

COVER, STARTER IDLE GEAR

11352-29F50

1
Out of stock

32

O RING (D:2.6,ID:69.6)

09280-71004

1
Out of stock

33

SCREW | MODEL K5/K6 This part replaces 02142-06163.

02142-0616A

3
Out of stock

33

SCREW | MODEL K7

02142-0616A

3
Out of stock
