2005 Suzuki DR-Z110 OIL Pump Diagram

← All diagrams

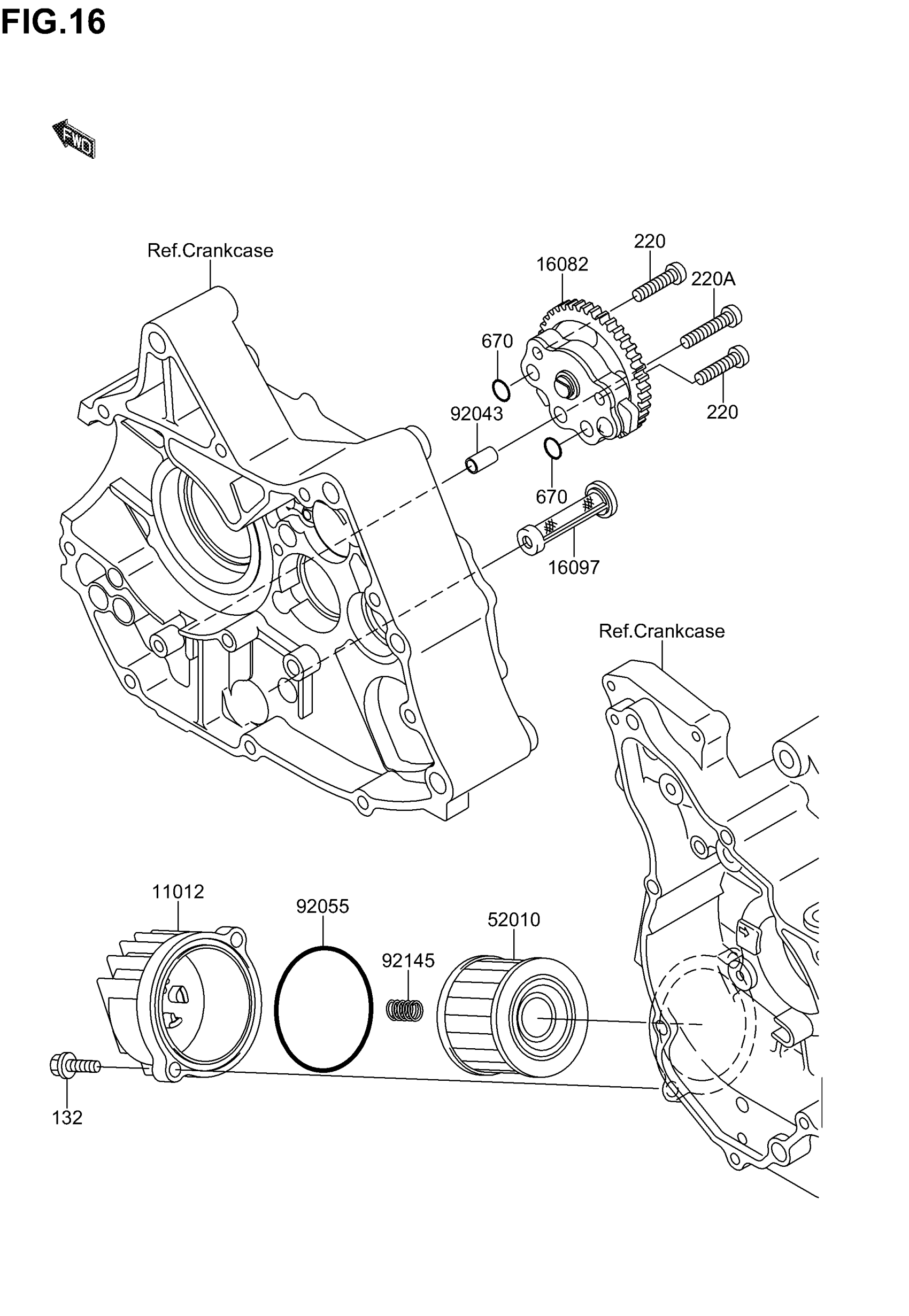

Find the part on the OIL Pump diagram for your 2005 Suzuki DR-Z110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR-Z110 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

K1101-21980

1
Out of stock

16082

PUMP-ASSY-OIL

K1608-21052

1
Out of stock

16097

FILTER-ASSY-OIL

K1609-71071

1
Out of stock

52010

ELEMENT-OIL FILTER

K5201-01053

1
Out of stock

92043

PIN,6.2X8X14

K9204-31263

1
Out of stock

92055

RING-O

K9205-53018

1
Out of stock

92145

SPRING

K9214-51091

1
Out of stock

132

BOLT-FLANGED-SM This part replaces KK132-Y0620.

K132B-D0620

2
Out of stock

220

SCREW-PAN-CROS, This part replaces KK220-B0625.

K220A-A0625

2
Out of stock

220A

SCREW-PAN-CROS, This part replaces KK220-B0630.

K220A-A0630

1
Out of stock

670

O RING,10MM

KK670-B1510

2
Out of stock
