2005 Suzuki DR-Z110 Cylinder/piston Diagram

← All diagrams

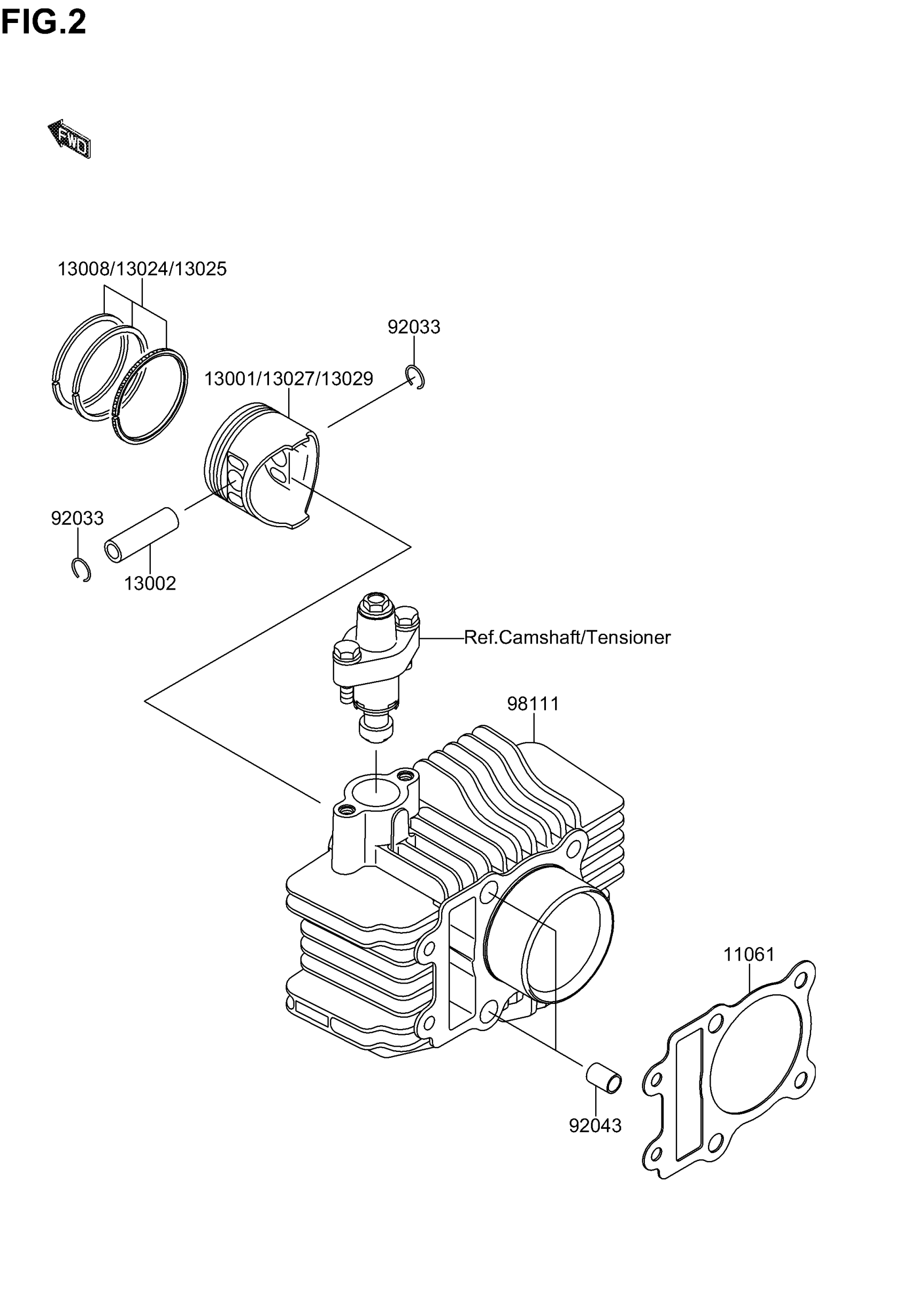

Find the part on the Cylinder/piston diagram for your 2005 Suzuki DR-Z110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR-Z110 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,CYLINDER BASE

K1106-10124

1

$3.05

In stock

13001

PISTON-ENGINE,S This part replaces K1300-11512.

K1300-10754

1
Out of stock

13002

PIN-PISTON This part replaces K1300-21123.

K1300-20031

1
Out of stock

13008

RING-SET-PISTON,STD

K1300-81189

1

$44.75

In stock

13024

RING-SET-PISTON LL,O/S 1.00

K1302-41119

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

K1302-51148

1
Out of stock

13027

1

$80.73

In stock

13029

NO DESCRIPTION AVAILABLE This part replaces K1302-91255.

K1302-90030

1
Out of stock

92033

RING-SNAP

K9203-31072

2

$3.38

In stock

92043

PIN,8.2X10X14

K9204-31264

2

$2.43

In stock

98111

CYLINDER-COMP-ENGINE

K9811-11083

1

$237.43

In stock
