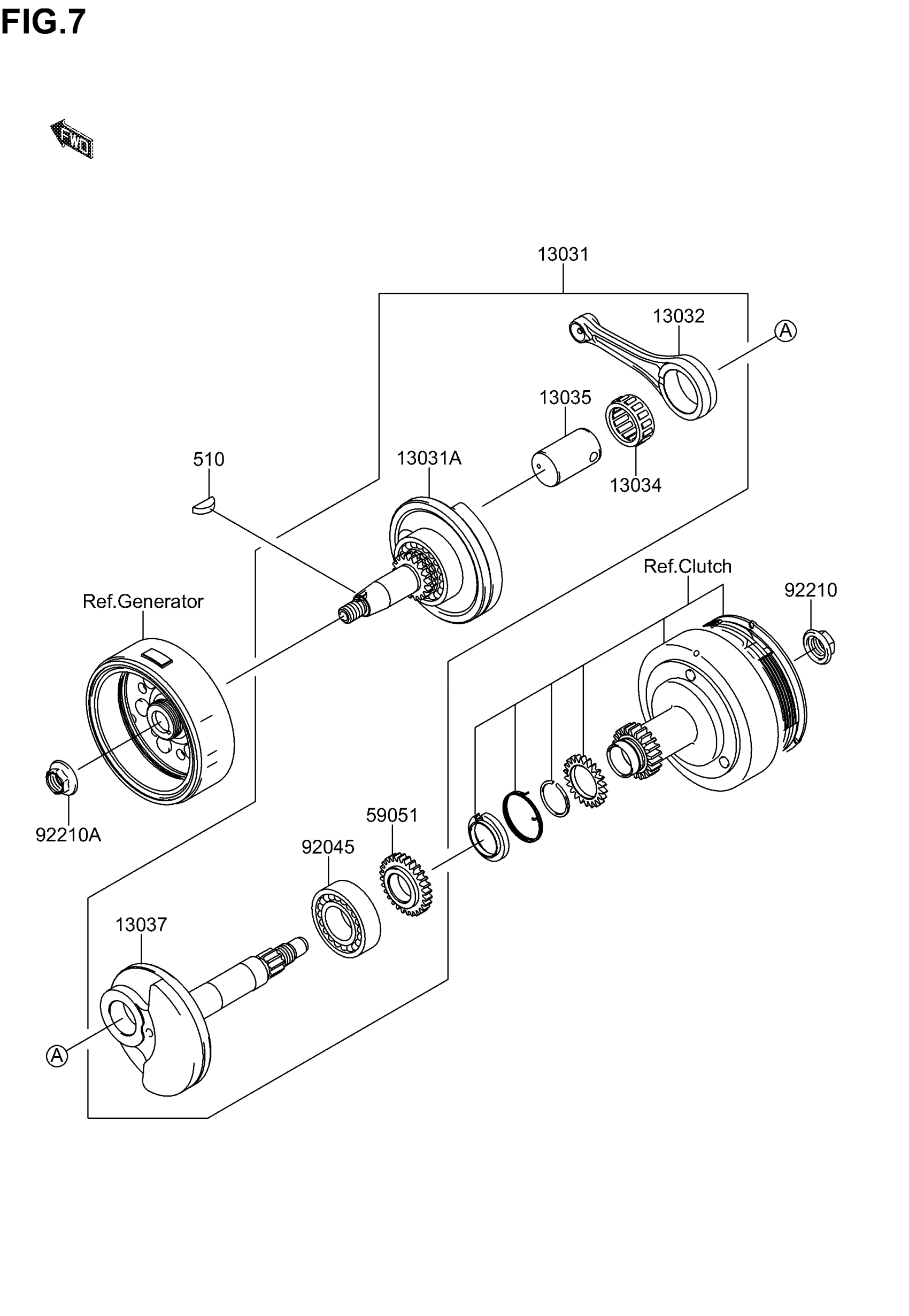

Find the part on the Crankshaft diagram for your 2005 Suzuki DR-Z110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR-Z110 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT COMP This part replaces K1303-10010.

K1303-10863

1
Out of stock

13031A

CRANKSHAFT-COMP,LH

K1303-10011

1
Out of stock

13032

ROD-CONNECTING,NG

K1303-21277

1
Out of stock

13034

NO DESCRIPTION AVAILABLE This part replaces K1303-40001.

K1303-40010

1
Out of stock

13035

PIN-CRANK

K1303-51092

1
Out of stock

13037

NO DESCRIPTION AVAILABLE This part replaces K1303-70008.

K1303-70103

1
Out of stock

59051

GEAR-SPUR

K5905-11402

1
Out of stock

92045

BEARING-BALL

K9204-51293

1
Out of stock

92210

NUT,14MM

K9221-01163

1
Out of stock

92210A

NUT,FLANGED,12MM

K9221-01375

1
Out of stock

510

KEY-WOODRUFF

KK510-A3200

1
Out of stock
