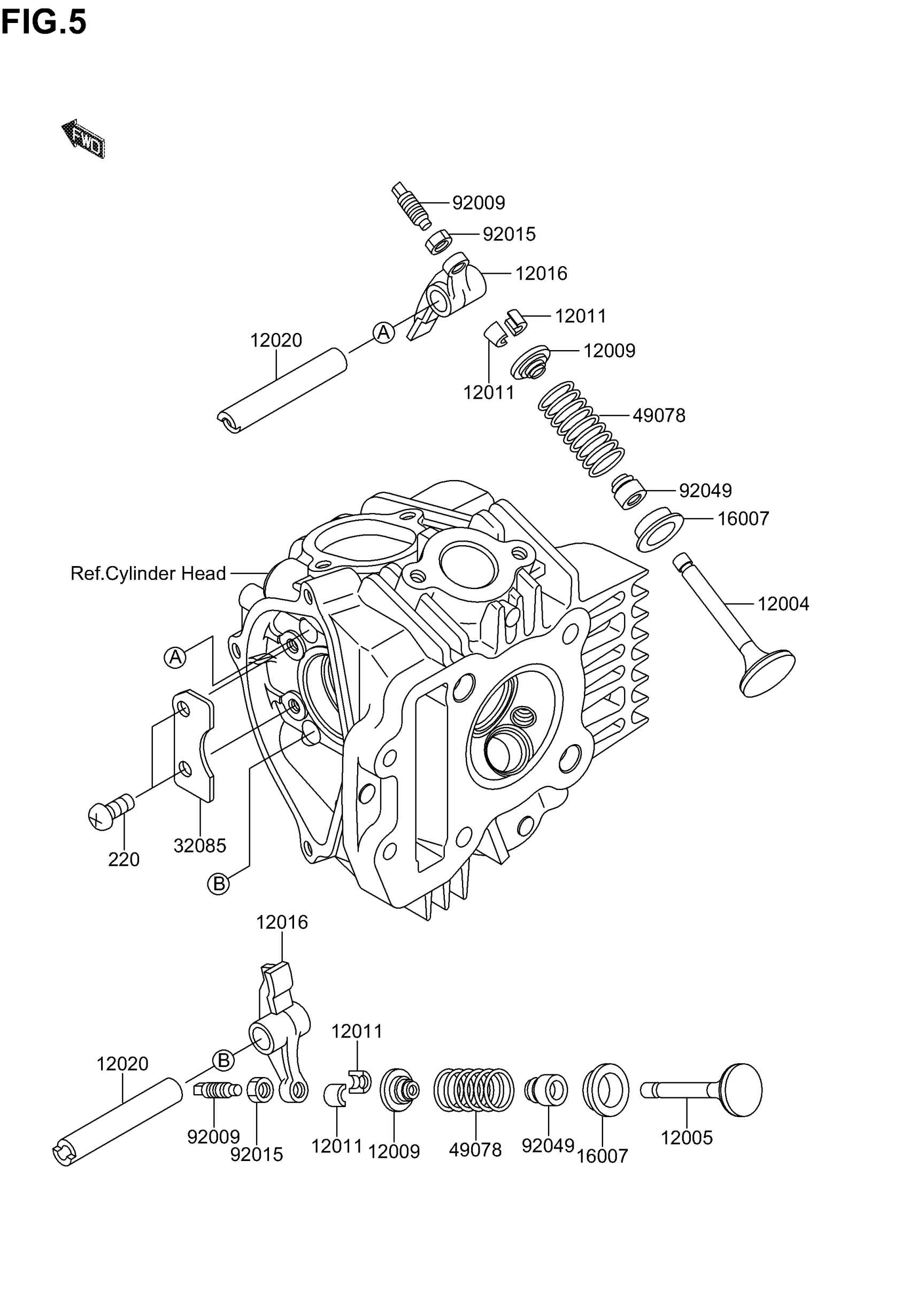

Suzuki DR-Z110 (2005) VALVE Diagram

#

Description
Price

12004

VALVE,INTAKE This part replaces K1200-41158.

K1200-40710

$30.93

12005

VALVE,EXHAUST This part replaces K1200-51331.

K1200-50713

$18.13

12009

RETAINER-VALVE SPRING

K1200-91073

$9.92

12011

COLLET

K1201-11053

$4.02

12016

ARM-ROCKER

K1201-60001

Unavailable

12020

NO DESCRIPTION AVAILABLE This part replaces K1202-01073.

K1202-00010

Unavailable

16007

SEAT-SPRING,VALVE

K1600-71187

Unavailable

32085

STOPPER

K3208-51428

Unavailable

49078

SPRING-ENGINE VALVE

K4907-81151

Unavailable

92009

SCREW,VALVE ADJUST

K9200-91109

Unavailable

92015

NUT,VALVE ADJUST LOCK

K9201-51137

Unavailable

92049

SEAL-OIL

K9204-91349

$11.43

220

SCREW-PAN-CROS, This part replaces KK220-B0614.

K220A-A0614

Unavailable
