2005 Suzuki DR-Z110 Cylinder Head Diagram

← All diagrams

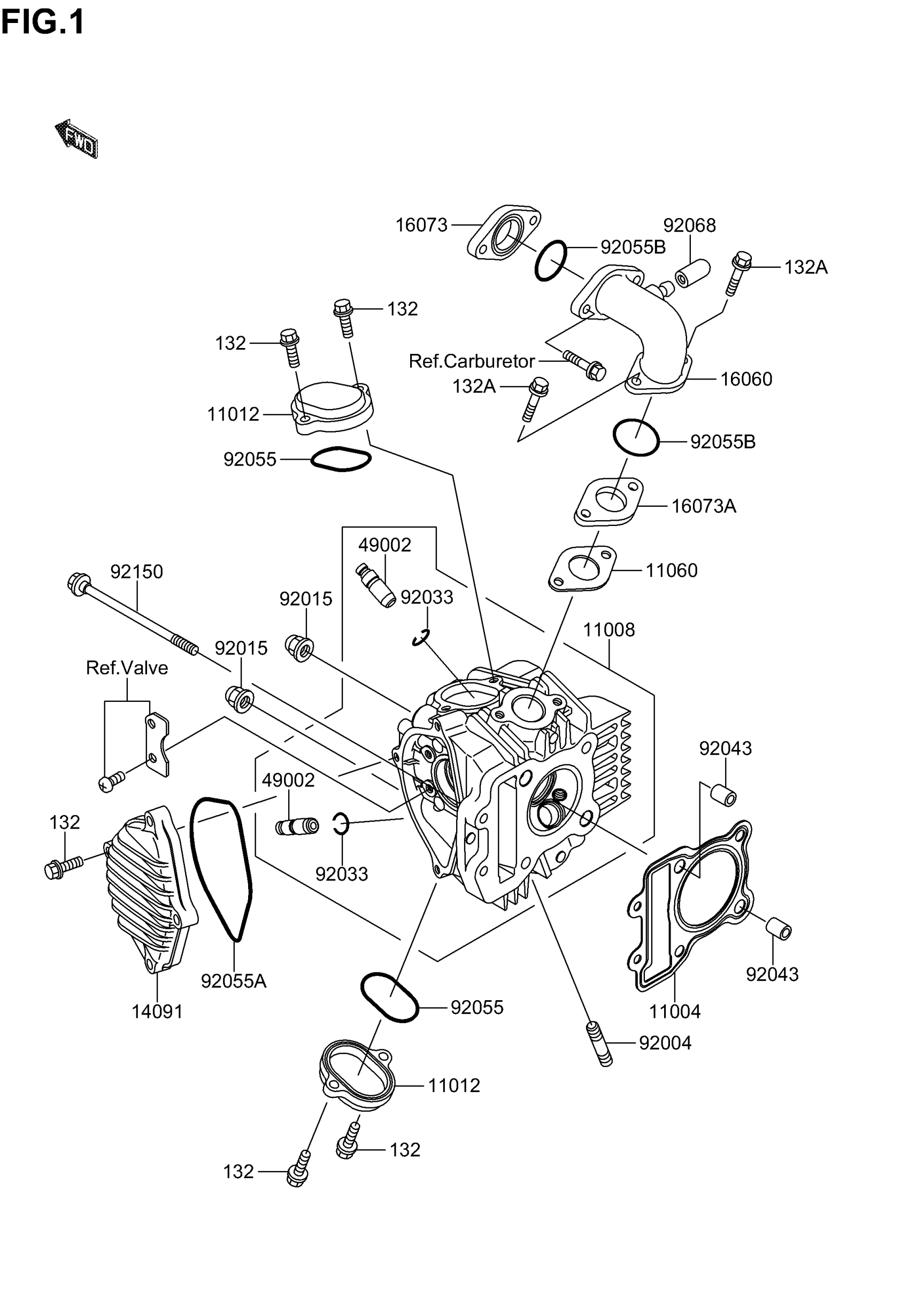

Find the part on the Cylinder Head diagram for your 2005 Suzuki DR-Z110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki DR-Z110 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

K1100-41338

1

$12.85

In stock

11008

HEAD-COMP-CYLINDER

K1100-81431

1
Out of stock

11012

NO DESCRIPTION AVAILABLE This part replaces K1101-21303.

K1106-51177

2
Out of stock

11060

GASKET,INTAKE PIPE

K1106-01753

1

$2.23

In stock

14091

COVER,CAMSHAFT

K1409-11447

1
Out of stock

16060

PIPE-INTAKE

K1606-01079

1
Out of stock

16073

INSULATOR,CARBURETOR

K1607-31102

1
Out of stock

16073A

INSULATOR,HEAD

K1607-31108

1
Out of stock

49002

GUIDE-VALVE This part replaces K4900-21130.

K4900-20033

1
Out of stock

92004

2

$5.02

In stock

92015

NUT,CAP,8MM

K9201-51151

4
Out of stock

92033

RING-SNAP

K9203-31247

2
Out of stock

92043

PIN,8.2X10X14

K9204-31264

2

$2.43

In stock

92055

RING-O,ADJUST CAP

K9205-51231

2
Out of stock

92055A

RING-O,91X2.5

K9205-51527

1

$11.50

In stock

92055B

RING-O,25.5X2.0

K9205-51528

2

$7.22

In stock

92068

PLUG,12X25

KK920-68006

1

$3.77

In stock

92150

BOLT,6X106

K9215-01761

2
Out of stock

132

8

$1.93

In stock

132A

2

$2.23

In stock
