2024 Suzuki DL800DERCM4 Rear View Mirror Diagram

← All diagrams

Find the part on the Rear View Mirror diagram for your 2024 Suzuki DL800DERCM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

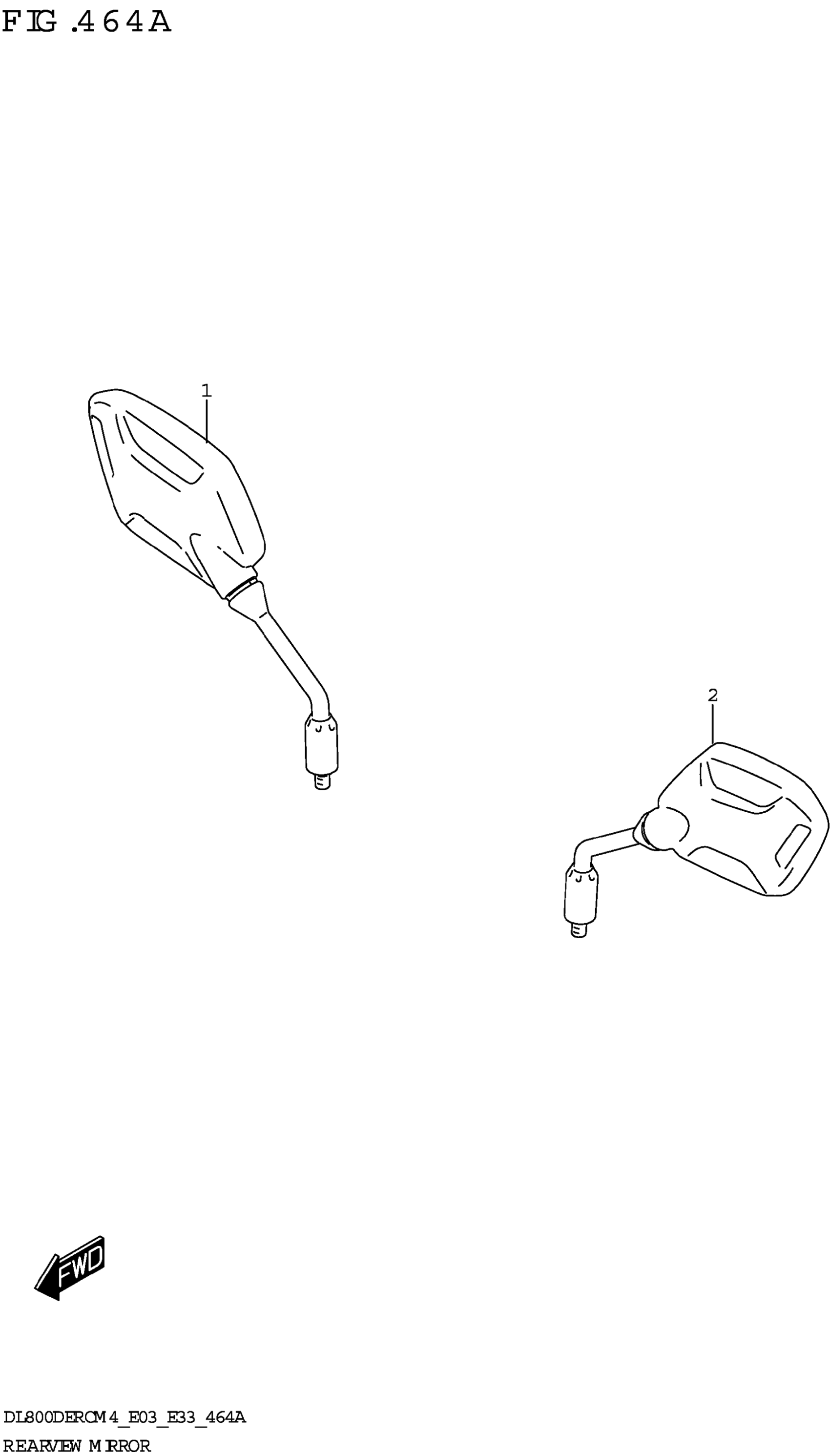

2024 Suzuki DL800DERCM4 Rear View Mirror Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MIRROR ASSY,REAR VIEW,R

56500-06L30

1
Out of stock

2

MIRROR ASSY,REAR VIEW,L

56600-06L30

1
Out of stock
