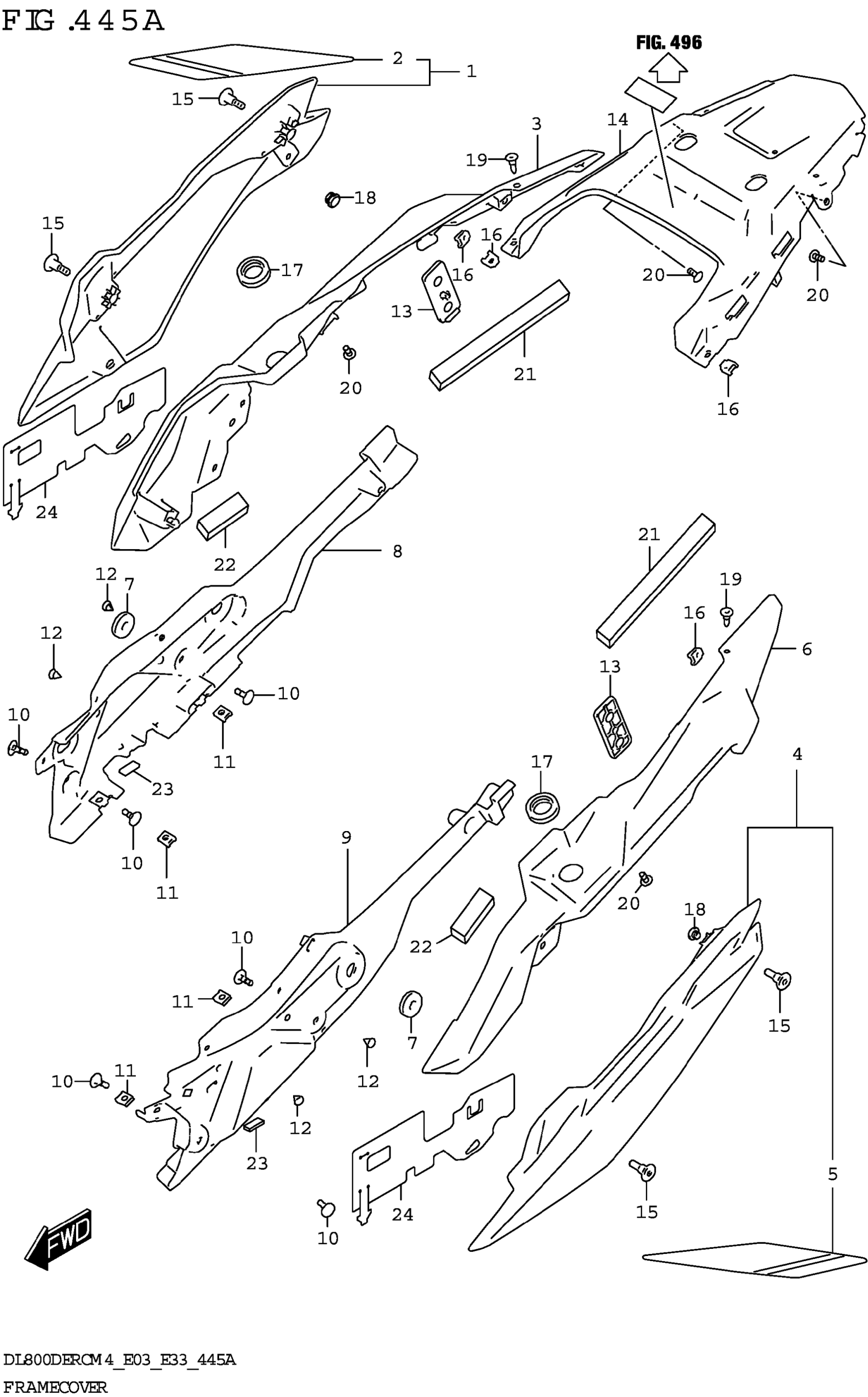

Suzuki DL800DERCM4 (2024) FRAME COVER Diagram

#

Description
Price

1-1

COVER,FRAME SIDE,R (BLUE) | BODY COLOR:YU1

47410-25L00-Y2W

$33.10

1-2

COVER,FRAME SIDE,R | BODY COLOR:QU2

47410-25L00-CUX

$33.23

1-3

COVER,FRAME SIDE,R (BLACK) | BODY COLOR:QVP

47410-25L00-CVX

$33.23

2-1

.TAPE,FRAME COVER SIDE,R | BODY COLOR:YU1

68135-25L00-CJ3

$11.62

2-2

.TAPE,FRAME COVER SIDE,R | BODY COLOR:QU2

68135-25L00-CKB

$11.32

2-3

.TAPE,FRAME COVER SIDE,R | BODY COLOR:QVP

68135-25L00-CKC

$11.32

3-1

COVER,FRAME REAR,R (YELLOW) | BODY COLOR:YU1

47411-25LA0-YU1

$58.52

3-2

COVER,FRAME REAR,R (WHITE) | BODY COLOR:QU2

47411-25LA0-QU2

$57.10

3-3

COVER,FRAME REAR,R (GREEN) | BODY COLOR:QVP

47411-25LA0-QVP

$57.10

4-1

COVER,FRAME SIDE,L (BLUE) | BODY COLOR:YU1

47510-25L00-Y2W

$33.10

4-2

COVER,FRAME SIDE,L | BODY COLOR:QU2

47510-25L00-CUX

$33.23

4-3

COVER,FRAME SIDE,L (BLACK) | BODY COLOR:QVP

47510-25L00-CVX

$33.23

5-1

.TAPE,FRAME COVER SIDE,L | BODY COLOR:YU1

68145-25L00-CJ3

$11.62

5-2

.TAPE,FRAME COVER SIDE,L | BODY COLOR:QU2

68145-25L00-CKB

$11.32

5-3

.TAPE,FRAME COVER SIDE,L | BODY COLOR:QVP

68145-25L00-CKC

$11.32

6-1

COVER,FRAME REAR,L (YELLOW) | BODY COLOR:YU1

47511-25LA0-YU1

$58.52

6-2

COVER,FRAME REAR,L (WHITE) | BODY COLOR:QU2

47511-25LA0-QU2

$57.10

6-3

COVER,FRAME REAR,L (GREEN) | BODY COLOR:QVP

47511-25LA0-QVP

$57.10

7

CUSHION (8x26x7)

09320-08018

$2.80

8

COVER,FRAME INNER,R

47311-25LA0

$10.97

9

COVER,FRAME INNER,L

47321-25LA0

$10.97

10

CLIP

94479-35F00

$5.14

11

NUT (M5)

09148-05038

$1.97

12

PLUG (OD:10)

09250-06017

$2.74

13

SPACER,FRAME COVER

47510-28K00

$20.00

14-1

COVER,FRAME REAR CTR (BLUE) | BODY COLOR:YU1,QU2

47711-25LA0-Y2W

$36.85

14-2

COVER,FRAME REAR CTR (YELLOW) | BODY COLOR:QVP

47711-25LA0-YU1

$40.32

15

SCREW

47913-06L00

$1.80

16

NUT (M5)

09148-05045

$2.51

17

CUSHION (20X32X9)

09320-20011

$2.71

18

CUSHION

09321-05023

$2.20

19

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

20

SCREW

03541-0512A

$1.37

21

CUSHION,FRAME COVER REAR

47213-25LA0

$1.67

22

CUSHION,FRAME COVER REAR

47215-25LA0

$1.08

23

CUSHION,CTR PANEL UPR

94413-08F00

$5.02

24

SHIELD,FRAME COVER

47166-25LA0

$12.38
