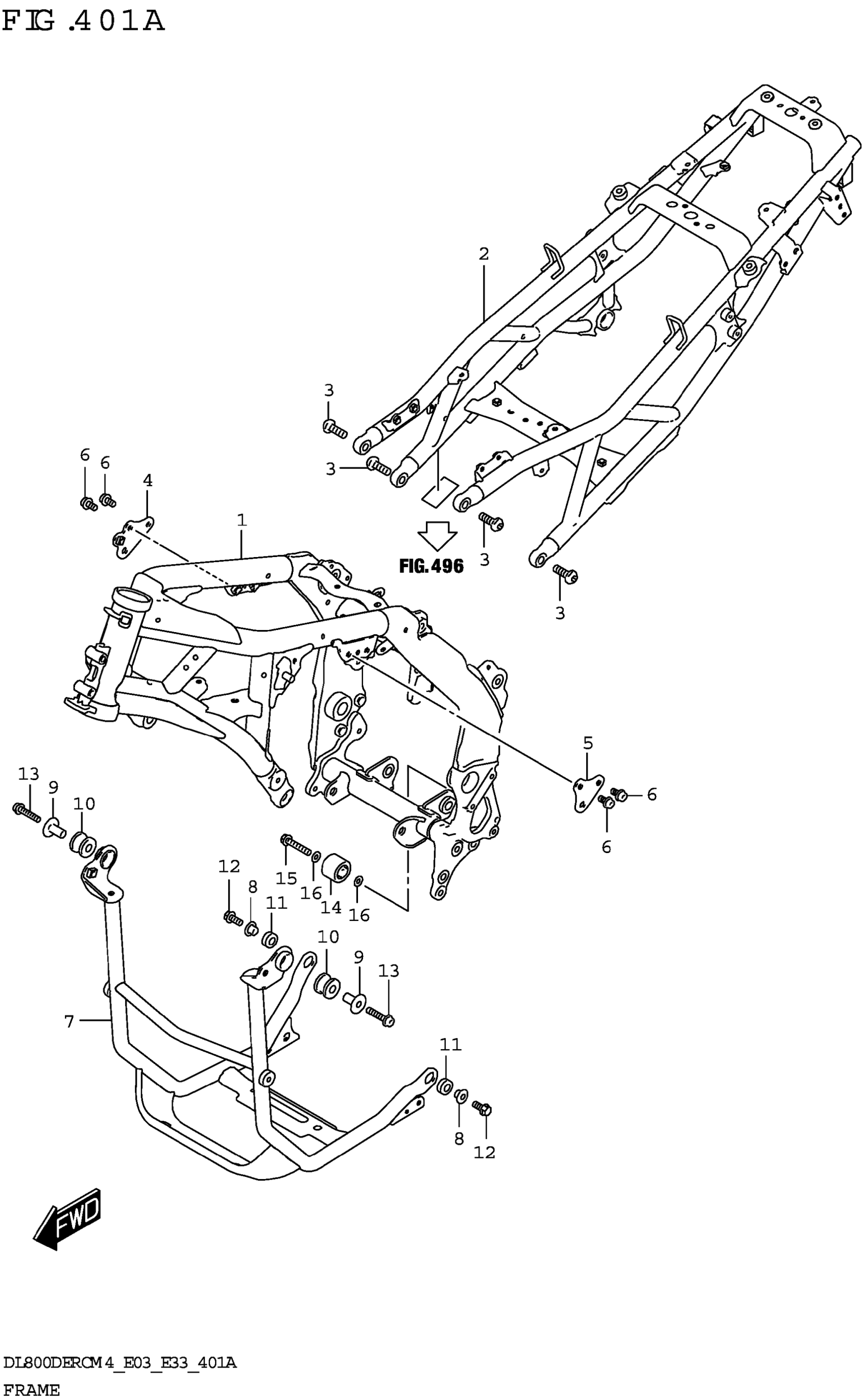

Suzuki DL800DERCM4 (2024) FRAME Diagram

#

Description
Price

1

FRAME

41100-25LA0

$1,942.17

2

RAIL,SEAT (BLACK)

41200-25LA0-YAP

$804.78

3

BOLT

09106-10100

$3.62

4

PLATE,ENG MTG,R

41920-25L00

$9.60

5

PLATE,ENG MTG,L

41922-25L00

$8.77

6

BOLT

07120-0816B

Unavailable

7

BRACKET,UNDER COVER This part replaces 41160-25LB0.

41160-25LB2

$580.30

8

WASHER

09169-08054

$2.98

9

SPACER (8.6X12X24.2)

09180-08152

$5.26

10

CUSHION (12X30X24)

09320-12048

$4.62

11

CUSHION (12X22X9.5)

09320-12068

$3.25

12

BOLT

01550-0820B

$2.80

13

BOLT

07120-0840B

$3.50

14

ROLLER,CHAIN

43910-37F00

$77.40

15

BOLT (8X45)

09103-08207

$2.59

16

SHIM (8X16X1)

09181-08167

$1.98
