Description

Price

1

COWLING,BODY

94411-25LA0

$176.53

2-1

COWLING,BODY LOWER (BLUE) | BODY COLOR:YU1,QU2

94413-25LA0-Y2W

$46.47

2-2

COWLING,BODY LOWER (YELLOW) | BODY COLOR:QVP

94413-25LA0-YU1

$46.47

3

COWLING,BODY INNER

94414-25LA0

$14.38

4

CUSHION,COWLING BODY

94416-25LA0

$2.10

5

BRACE,COWLING

94510-25LA0

$254.25

6

PANEL,METER

94631-25LA0

$84.05

7

SCREW (5X18)

09139-05094

$3.95

8

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

9

CLIP

09409-08012

$2.54

10

CLIP (10.5X14.3)

09409-08326

$2.45

11

SCREW

03541-0512A

$1.37

12

BOLT

01550-0840A

$2.80

13

NUT

08313-2008A

$2.50

14

NUT (M5)

09148-05045

$2.51

15

EMBLEM,S

68281-47HA0

$7.11

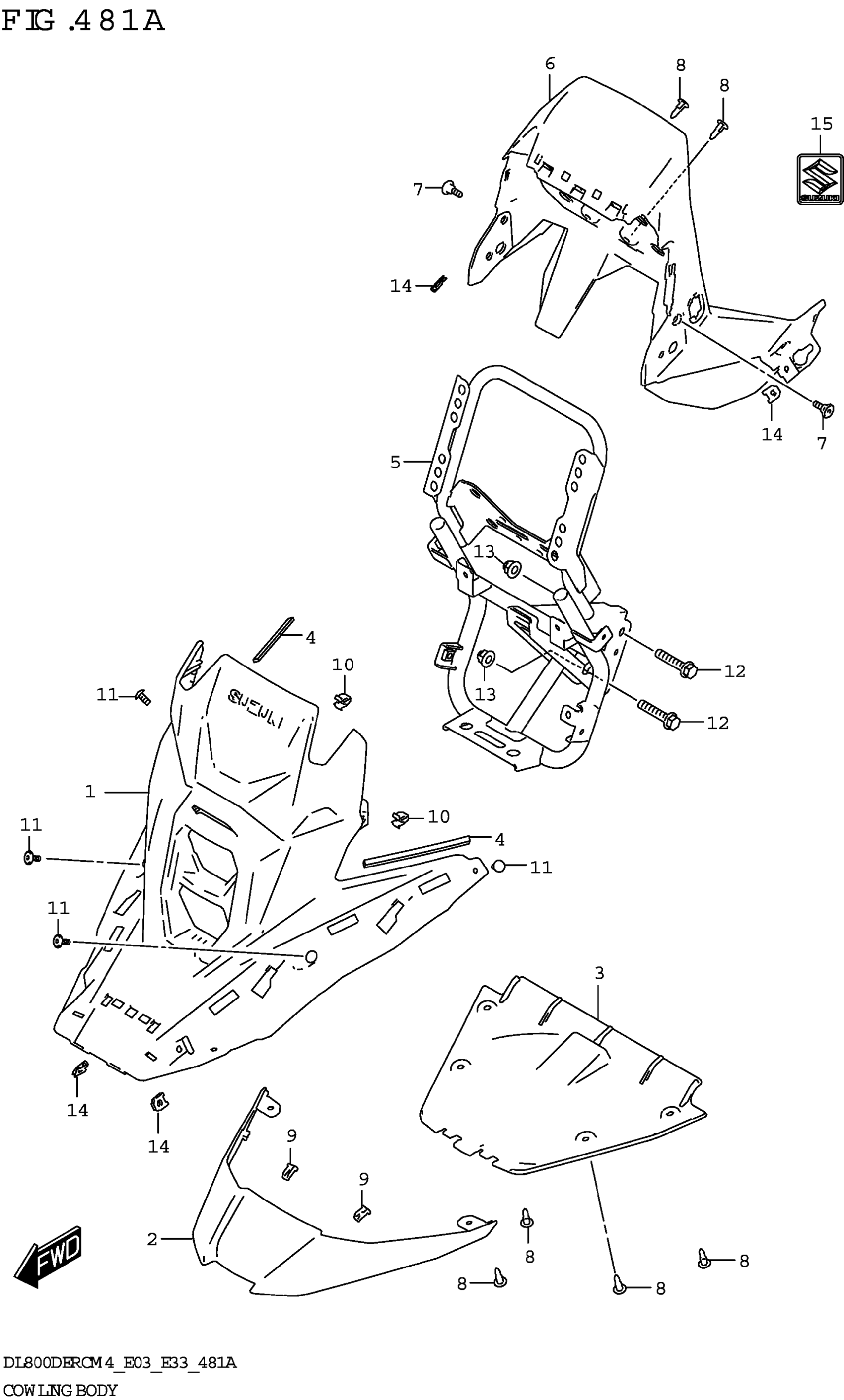

Suzuki DL800DERCM4 (2024) COWLING BODY Diagram
