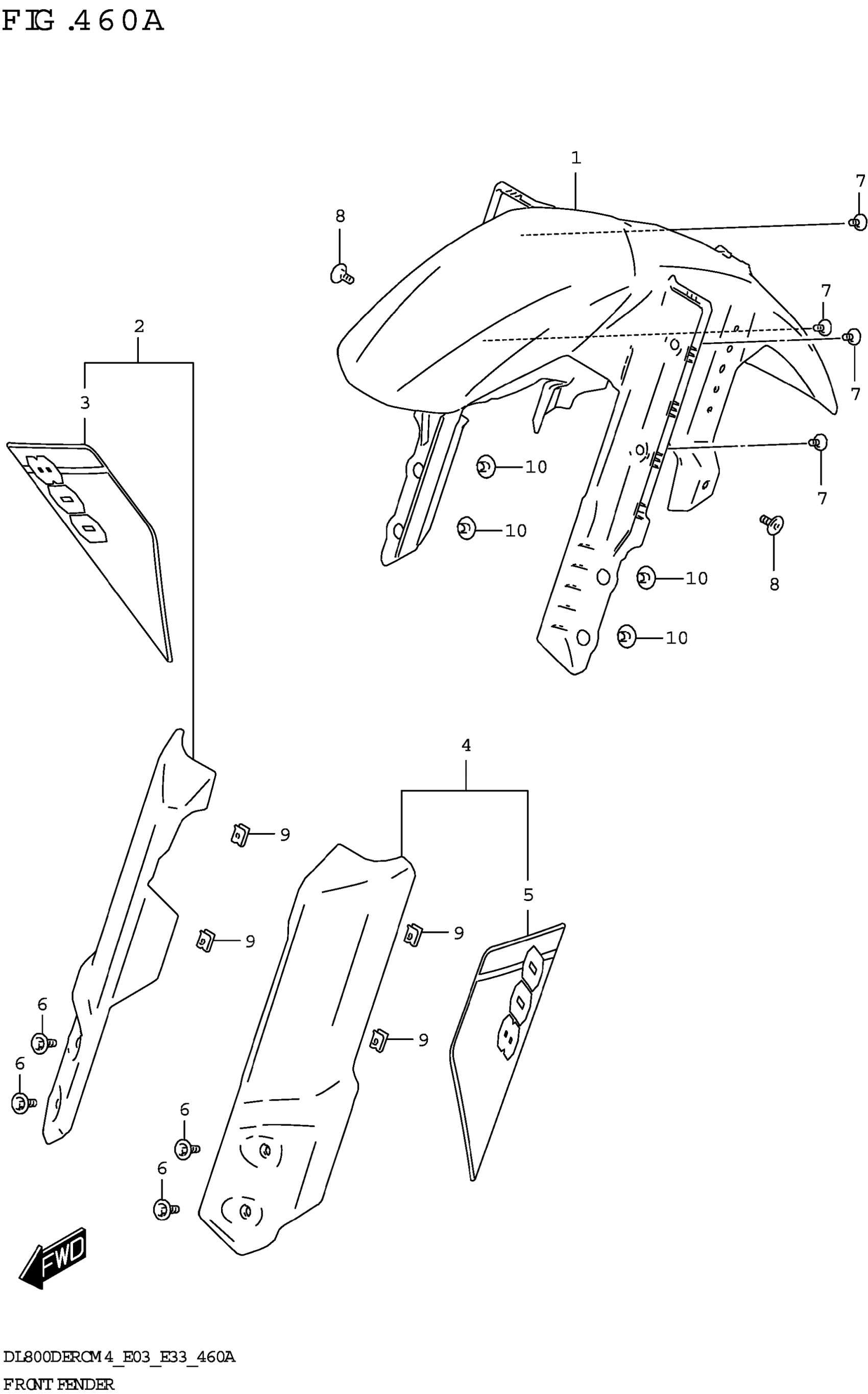

Suzuki DL800DERCM4 (2024) FRONT FENDER Diagram

#

Description
Price

1

FENDER,FRONT

53111-25LA0

$251.38

2-1

COVER COMP,FRON | E) BODY COLOR:YU1 This part replaces 53120-25L10-Y2W.

53120-25L11-Y2W

$84.92

2-2

COVER,FRONT FENDER SIDE,R | BODY COLOR:QU2

53120-25L10-CUX

$82.83

2-3

COVER,FRONT FENDER SIDE,R (YE | LOW) BODY COLOR:QVP

53120-25L10-B2X

$82.83

3-1

.TAPE,FRONT FENDER SIDE COVER | R BODY COLOR:YU1

68155-25L00-CJ6

$9.88

3-2

.TAPE,FRONT FENDER SIDE COVER | R BODY COLOR:QU2

68155-25L00-CKD

$10.17

3-3

.TAPE,FRONT FENDER SIDE COVER | R BODY COLOR:QVP

68155-25L00-CKE

$10.17

4-1

COVER COMP,FRNT | E) BODY COLOR:YU1 This part replaces 53130-25L10-Y2W.

53130-25L11-Y2W

$80.10

4-2

COVER,FRONT FENDER SIDE,L | BODY COLOR:QU2

53130-25L10-CUX

$84.40

4-3

COVER,FRONT FENDER SIDE,L (YE | LOW) BODY COLOR:QVP

53130-25L10-B2X

$84.40

5-1

.TAPE,FRONT FENDER SIDE COVER | L BODY COLOR:YU1

68165-25L00-CJ6

$10.42

5-2

.TAPE,FRONT FENDER SIDE COVER | L BODY COLOR:QU2

68165-25L00-CKD

$10.17

5-3

.TAPE,FRONT FENDER SIDE COVER | L BODY COLOR:QVP

68165-25L00-CKE

$10.17

6

BOLT (6X20)

09116-06188

$2.25

7

SCREW (5X13)

09139-05091

$2.01

8

SCREW (6X16)

09139-06221

$3.62

9

NUT (M5)

09148-05052

$3.04

10

SPACER,6X9.8X6 (6X9.8X6)

09180-06086

$2.72
