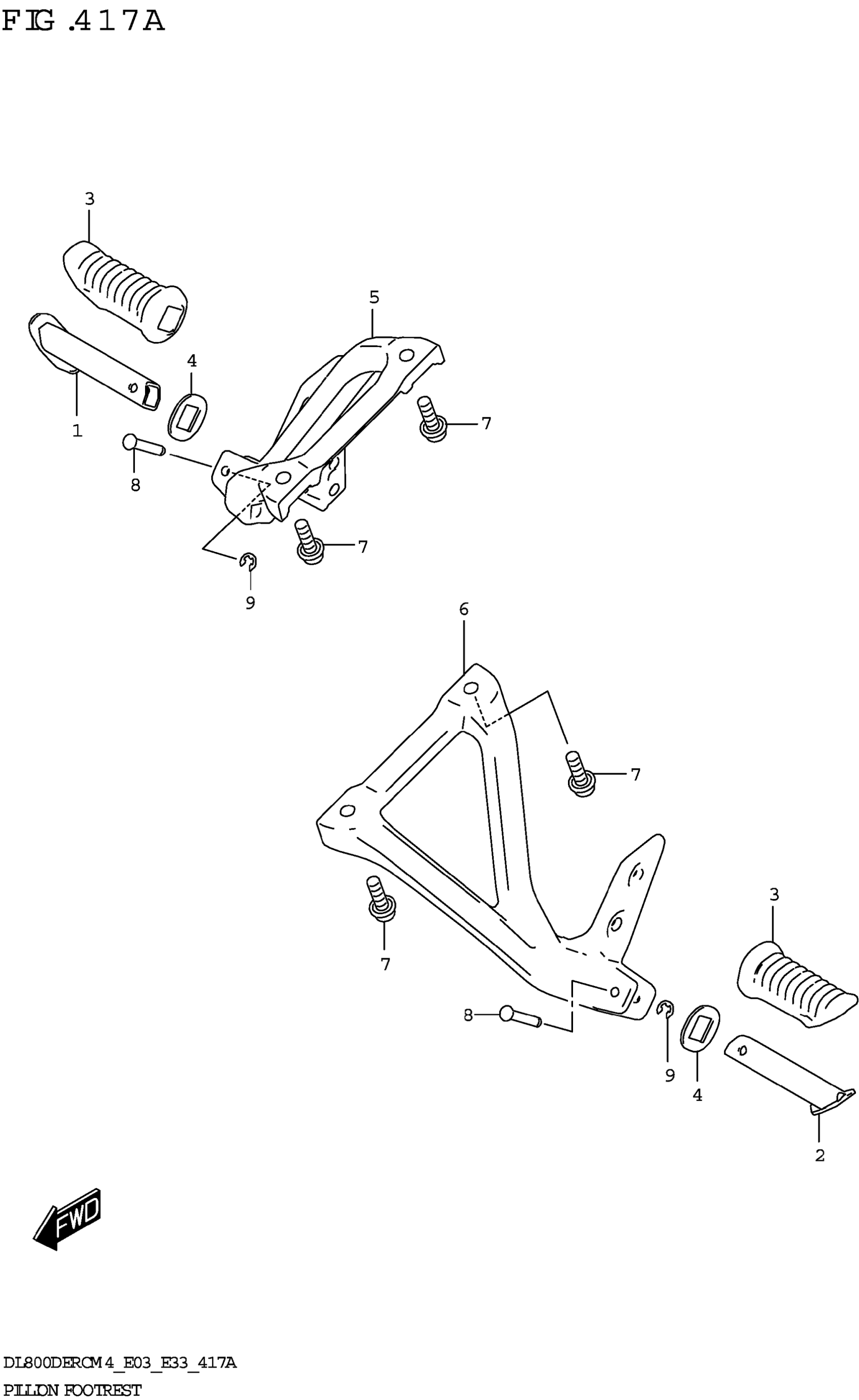

Suzuki DL800DERCM4 (2024) PILLION FOOTREST Diagram

#

Description
Price

1

BAR,PILLION FOOTREST,R

43610-34A70

$32.62

2

BAR,PILLION FOOTREST,L

43710-34A70

$32.62

3

RUBBER,PILLION FOOTREST

43612-33G40

$6.75

4

WASHER,FOOTREST RUBBER

43631-34A01

$4.26

5

BRACKET,PILLION FOOTREST,R

43811-25LA0

$97.52

6

BRACKET,PILLION FOOTREST,L

43821-25LA0

$95.85

7

BOLT (8X25)

09106-08151

$4.02

8

PIN

09208-06012

$3.58

9

E-RING

08332-1104B

$1.80
