2022 Suzuki DL1050RCM2 Stand Diagram

← All diagrams

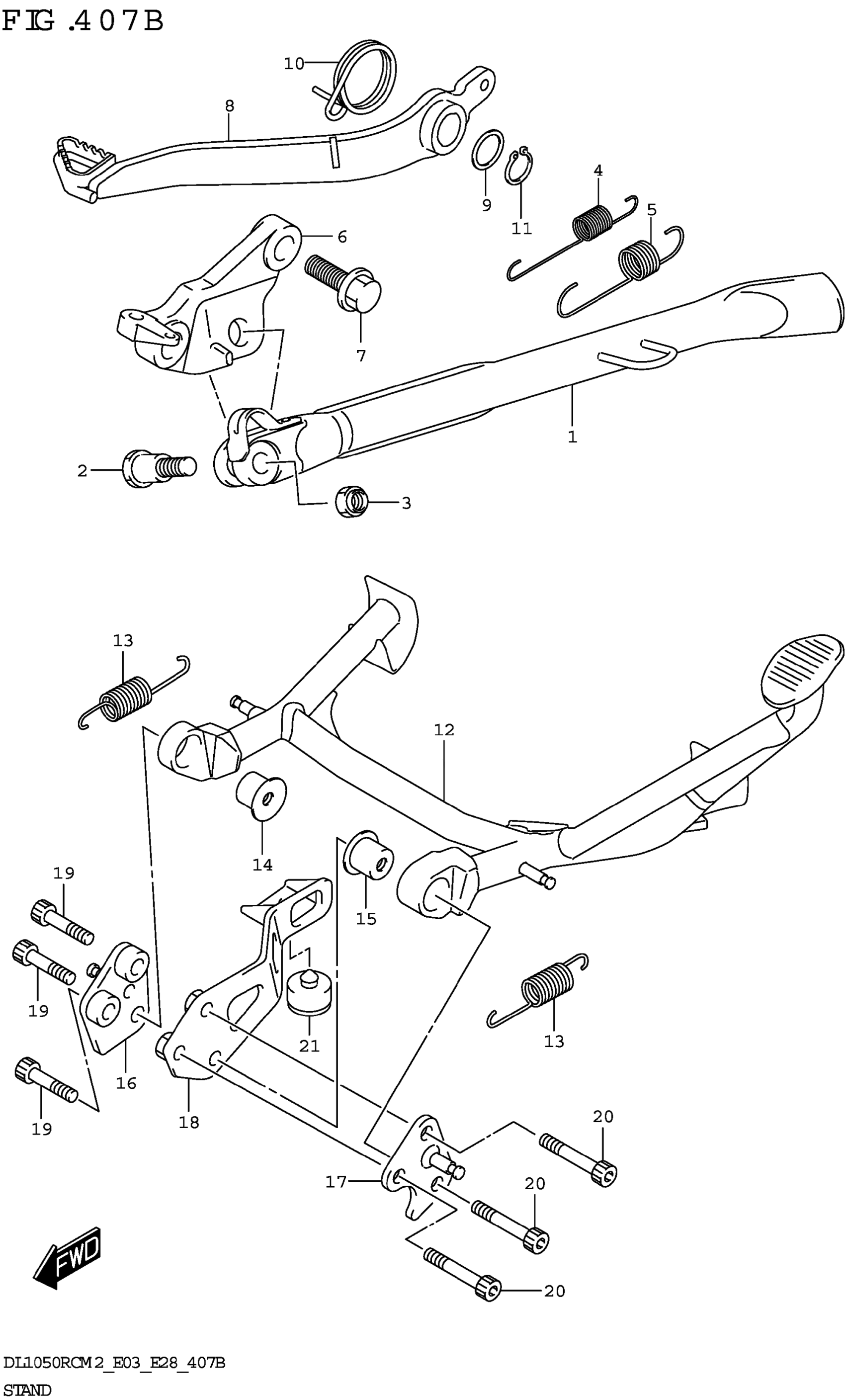

Find the part on the Stand diagram for your 2022 Suzuki DL1050RCM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DL1050RCM2 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND,PROP

42310-31J11

1
Out of stock

2

BOLT (10X37.5)

09111-10058

1
Out of stock

3

NUT, PROP STAND

42321-03FK0

1
Out of stock

4

SPRING

09443-14058

1
Out of stock

5

SPRING

09443-19011

1
Out of stock

6

BRACKET,PROP STAND

42330-06L00

1
Out of stock

7

BOLT,PROP STAND BRACKET

01550-1235B

2
Out of stock

8

PEDAL,BRAKE

43111-06L00

1
Out of stock

9

WASHER (18X24X1.0)

09160-18022

1
Out of stock

10

SPRING

09448-41006

1
Out of stock

11

CIRCLIP

08331-3118A

1
Out of stock

12

STAND,CENTER

42100-31J11

1
Out of stock

13

SPRING,CENTER STAND

42241-31J00

2

$8.45

In stock

14

SPACER,CENTER STAND RH

42253-31J10

1
Out of stock

15

SPACER,CENTER STAND LH

42254-31J10

1
Out of stock

16

PLATE,CENTER STAND RH

42260-06L10

1
Out of stock

17

PLATE,CENTER STAND LH

42270-31J20

1
Out of stock

18

PLATE,CENTER STAND

42290-31J00

1

$36.17

In stock

19

BOLT

01550-1035B

3
Out of stock

20

CUSHION,CENTER STAND

09321-10046

1
Out of stock

21

BOLT,CENTER STAND LH

42221-06L00

3
Out of stock
