2006 Suzuki DL1000 Starter Clutch Diagram

← All diagrams

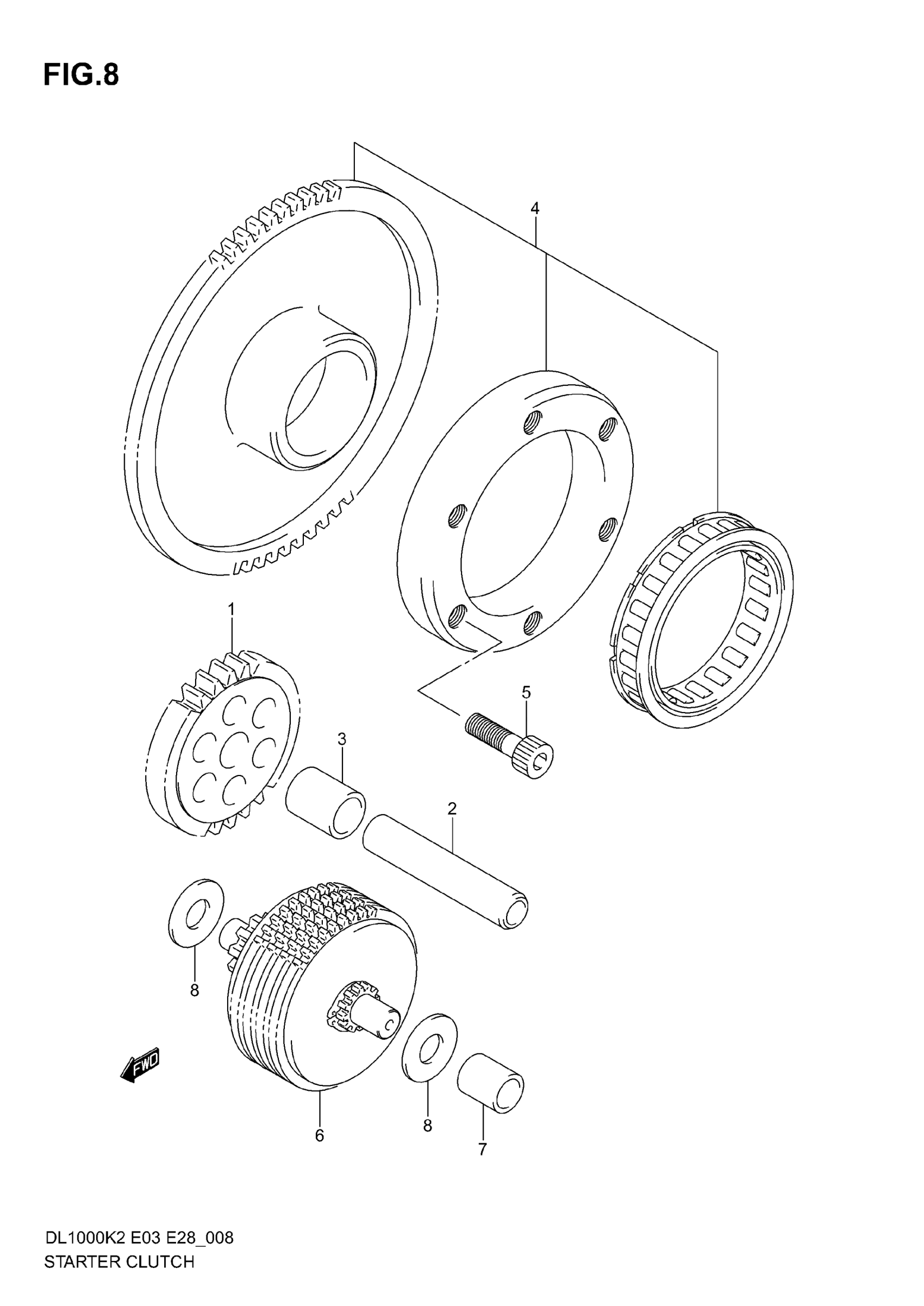

Find the part on the Starter Clutch diagram for your 2006 Suzuki DL1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki DL1000 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE

12612-06G00

1
Out of stock

2

PIN

09206-12002

1
Out of stock

3

SPACER

09180-12140

1
Out of stock

4

CLUTCH SET, STARTER

12600-06811

1
Out of stock

5

BOLT

09106-08106

6
Out of stock

6

LIMITER ASSY, STARTER IDLE This part replaces 12600-06G00.

12600-06G01

1
Out of stock

7

BUSH LIMITER GEAR SHAFT

12618-31D01

2
Out of stock

8

WASHER

08211-10221

2
Out of stock
