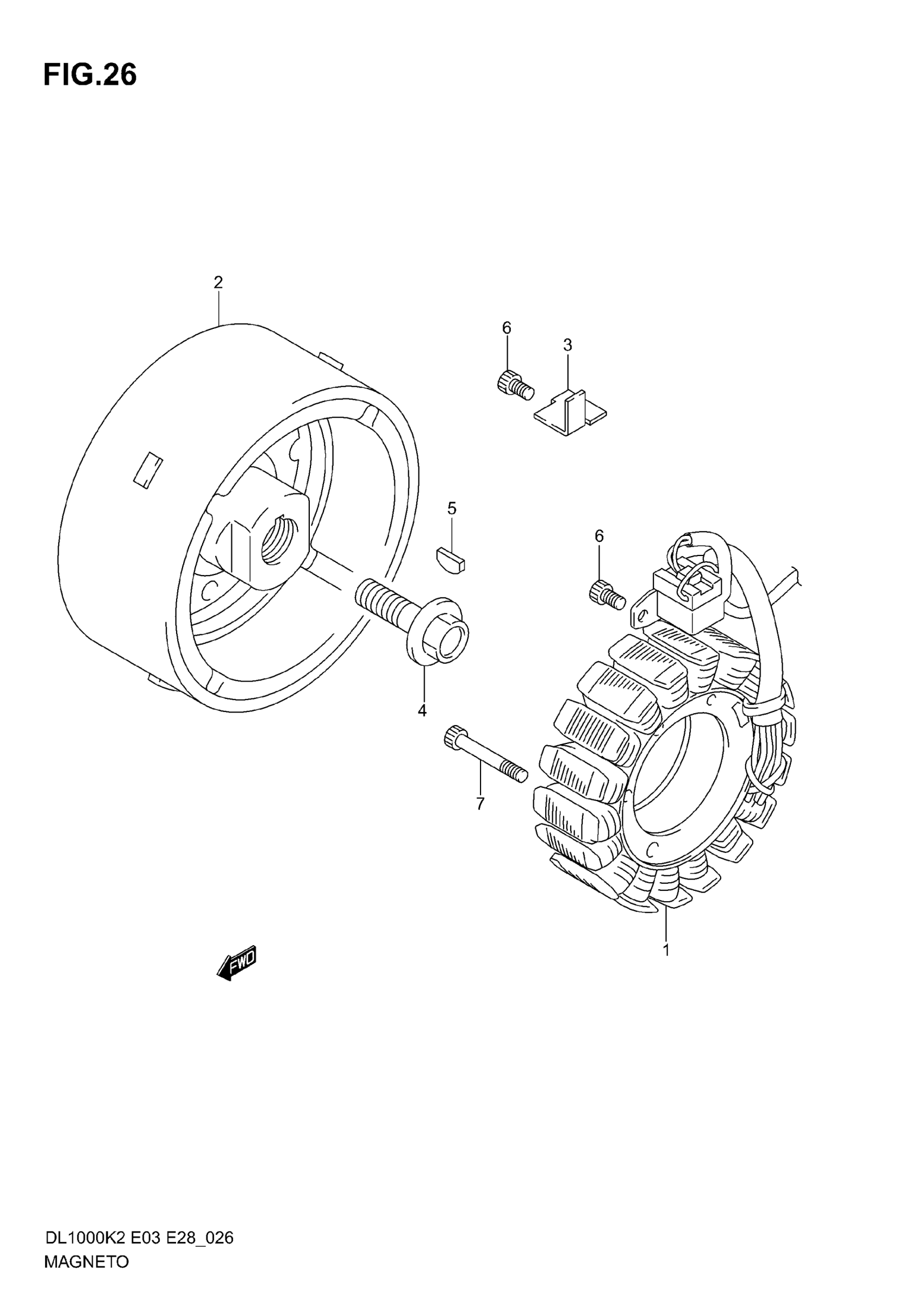

Suzuki DL1000 (2006) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY | MODEL K2

32101-06G00

Unavailable

1

STATOR ASSY,MAG | MODEL K3/K4/K5/K6 This part replaces 32101-06G10.

32101-06G11

$571.05

2

ROTOR ASSY | MODEL K2

32102-06G00

Unavailable

2

ROTOR ASSY | MODEL K3/K4/K5/K6

32102-06G10

$585.10

3

CLAMP, MAGNETO

32371-13E00

$3.35

4

BOLT, ROTOR

32491-06G00

$8.91

5

KEY

09420-04008

$3.08

6

BOLT, PICK UP & CLAMP This part replaces 07130-05103.

07130-0510B

$2.64

7

BOLT This part replaces 07130-06353.

07130-0635B

$3.04
