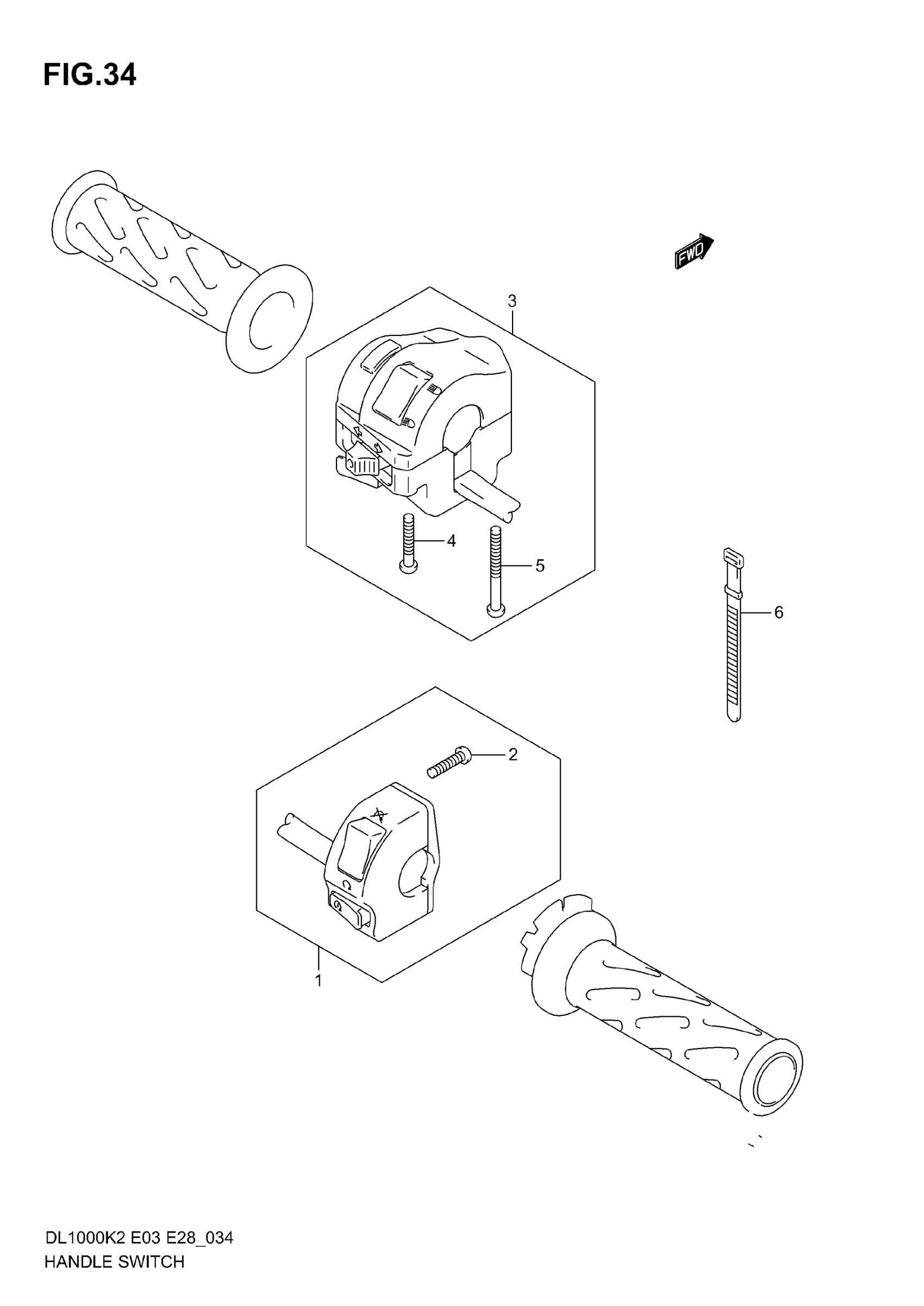

Suzuki DL1000 (2006) HANDLE SWITCH (MODEL K2/K3) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2

37200-06G30

$203.22

2

SCREW

02112-05223

Unavailable

3

SWITCH ASSY, HANDLE LH | Includes Item(s) 4 - 5

37400-06G30

Unavailable

4

.SCREW This part replaces 02112-05305.

02112-0530B

$1.45

5

SCREW This part replaces 02112-05403.

02112-0540B

$2.88

6

CLAMP (L:120)

09407-12402

$2.80
