2006 Suzuki DL1000 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2006 Suzuki DL1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

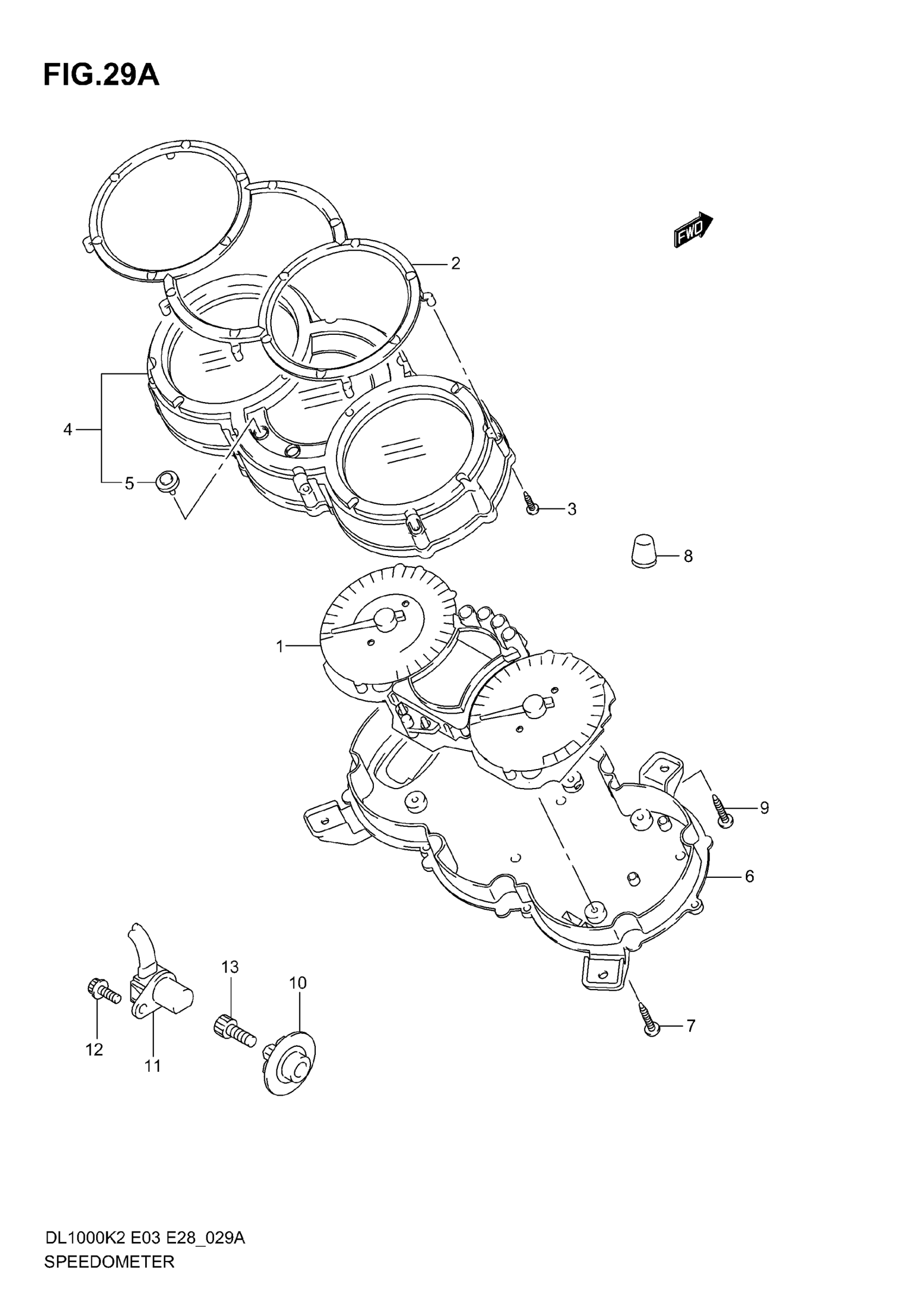

2006 Suzuki DL1000 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO) This part replaces 34120-06G60.

34120-06G61

1
Out of stock

1

SPEEDOMETER (KILO) | E28

34120-06G50

—
Out of stock

2

RING

34193-06G50

1
Out of stock

3

SCREW

34183-31F10

8
Out of stock

4

CASE, UPPER | Includes Item(s) 5

34150-27G00

1
Out of stock

5

KNOB

34124-24F00

2
Out of stock

6

CASE, LOWER

34111-27G00

1
Out of stock

7

SCREW (3X16)

09132-03008

14
Out of stock

8

CUSHION,SPEEDOM This part replaces 34955-10G00.

34955-10G01

2
Out of stock

9

SCREW This part replaces 03541-05203.

03541-0520A

4
Out of stock

10

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

1
Out of stock

11

SENSOR, SPEED This part replaces 34990-47F00.

34990-35F00

1
Out of stock

12

BOLT This part replaces 07120-05103.

07120-0510B

1
Out of stock

13

BOLT This part replaces 07130-08253.

07130-0825B

1
Out of stock
