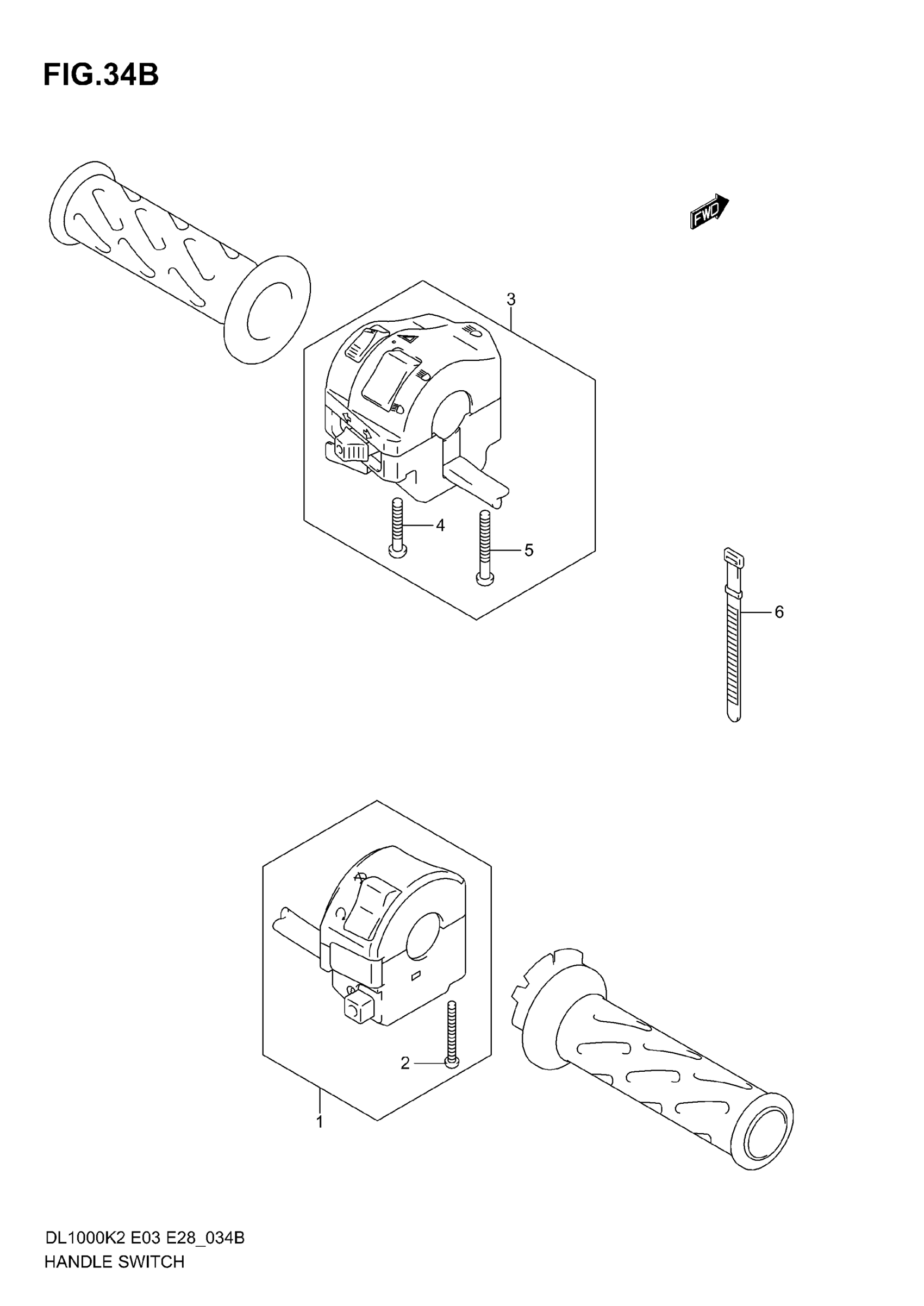

Suzuki DL1000 (2006) HANDLE SWITCH (MODEL K5/K6) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2

37200-06G80

$196.78

2

.SCREW This part replaces 02112-05453.

02112-0545B

$2.32

3

SWITCH ASSY, HANDLE LH | Includes Item(s) 4 - 5

37400-06G10

$271.58

4

.SCREW This part replaces 02112-05305.

02112-0530B

$1.49

5

SCREW This part replaces 02112-05403.

02112-0540B

$2.88

6

CLAMP (L:120)

09407-12402

$2.82
