1969 Yamaha CT1 (CT1) Electrical Diagram

← All diagrams

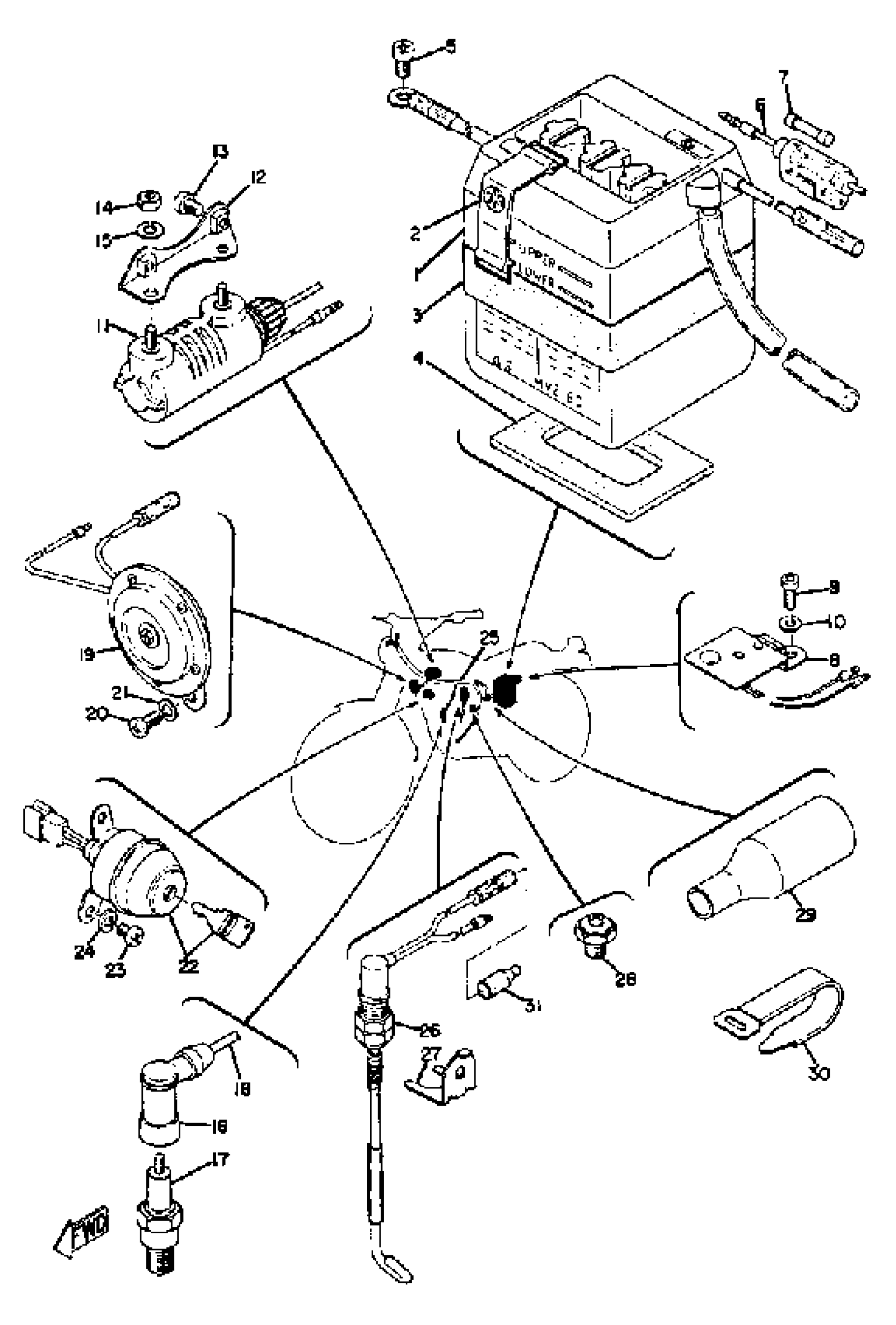

Find the part on the Electrical diagram for your 1969 Yamaha CT1 (CT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha CT1 (CT1) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, BATTERY

(104-82111-10-00)

1
Out of stock

1

6N2-2A-3 GS BATTERY

6N2-2A300-00-00

1
Out of stock

2

BAND, BATTERY

26L-82131-00-00

1

$7.05

In stock

3

BAND, BATTERY

214-82124-00-00

1
Out of stock

4

SEAT, BATTERY

(214-82122-00-00)

1
Out of stock

5

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

6

FUSE HOLDER ASSY

55K-82150-02-00

1

$30.99

In stock

7

FUSE

1A0-82151-00-00

1
Out of stock

8

RECTIFIER ASSY

315-81970-61-00

1
Out of stock

9

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

IGNITION COIL ASSEMBLY

248-82310-11-00

1
Out of stock

12

BRACKET, IGN COIL

(248-82316-00-00)

1
Out of stock

13

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

PLUG CAP ASSY

56J-82370-00-00

—

$56.63

In stock

17

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

1
Out of stock

18

CORD, HIGHT TENSION 1

137-82341-01-00

1
Out of stock

19

HORN

266-83371-12-00

1
Out of stock

20

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

MAIN SWITCH ASSEMBLY

(214-82508-20-00)

1
Out of stock

23

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

24

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

25

WIRE HARNESS ASSEMBLY

(251-82590-22-00)

1
Out of stock

26

STOP SWITCH ASSEMBLY

248-82530-02-00

1
Out of stock

27

STAY, STOP SWITCH

(248-82539-00-00)

1
Out of stock

28

NEUTRAL SWITCH ASSY

136-82540-03-00

—

$26.20

In stock

29

COVER, CONNECTER

(214-82599-00-00)

1
Out of stock

30

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

31

COVER, CONNECTER

(248-82599-00-00)

1
Out of stock
