1969 Yamaha CT1 (CT1) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1969 Yamaha CT1 (CT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

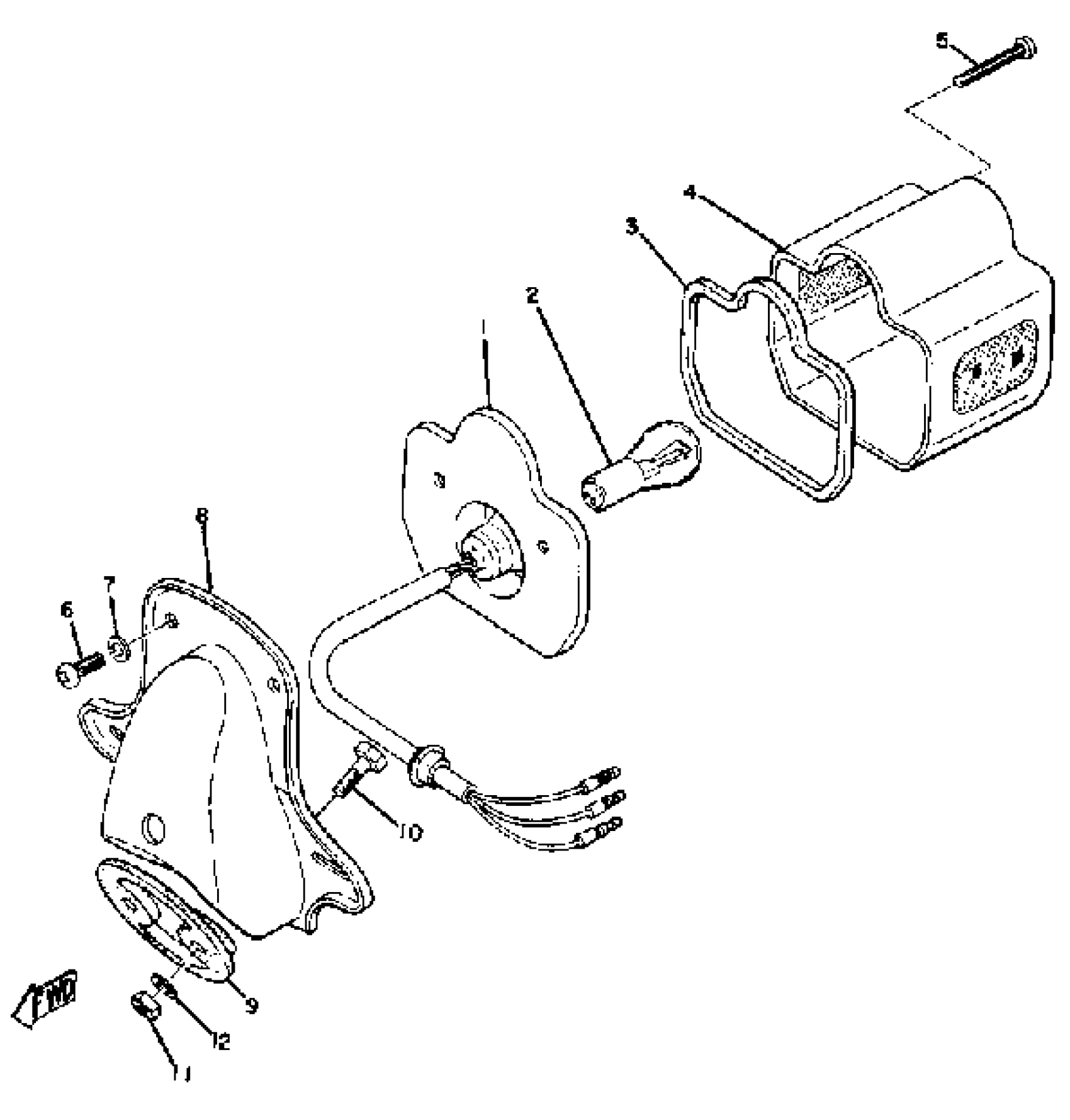

1969 Yamaha CT1 (CT1) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

(251-84510-60-00)

1
Out of stock

1

BASE, TAILLIGHT

(261-84711-60-00)

1
Out of stock

2

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

1
Out of stock

3

SEAT, BASE

(168-84712-60-00)

1
Out of stock

4

. LENS, TAILLIGHT

(168-84721-60-00)

1
Out of stock

5

. SCREW, RIM ADJUSTING

3AA-84331-00-00

1
Out of stock

6

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

BRACKET, LICENSE

(164-84751-60-35)

1
Out of stock

9

DAMPER

(248-84553-00-00)

1
Out of stock

10

BOLT 337847520000

90109-06005-00

1

$6.29

In stock

11

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
