1969 Yamaha CT1 (CT1) Flywheel Magneto Diagram

← All diagrams

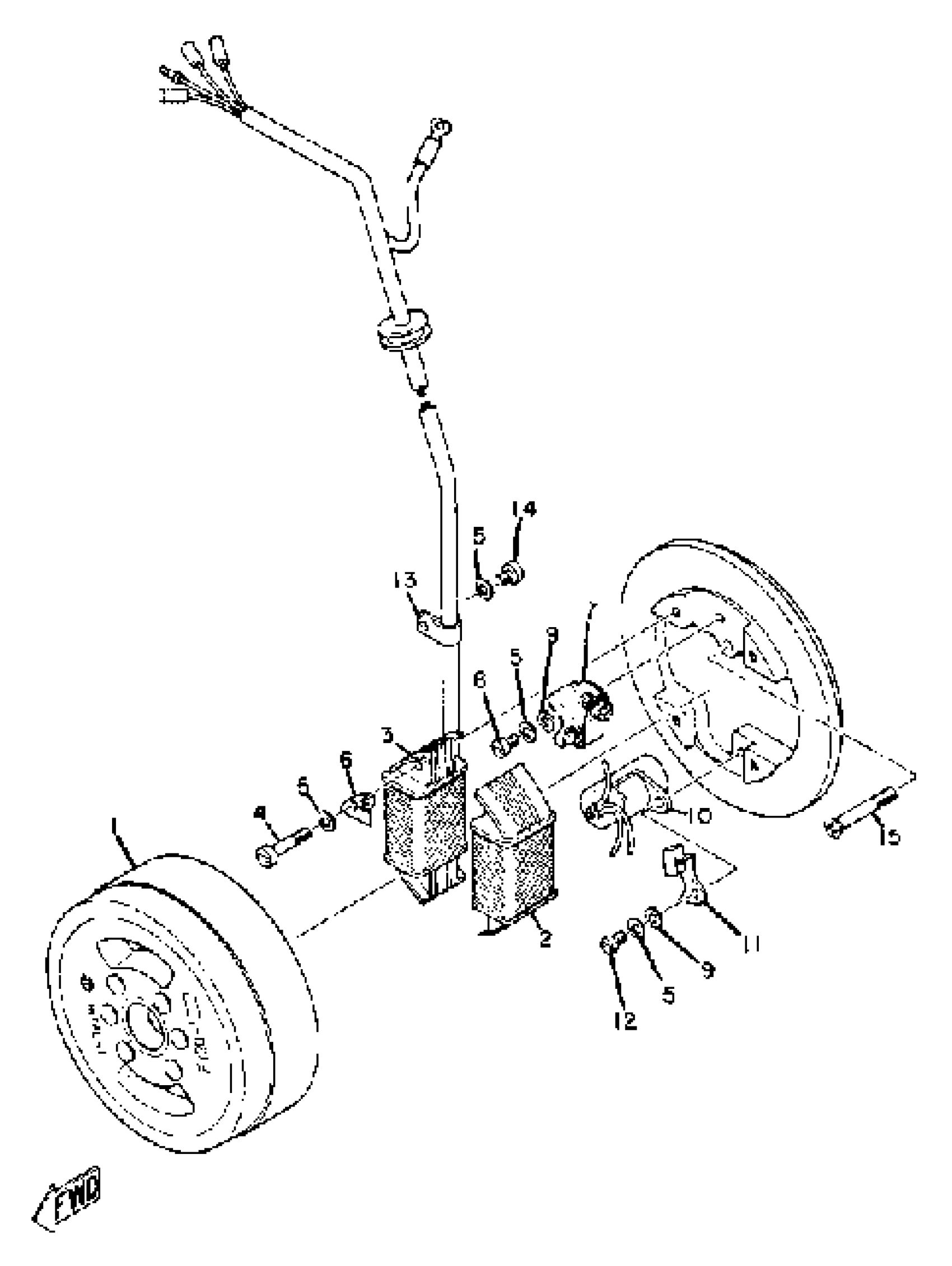

Find the part on the Flywheel Magneto diagram for your 1969 Yamaha CT1 (CT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha CT1 (CT1) Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLYWHL MAGNETO ASSEMBLY

(248-81300-10-00)

1
Out of stock

1

ROTOR ASSEMBLY

(248-81350-10-00)

1
Out of stock

2

. COIL, SOURCE

185-81312-10-00

1
Out of stock

3

COIL, LIGHTING 1

(248-81313-10-00)

1
Out of stock

4

SCREW, PAN HEAD

98517-04025-00

1
Out of stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

6

PLATE, TIMING

(185-81332-10-00)

1
Out of stock

7

. CONTACT BREAKER ASSY

207-81321-90-00

1
Out of stock

8

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

9

YBS66-4 WASHER, PLAIN

92990-04200-00

1
Out of stock

10

. CONDENSER 2

207-81326-90-00

1
Out of stock

11

. LUBRICATOR

207-81331-10-00

1
Out of stock

12

SCREW, PAN HEAD (E56)

98580-04010-00

1
Out of stock

13

. CLAMP

109-81328-11-00

1
Out of stock

14

SCREW, PAN HEAD (713)

98580-04008-00

1
Out of stock

15

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock
