1982 Kawasaki CSR Twin Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1982 Kawasaki CSR Twin, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

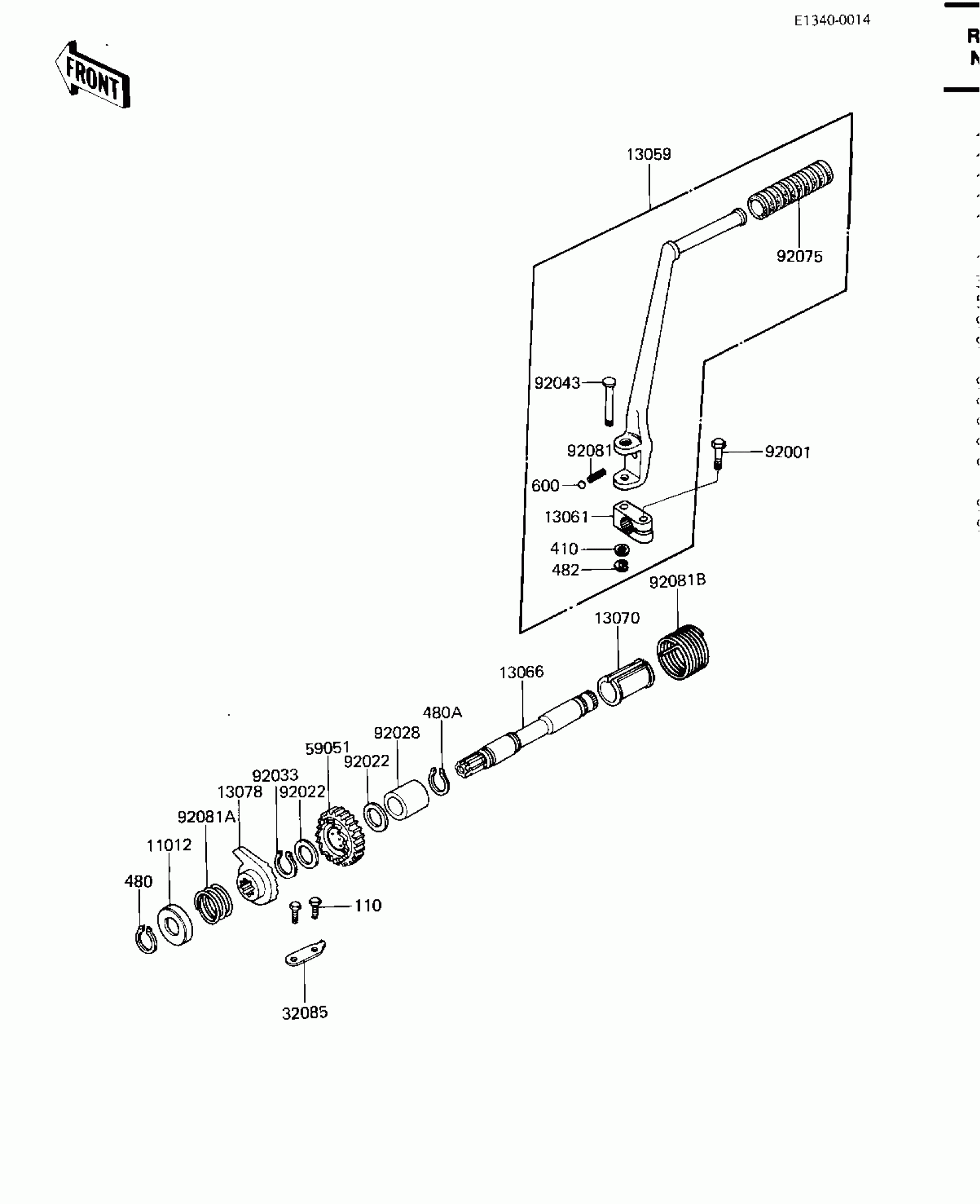

1982 Kawasaki CSR Twin Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,KICKSTARTER

92102-008

1
Out of stock

13059

PEDAL ASSY,KICK

13058-061

1
Out of stock

13061

BOSS-KICK PEDAL

13061-010

1
Out of stock

13066

SHAFT,KICKSTARTER

13066-1004

1
Out of stock

13070

GUID,KICK SPRING

13070-1008

1
Out of stock

13078

RATCHET,KICK SHAFT

13078-011

1
Out of stock

32085

STOPPER,KICKSTARTER

13072-012

1
Out of stock

59051

GEAR,KICKSTARTER

59051-1005

1
Out of stock

92001

BOLT-KICK PEDAL

92001-110

1
Out of stock

92022

WASHER,PLAIN,22MM

92022-207

1
Out of stock

92028

COLLAR,KICKSHAFT

92028-126

1
Out of stock

92033

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

92043

PIN-KICK PEDAL

92043-081

1
Out of stock

92075

DAMPER,KICK PEDAL

13063-004

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1
Out of stock

92018A

SPRING RATCHET

92081-104

1
Out of stock

92018B

SPRING,KICKSTARTER

92082-004

1
Out of stock

110

BOLT-UPSET

112G0614

1
Out of stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

480

CIRCLIP-TYPE-C,19MM

480J1900

1
Out of stock

480A

CIRCLIP-TYPE-C,22MM

480J2200

1
Out of stock

482

CIRCLIP 5MM

482K5000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock
