1982 Kawasaki CSR Twin Crankshaft/balancer Diagram

← All diagrams

Find the part on the Crankshaft/balancer diagram for your 1982 Kawasaki CSR Twin, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

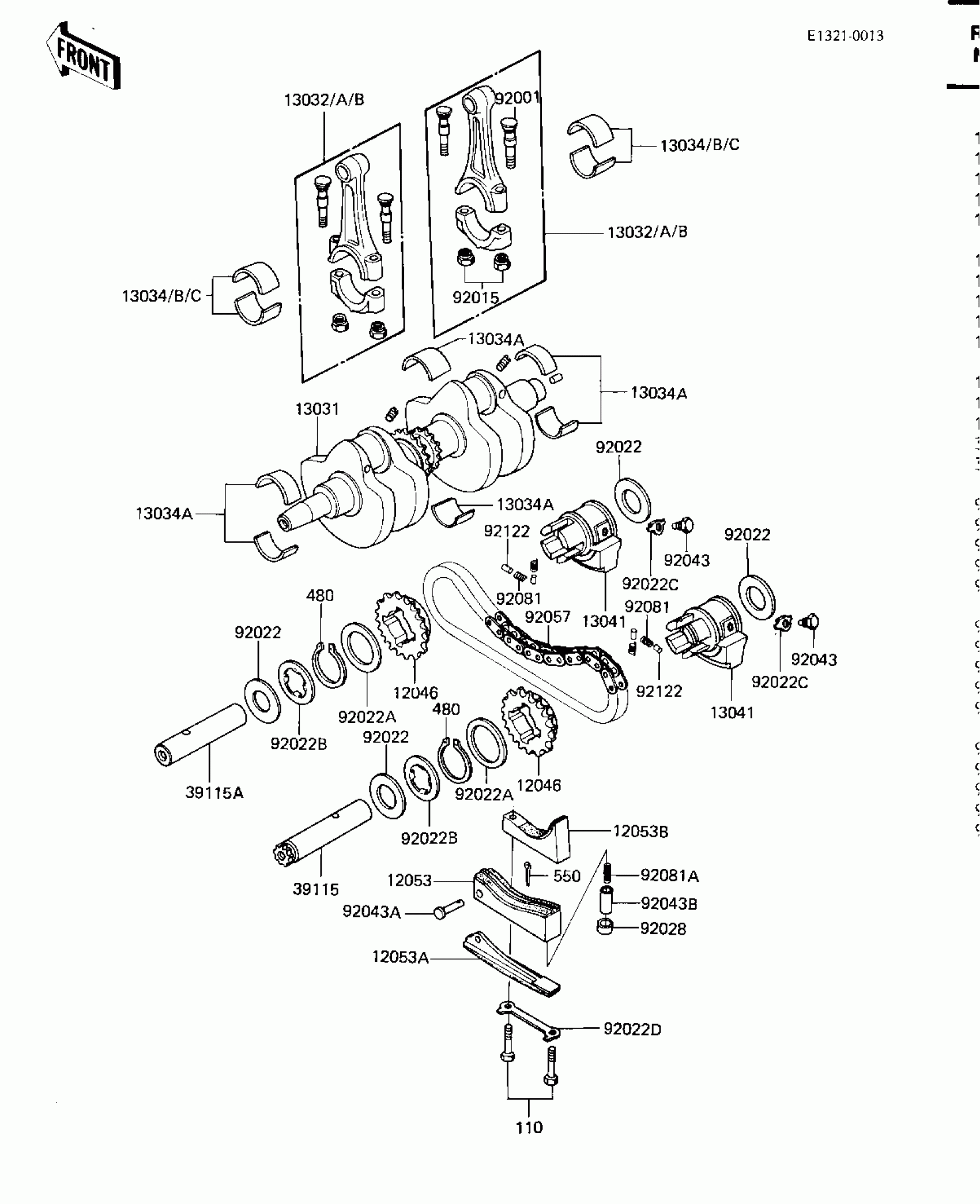

1982 Kawasaki CSR Twin Crankshaft/balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,BALANCER

12046-008

1
Out of stock

12053

SLIPPER,CAM CHAIN

12053-013

1
Out of stock

12053A

SLIPPER,CAM CHAIN

12053-014

1
Out of stock

12053B

SLIPPER,CAM CHAIN

12053-022

1
Out of stock

13031

CRANKSHAFT ASSY

13031-1005

1
Out of stock

13032

ROD-CONNECTING

13032-051-MM

1
Out of stock

13032A

ROD-CONNECTING

13032-051-MM

1
Out of stock

13032B

ROD-CONNECTING

13032-051-MM

1
Out of stock

13034

METAL,CON ROD BRG

13034-043

1
Out of stock

13034A

METAL,CRANK BRG

13034-044

1
Out of stock

13034B

METAL,CON ROD BRG

13034-045

1
Out of stock

13034C

METAL,CON ROD BRG

13034-046

1
Out of stock

13041

BALANCER

13041-005

1
Out of stock

39115

SHAFT BALANCER W-GEAR

12052-007

1
Out of stock

39115A

SHAFT,BALANCER

12052-008

1
Out of stock

92001

BOLT,CONNECTING ROD

92001-170

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92022

WASHER,PLAIN

92022-310

1
Out of stock

92022A

WASHER,PLAIN

92022-316

1
Out of stock

92022B

WASHER,LOCK

92024-071

1
Out of stock

92022C

WASHER LOCK 10MM

92031-001

1
Out of stock

92022D

WASHER,LOCK

92031-016

1
Out of stock

92028

BUSHING,SLIPPER

92028-185

1
Out of stock

92043

PIN SELECT FORK GUIDE

92043-016

1
Out of stock

92043A

PIN

92043-120

1
Out of stock

92043B

PIN,SLIPPER

92043-122

1
Out of stock

92057

CHAIN,BALANCER

21070-009

1
Out of stock

92081

SPRING,BALANCER

92081-142

1
Out of stock

92081A

SPRING

92081-146

1
Out of stock

92122

PIN,DOWEL

92122-005

1
Out of stock

110

BOLT,6X55

110G0655

1
Out of stock

480

CIRCLIP, 38MM

480J3800

1
Out of stock

550

PIN-COTTER,1.6X15

550D1615

1
Out of stock
