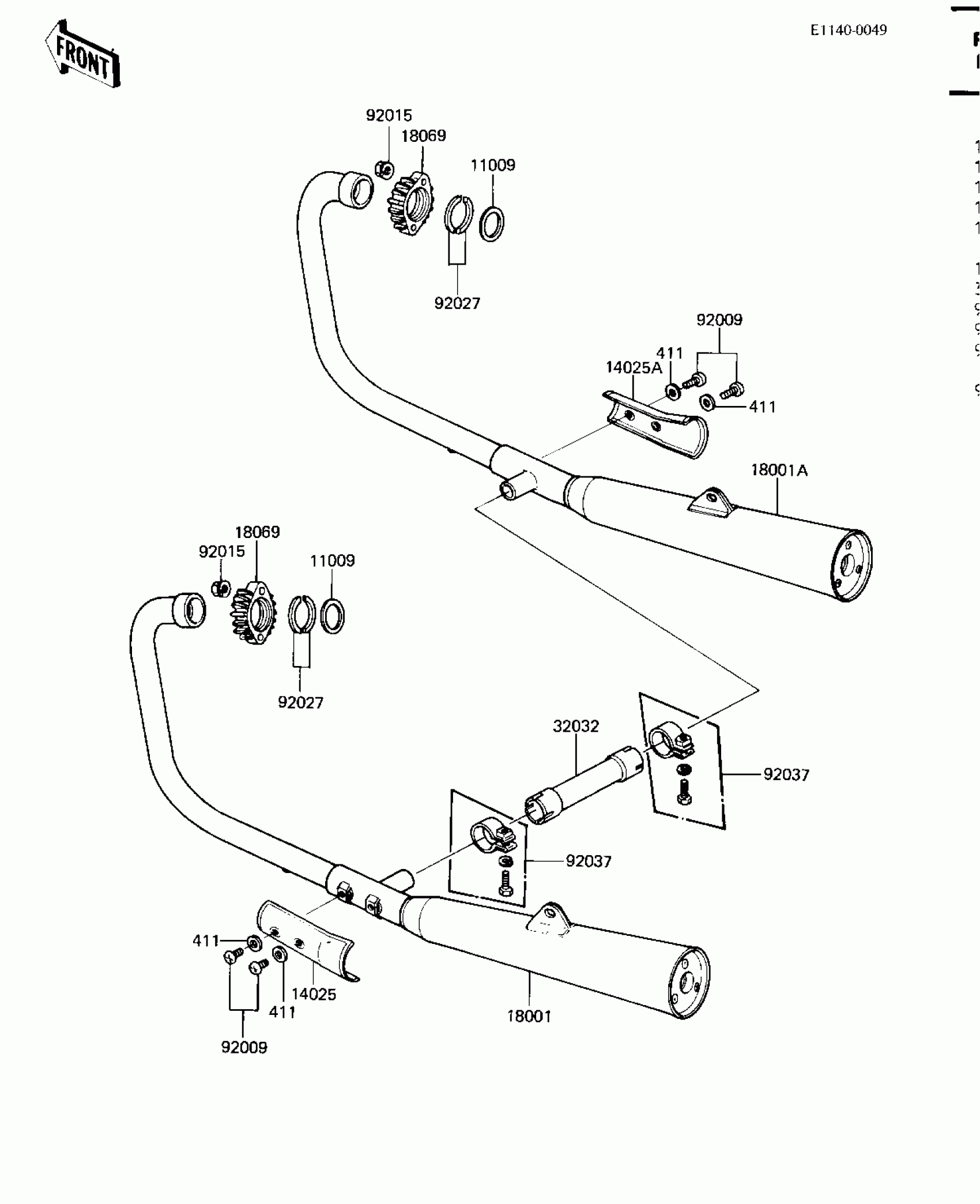

Kawasaki CSR Twin MUFFLERS Diagram

#

Description

Price

11009

GASKET,EXHAUST PIPE H

11009-1840

$8.17

14025

COVER,MUFFLER L.H

14025-1194

Unavailable

14025A

COVER,MUFFLER R.H

14025-1195

Unavailable

18001

MUFFLER,LH,KHI K041

18001-1301

Unavailable

18001A

MUFFLER,RH,KHI K041

18001-1302

Unavailable

18069

HOLDER,EXHAUST PIPE

18069-060

Unavailable

32032

PIPE

32032-1752

Unavailable

92009

SCREW,PAN HEAD,6X8

92011-039

Unavailable

92015

NUT,8MM

92015-1143

$1.49

92027

COLLAR,EXHAUST PIPE

92027-1241

Unavailable

92037

CLAMP,MUFFLER,37MM

92037-1243

Unavailable

411

WASHER-PLAIN,6MM

411D0600

$1.45
