1982 Kawasaki CSR Twin Cylinder/pistons Diagram

← All diagrams

Find the part on the Cylinder/pistons diagram for your 1982 Kawasaki CSR Twin, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

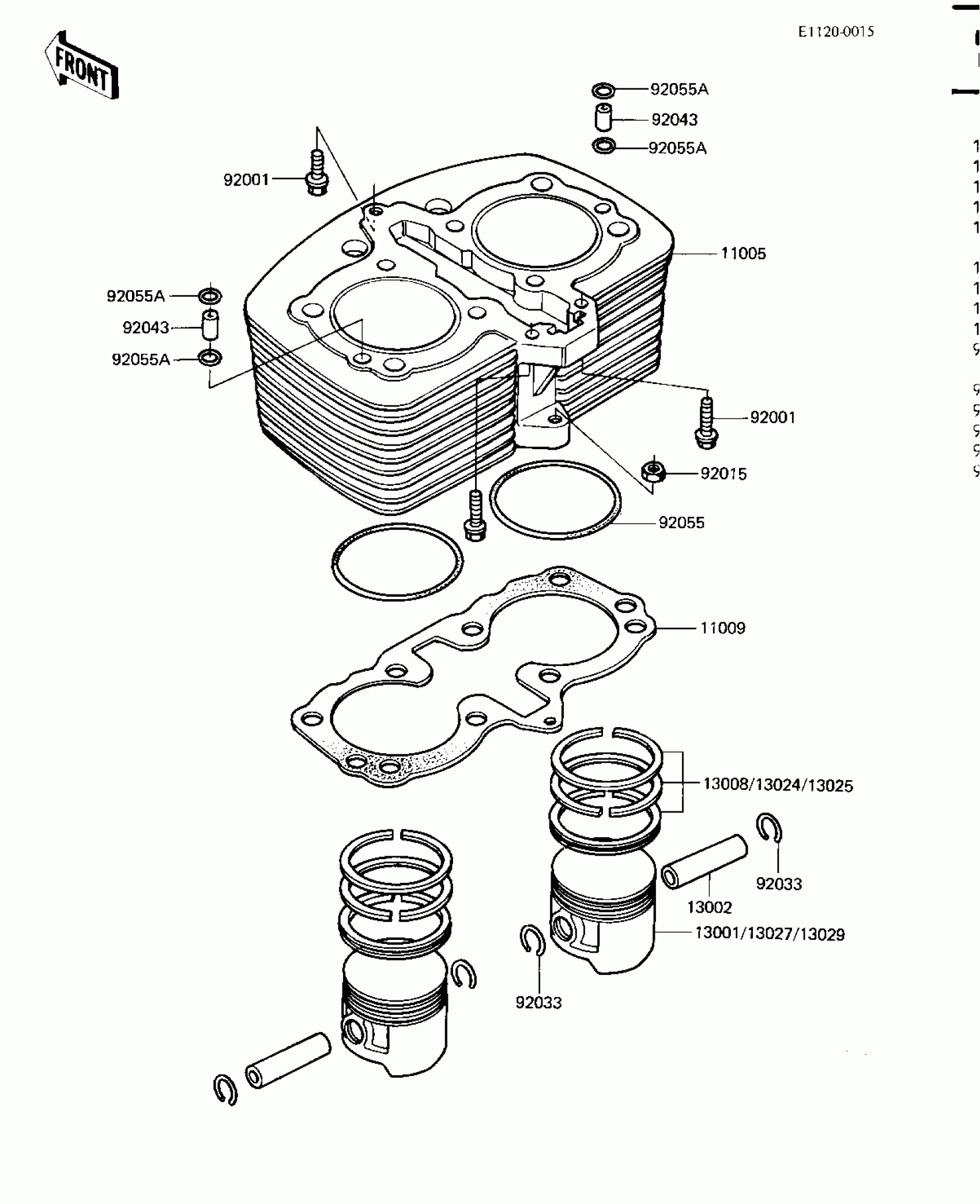

1982 Kawasaki CSR Twin Cylinder/pistons Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1158

1
Out of stock

11009

GASKET,CYLINDER BASE

11009-042

1
Out of stock

13001

PISTON,STD

13001-1086

1
Out of stock

13002

PIN-PISTON

13002-031

1
Out of stock

13008

RING SET,PISTON

13008-055

1
Out of stock

13024

RING SET,0.040'0.S

13024-059

1
Out of stock

13025

RING SET,0.020'0.S

13025-059

1
Out of stock

13027

PISTON,1.00 O/S

13027-1038

1
Out of stock

13029

PISTON,0.50 O/S

13029-1039

1
Out of stock

92001

BOLT, HEX HEAD, 6X34

92003-159

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92033

1

$0.53

In stock

92043

PIN,DOWEL

92042-039

1

$4.22

In stock

92055

"O" RING

92055-081

1

$14.08

In stock

92055A

"O" RING

92055-094

1
Out of stock
