Partiron

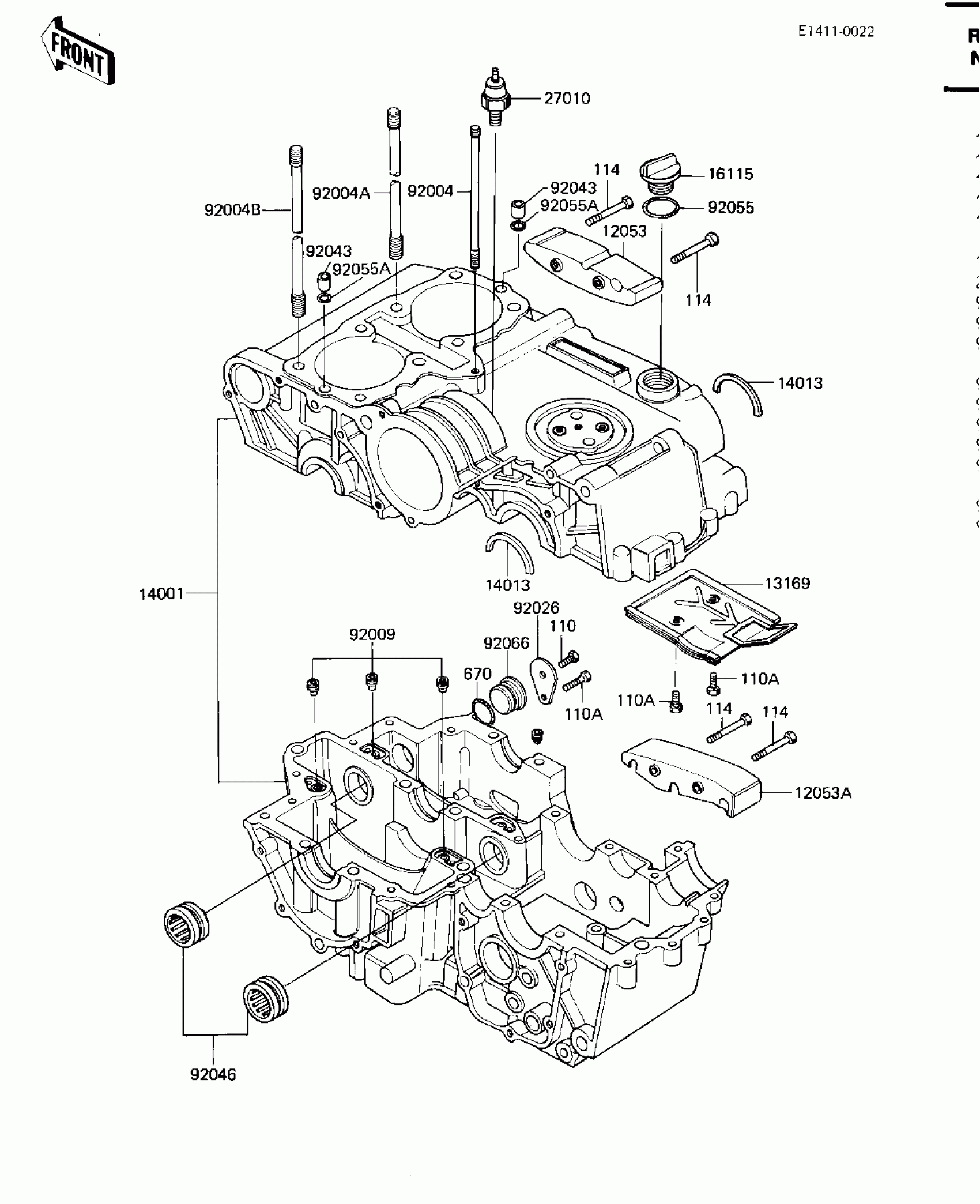

Kawasaki CSR Twin CRANKCASE Diagram

#

Description
Price

12053

SLIPPER,PRIMARY CHAIN

12053-020

Unavailable

12053A

SLIPPER,PRIMARY CHAIN

12053-021

Unavailable

13169

PLATE,BREATHER

14068-008

$24.27

14001

SET-CRANKCASE

14001-5092

Unavailable

14013

RING-POSITION

14013-004

$7.76

16115

CAP-OIL FILLER

16115-013

$18.64

27010

SWITCH,OIL PRESSURE

27010-1157

Unavailable

92004

STUD,6X22

92004-059

$4.93

92004A

STUD,10X167

92004-1002

$14.39

92004B

STUD,10X158

92004-1003

$14.39

92009

SCREW,SLOTTED

92013-007

$3.31

92026

SPACER

92026-115

$2.29

92043

PIN,11X14X12.3

92043-1266

$0.86

92046

BEARING,NEEDLE

92046-048

Unavailable

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

"O" RING

92055-093

$16.95

92066

PLUG

92066-049

$11.10

110

BOLT HEX HEAD 6X8

110B0608

Unavailable

110A

BOLT-UPSET 6X14

112B0614

Unavailable

114

BOLT-SMALL-UPSET

115G0835

Unavailable

670

"0" RING

670B3030

$7.12
