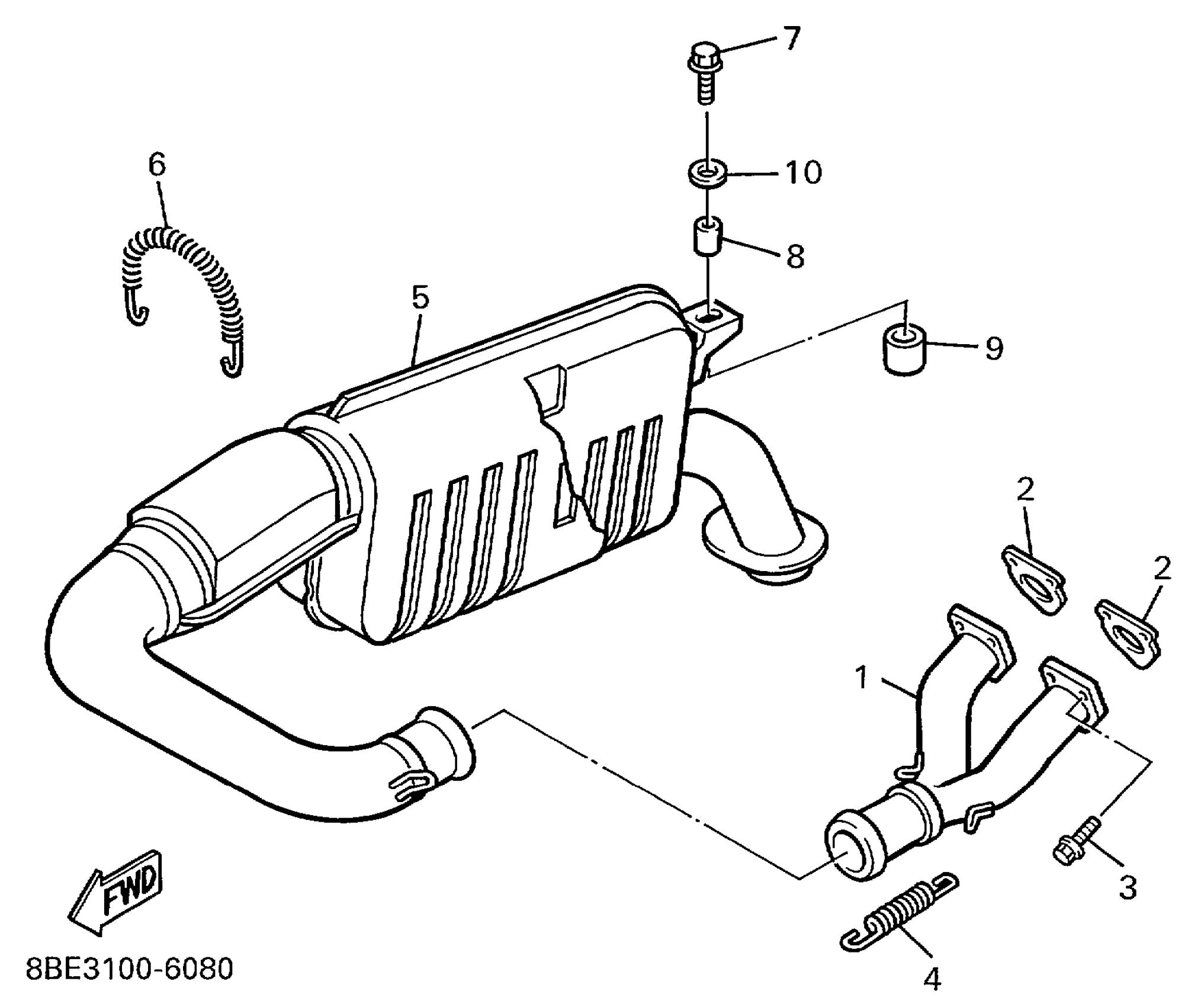

Yamaha CS340EC (OVATION LE) 8BE6 1999 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

8G8-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

8G8-14613-01-00

$4.38

3

BOLT, FLANGE

95817-06020-00

$2.69

4

SPRING, TENSION (8R7)

90506-20272-00

$9.40

5

MUFFLER ASSEMBLY 1

87D-14710-00-00

Unavailable

6

SPRING, TENSION

90506-16436-00

Unavailable

7

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

8

PIN, DOWEL(J38)

91812-16001-00

$5.17

9

DAMPER, MUFFLER

8G8-14747-00-00

Unavailable

10

WASHER, PLATE(8AT)

90201-081R9-00

$6.32
