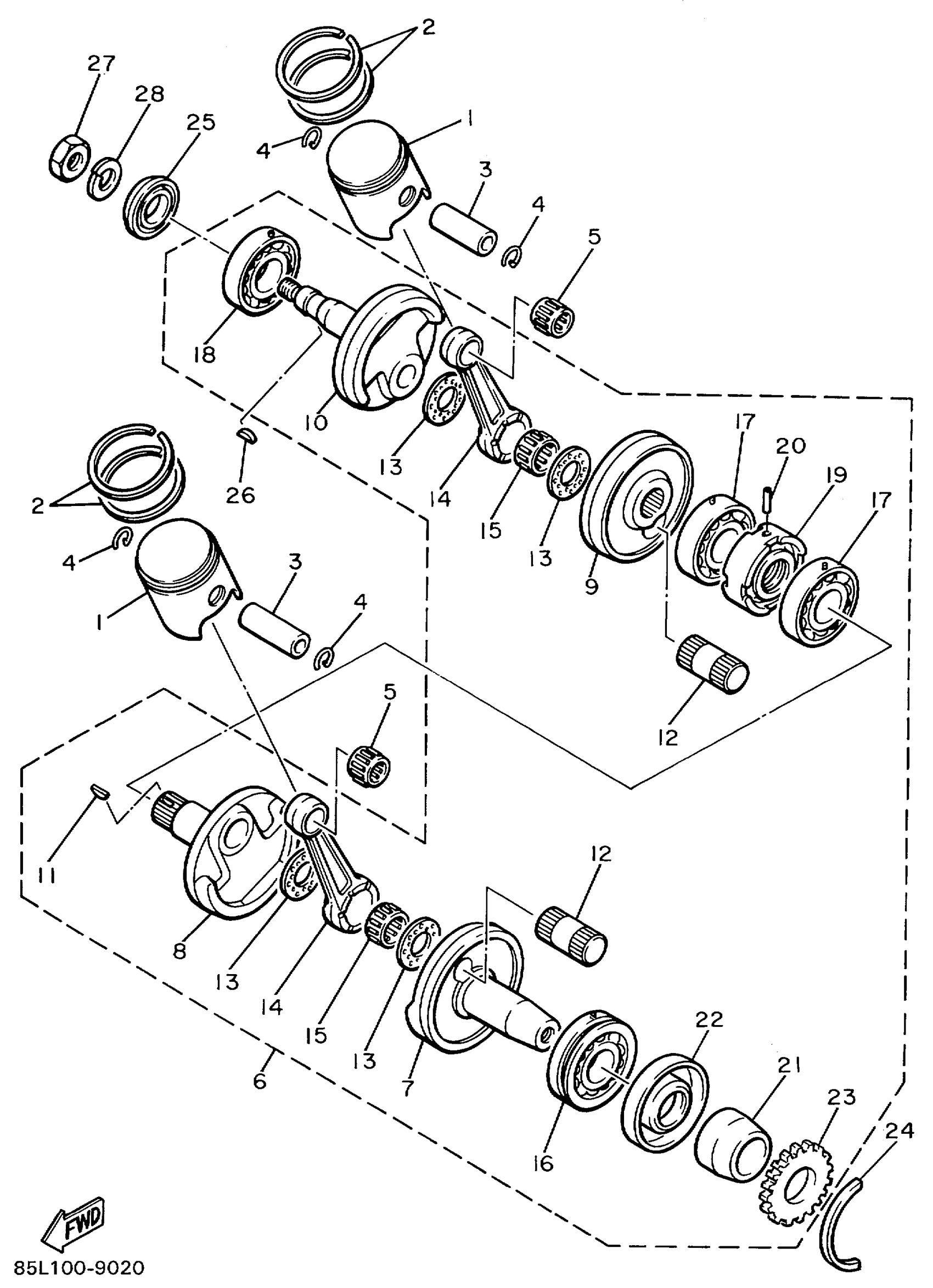

Yamaha CS340EC (OVATION LE) 8BE6 1999 CRANKSHAFT PISTON Diagram

#

Description
Price

1

PISTON (STD)

85L-11631-00-96

Unavailable

1

PISTON (0.25MM O/S)

85L-11635-00-00

Unavailable

1

PISTON (0.50MM O/S)

85L-11636-00-00

Unavailable

2

PISTON RING SET (STD)

8G8-11601-00-00

Unavailable

2

PISTON RING SET (0.25MM O/S)

8G8-11601-10-00

Unavailable

2

PISTON RING SET (0.50MM O/S)

8G8-11601-20-00

Unavailable

3

PIN, PISTON

137-11633-10-00

$21.92

4

CIRCLIP (137-11634-00)

93450-17025-00

$6.17

5

BRG,CYL-CAL ROLLER 14-7G KY

93310-216E1-00

$23.03

6

CRANKSHAFT ASSEMBLY

85L-11400-00-00

Unavailable

7

. CRANK 1

8G8-11412-01-00

Unavailable

8

. CRANK 2

8L3-11422-01-00

Unavailable

9

. CRANK 3

8L3-11432-01-00

Unavailable

10

. CRANK 4

8G8-11442-01-00

Unavailable

11

KEY, WOOD RUFF (324)

90280-05014-00

$7.82

12

PIN, CRANK

8G8-11681-00-00

$24.98

13

WASHER (164-11685-00)

90209-22071-00

$10.95

14

ROD, CONNECTING

34X-11651-00-00

$77.82

15

BEARING, CYLIMDRICAL (4A7)

93310-422L0-00

$48.62

16

. BEARING (B6306)

93306-30618-00

Unavailable

17

BEARING (8G8)

93306-20617-00

$69.94

18

BEARING

93306-30571-00

$67.42

19

. SEAL, LABYRINTH 1

8L3-11515-01-00

Unavailable

20

PIN, SPRING (663)

91690-30010-00

$5.46

21

. COLLAR

82Y-11478-00-00

Unavailable

22

. OIL SEAL

93102-40373-00

Unavailable

23

. GEAR, PUMP DRIVE

85L-13178-00-00

Unavailable

24

CIRCLIP (1J7)

93440-72049-00

$10.26

25

OIL SEAL (8G8)

93102-25183-00

$11.94

26

KEY, WOODRUFF

90280-05001-00

$10.68

27

NUT

90170-16425-00

$6.60

28

WASHER(JN5)

92907-16100-00

$12.08
