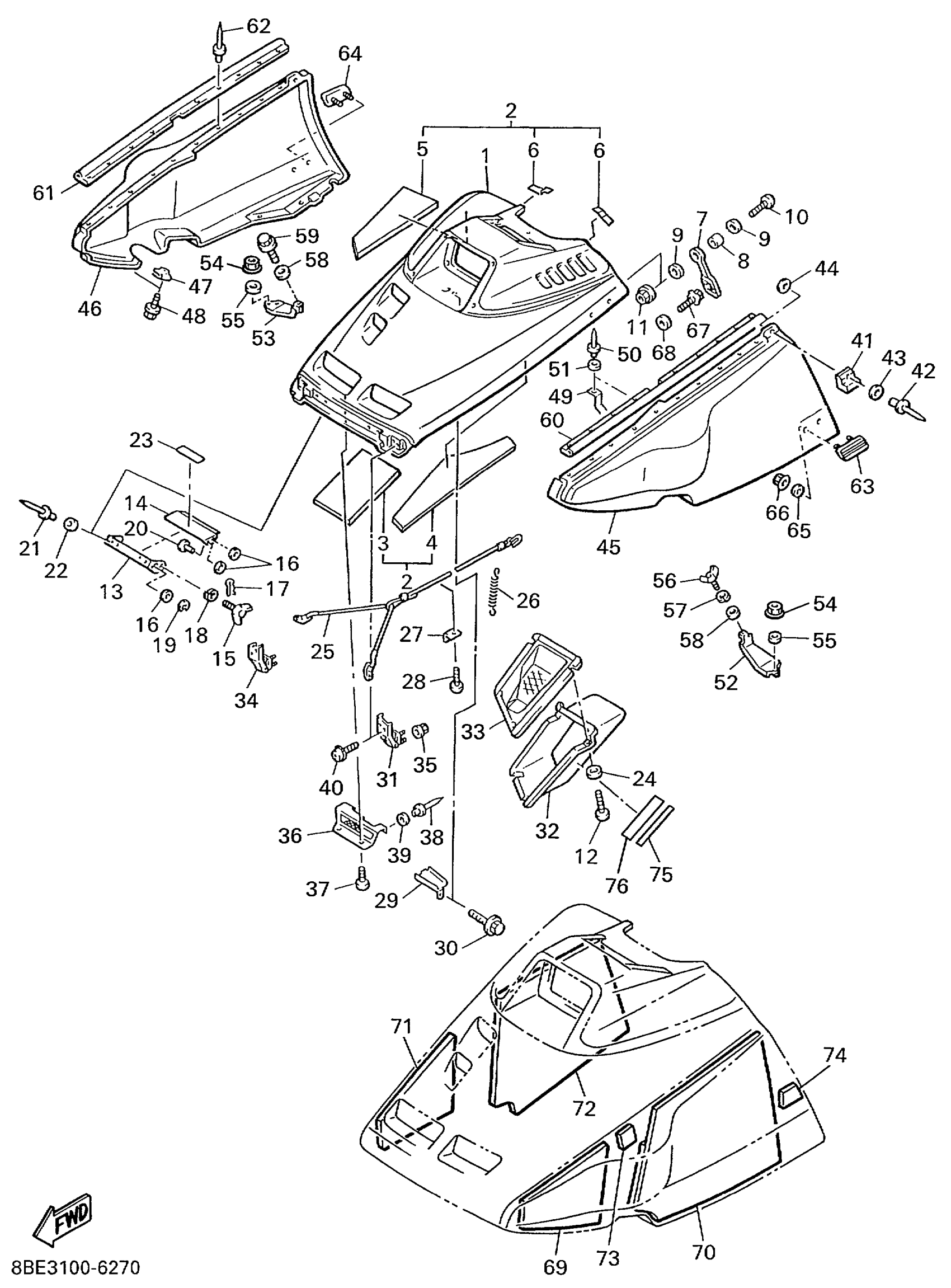

Yamaha CS340EC (OVATION LE) 8BE6 1999 SHROUD Diagram

#

Description
Price

1

SHROUD ASSEMBLY

88E-Y7711-10-00

Unavailable

2

LINING SET

89E-W7726-00-00

Unavailable

3

LINING, SHROUD 1

85L-77261-00-00

Unavailable

4

LINING, SHROUD 2

85L-77262-00-00

Unavailable

5

LINING, SHROUD 3

85L-77263-00-00

Unavailable

6

DAMPER, SHROUD

85L-77196-00-00

Unavailable

7

BODY, LATCH 1

8V0-77171-00-00

$18.37

8

COLLAR (420)

90387-06241-00

$6.18

9

WASHER, PLATE

90201-06557-00

$2.75

10

SCREW, BINDING

98907-06025-00

$6.18

11

NUT, FLANGE(4MV)

95707-06500-00

$0.78

12

SCREW, TAPPING(4MV)

97707-50016-00

$1.16

13

STAY 1

85L-77125-01-00

Unavailable

14

STAY 3

85L-77127-01-00

Unavailable

15

BOLT, WING(8W1)

90122-05022-00

$6.15

16

. WASHER, PLATE

90202-05088-00

$6.33

17

PIN, HAIR 6474123500

90468-10003-00

$2.45

18

WASHER(3SX)

92907-05100-00

$6.18

19

CIRCLIP (EU0)

99080-04600-00

$1.67

20

PIN

90249-05136-00

Unavailable

21

RIVET (856)

90267-48014-00

$3.11

22

WASHER, PLATE

90201-04027-00

$1.88

23

LABEL,WARNING 2

8BE-77762-00-00

Unavailable

24

WASHER, PLATE (8J0)

90201-05725-00

$6.80

25

STOPPER,SHROUD

89X-77118-00-00

Unavailable

26

CLAMP, ROD

80L-77159-00-00

Unavailable

27

CLAMP(83R)

90461-08113-00

$10.48

28

SCREW, TRUSS TAP.

97707-50014-00

$6.18

29

PLATE 1

85L-77185-00-00

Unavailable

30

BOLT, WITH WASHER (4L0)

90119-05059-00

$1.78

31

HINGE ASSEMBLY

85L-77140-00-00

Unavailable

32

DUCT

85L-77194-00-00

Unavailable

33

PROTECTOR 3

85L-77553-00-00

Unavailable

34

HINGE ASSEMBLY 2

85L-7714A-00-00

Unavailable

35

NUT, FLANGE(4MV)

95707-06500-00

$0.78

36

PROTECTOR 4

85L-77554-00-00

Unavailable

37

SCREW, TRUSS TAP.

97707-50014-00

$6.18

38

RIVET (856)

90267-48014-00

$3.11

39

WASHER, PLATE (34L)

90201-043H7-00

$2.57

40

SCREW, W/WASHER (4L0)

90159-06060-00

$6.17

41

STOPPER

85L-77188-00-00

$5.71

42

RIVET, BLIND (8M6)

90267-48051-00

$1.88

43

WASHER, SPECIAL

85L-77116-00-00

Unavailable

44

WASHER, PLATE

90201-04027-00

$1.88

45

HOOD 1

88E-21982-10-00

Unavailable

46

HOOD 2

88E-21983-10-00

Unavailable

47

NUT, SPRING (26H)

90183-06023-00

$7.45

48

BOLT, WITH WASHER

90119-06226-00

$2.15

49

STAY, BELT

85L-77338-00-00

Unavailable

50

RIVET, BLIND (8K1)

90267-40076-00

$6.17

51

WASHER, PLATE (8M6)

90201-047A2-00

$2.78

52

BRACKET 3

85L-2196F-00-00

Unavailable

53

BRACKET 4

85L-2196G-00-00

Unavailable

54

NUT, NYLON

95707-05300-00

$2.74

55

WASHER, PLAIN LARGE

92907-05200-00

$4.09

56

BOLT, WING (36F)

90122-06020-00

$4.98

57

WASHER, PLATE

90201-06557-00

$2.75

58

WASHER, PLATE 1412342700

90202-06008-00

$3.91

59

BOLT, WITH WASHER

90119-06226-00

$2.15

60

BUSH, RUBBER 1

85L-77515-00-00

Unavailable

61

BUSH, RUBBER 2

85L-77516-00-00

Unavailable

62

RIVET(81E)

90269-05055-00

$7.02

63

PROTECTOR 1

85L-77551-00-00

Unavailable

64

PROTECTOR 2

85L-77552-00-00

Unavailable

65

WASHER, PLATE 8067717800

90201-05029-00

$5.12

66

NUT, NYLON

95707-05300-00

$2.74

67

HOLDER, LATCH

8V0-77175-00-00

$15.43

68

PLATE

4U5-2176E-00-00

$6.43

69

LINING, SHROUD 4

85L-77264-00-00

Unavailable

70

LINING, SHROUD 5

85L-77265-00-00

Unavailable

71

DAMPER, NOISE 12

85L-77272-00-00

Unavailable

72

DAMPER, NOISE 13

85L-77273-00-00

Unavailable

73

TAPE 3

85L-7717G-01-00

Unavailable

74

TAPE 4

85L-7717H-01-00

Unavailable

75

LABEL, CAUTION

87D-1417E-01-00

Unavailable

76

LABEL 1

8Y7-47578-00-00

Unavailable
