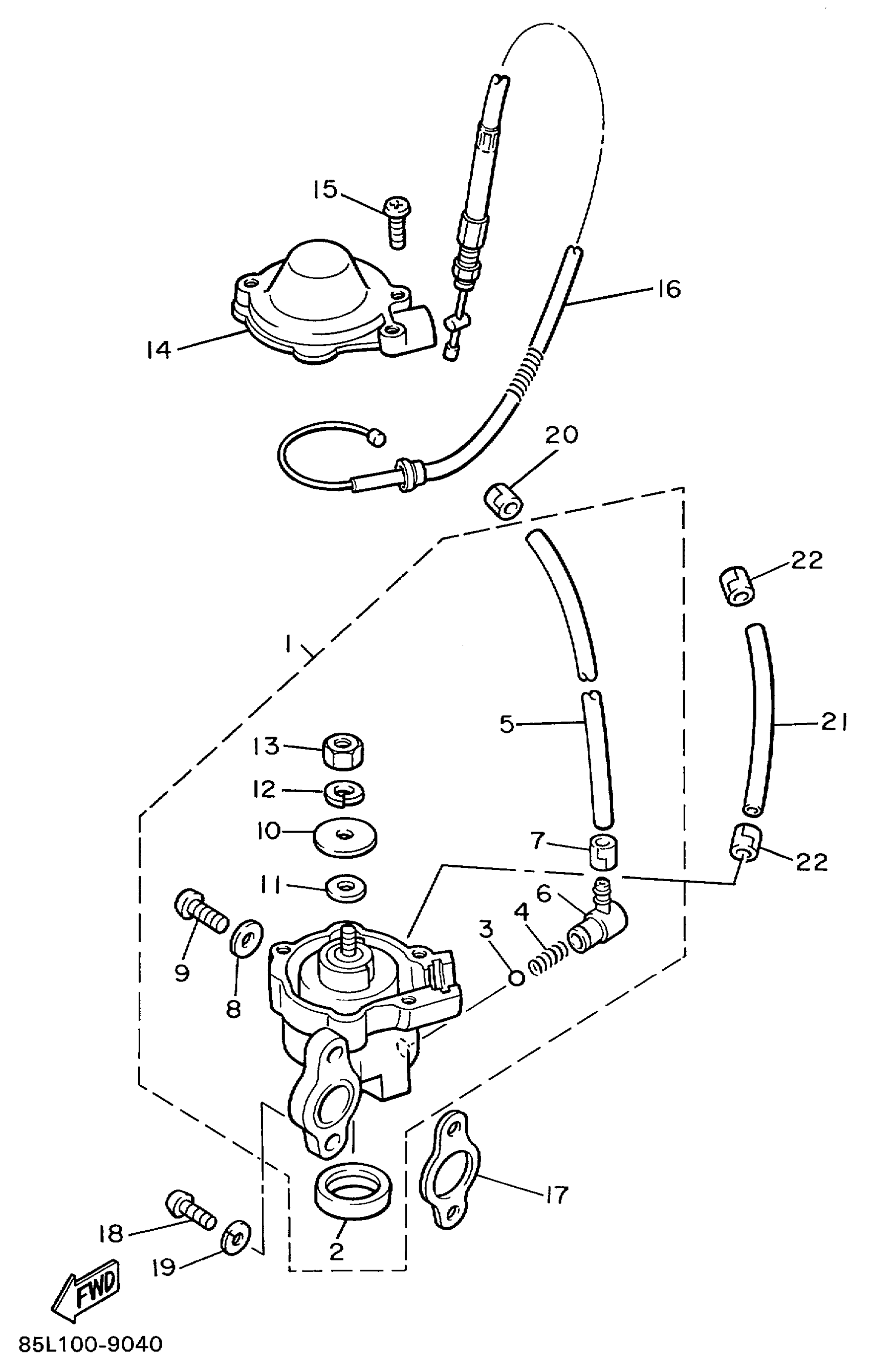

Yamaha CS340EC (OVATION LE) 8BE6 1999 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

85L-13101-00-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.22

4

SPRING (278-13169-00)

90501-02018-00

$7.69

5

HOSE

91A30-03052-00

Unavailable

6

NOZZLE

353-13552-01-00

$9.03

7

CLIP (2A6)

90468-02025-00

$7.02

8

GASKET 137131870000

90430-04004-00

$6.86

9

SCREW, BIND

98980-04008-00

$3.26

10

PLATE, ADJUSTING

137-13138-01-00

$12.17

11

SHIM,PLUNGER

137-13137-00-03

$5.35

11

SHIM,PLUNGER

137-13137-00-05

$5.32

11

SHIM,PLUNGER

137-13137-00-10

$6.43

12

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

13

NUT, HEXAGON (663)

95380-05600-00

$6.17

14

COVER, ADJUST PULLEY

8A5-13146-01-00

$15.95

15

SCREW, PAN HEAD

98507-04018-00

$1.23

16

PUMP CABLE ASSY

85L-26320-00-00

Unavailable

17

GASKET, PUMP CASE

126-13116-01-00

$6.92

18

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.40

19

WASHER(3SX)

92907-05100-00

$6.18

20

CLIP (2A6)

90468-02025-00

$7.02

21

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$8.80

22

CLIP (8A1)

90467-09026-00

$2.72
