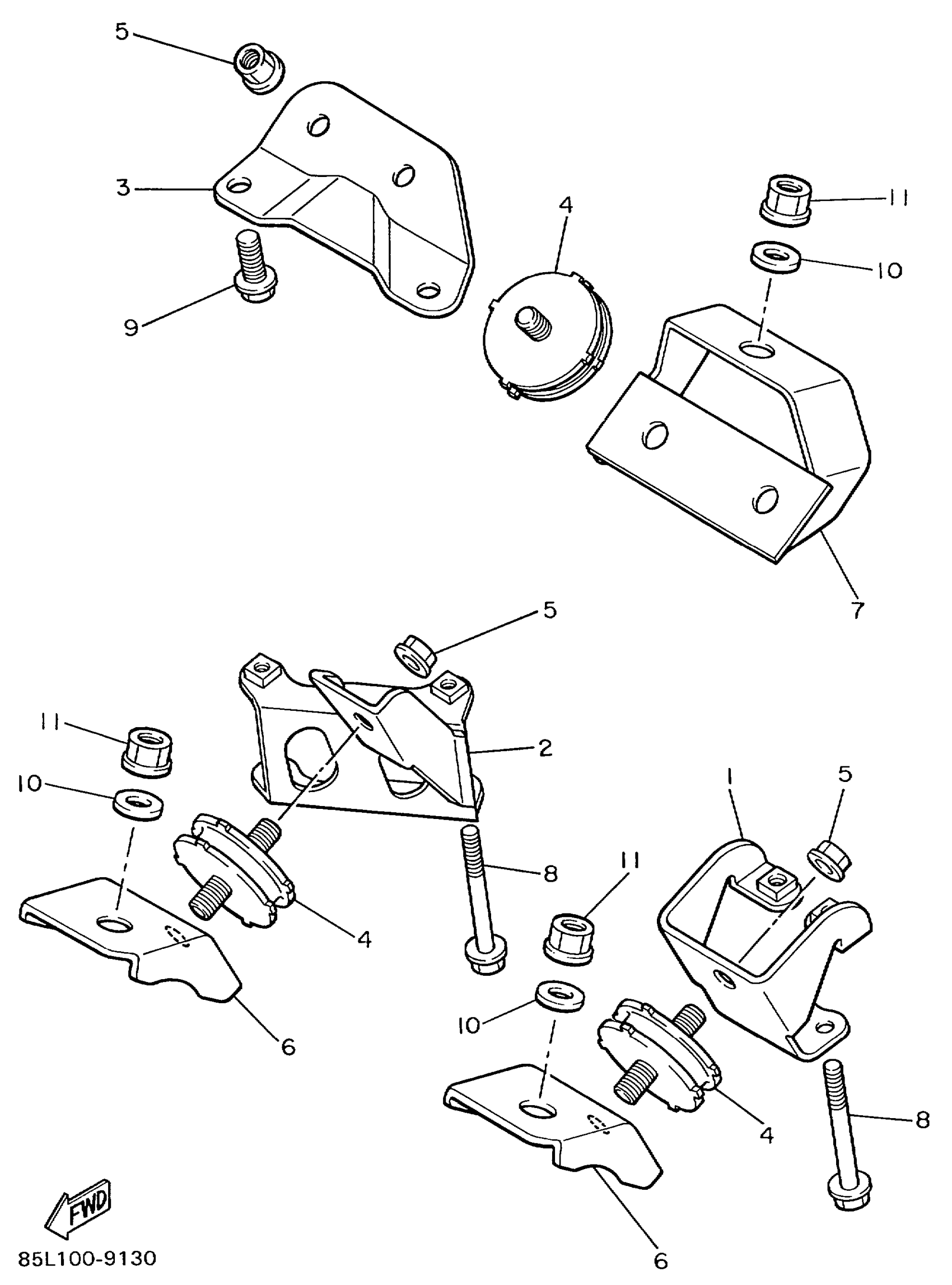

Yamaha CS340EC (OVATION LE) 8BE6 1999 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

85L-21411-00-00

$9.37

2

BRACKET, ENGINE 2

85L-21419-00-00

Unavailable

3

BRACKET, ENGINE 3

85L-21429-00-00

Unavailable

4

DAMPER 2

8N8-21486-00-00

Unavailable

5

NUT, FLANGE(8AB)

95707-10500-00

$1.66

6

BRACKET, FRONT LOWER 1

85L-21417-00-00

$14.48

7

BRACKET, REAR LOWER 1

85L-21427-00-00

Unavailable

8

BOLT, FLANGE(JN5)

95817-08070-00

$3.20

9

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

10

WASHER, PLATE (856)

90201-10321-00

$5.43

11

NUT, FLANGE(8AB)

95707-10500-00

$1.66
