1988 Kawasaki Concours Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

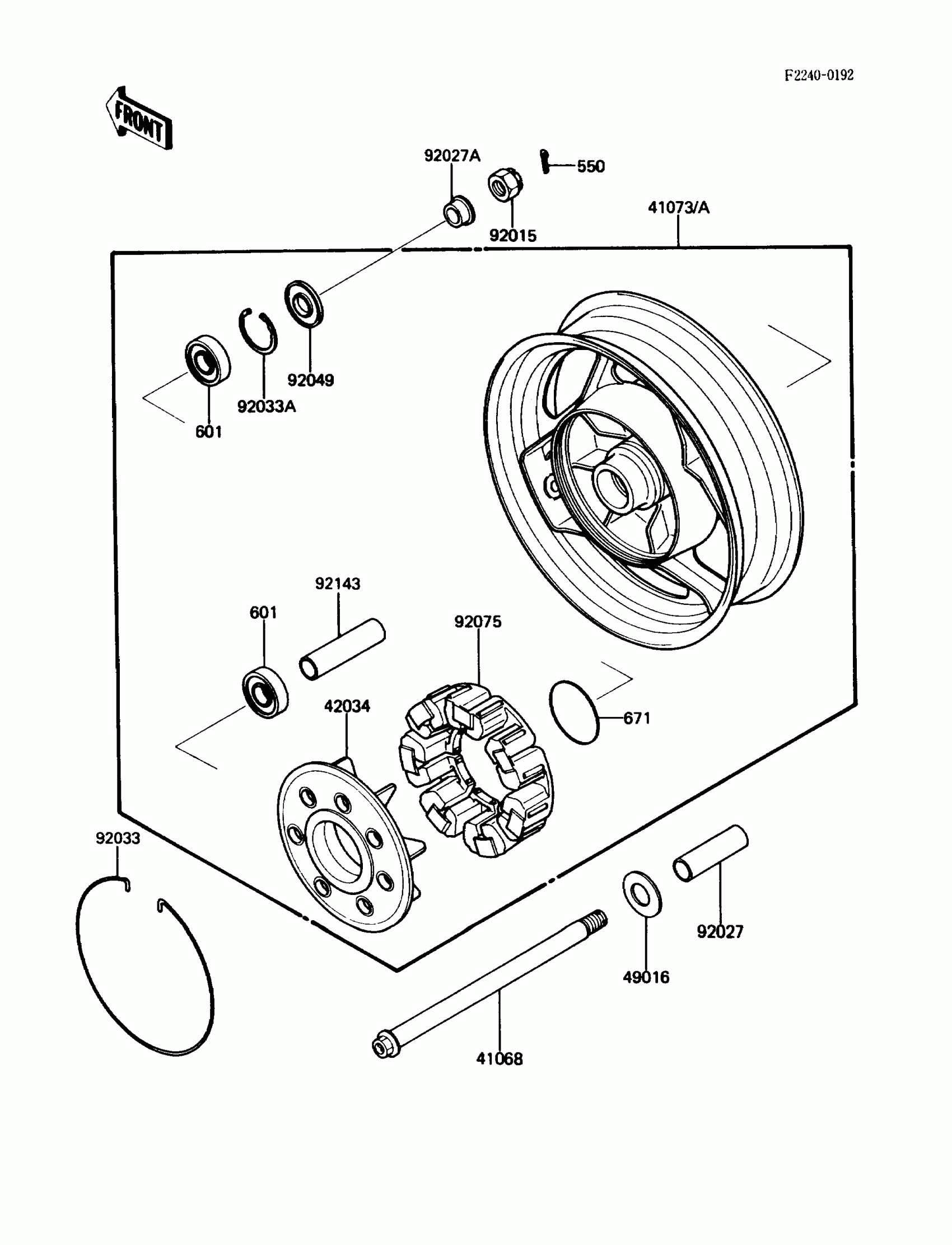

1988 Kawasaki Concours Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR

41068-1197

1

$120.19

In stock

41073

1

$1,119.40

In stock

42034

COUPLING,RR HUB

42034-1011

1

$283.07

In stock

49016

COVER-SEAL

49016-1019

1

$8.53

In stock

92015

NUT,CASTLE,18MM

42045-018

1

$7.31

In stock

92027

COLLAR,20.2X28X89

92027-1553

1

$30.75

In stock

92027A

COLLAR,RR AXLE,L=20

92027-1792

1

$34.31

In stock

92033

RING-SNAP

92033-1019

1

$15.64

In stock

92033A

RING-SNAP,52MM

92033-1043

1

$6.41

In stock

92049

SEAL-OIL,28X52X5

92049-1061

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1121

1

$144.96

In stock

92143

1

$40.28

In stock

550

1

$1.81

In stock

601

BEARING-BALL,#6304ZZC3

601B6304ZZ

1
Out of stock

671

O RING,80MM

671B2580

1

$5.45

In stock
