1988 Kawasaki Concours Clutch Master Cylinder Diagram

← All diagrams

Find the part on the Clutch Master Cylinder diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

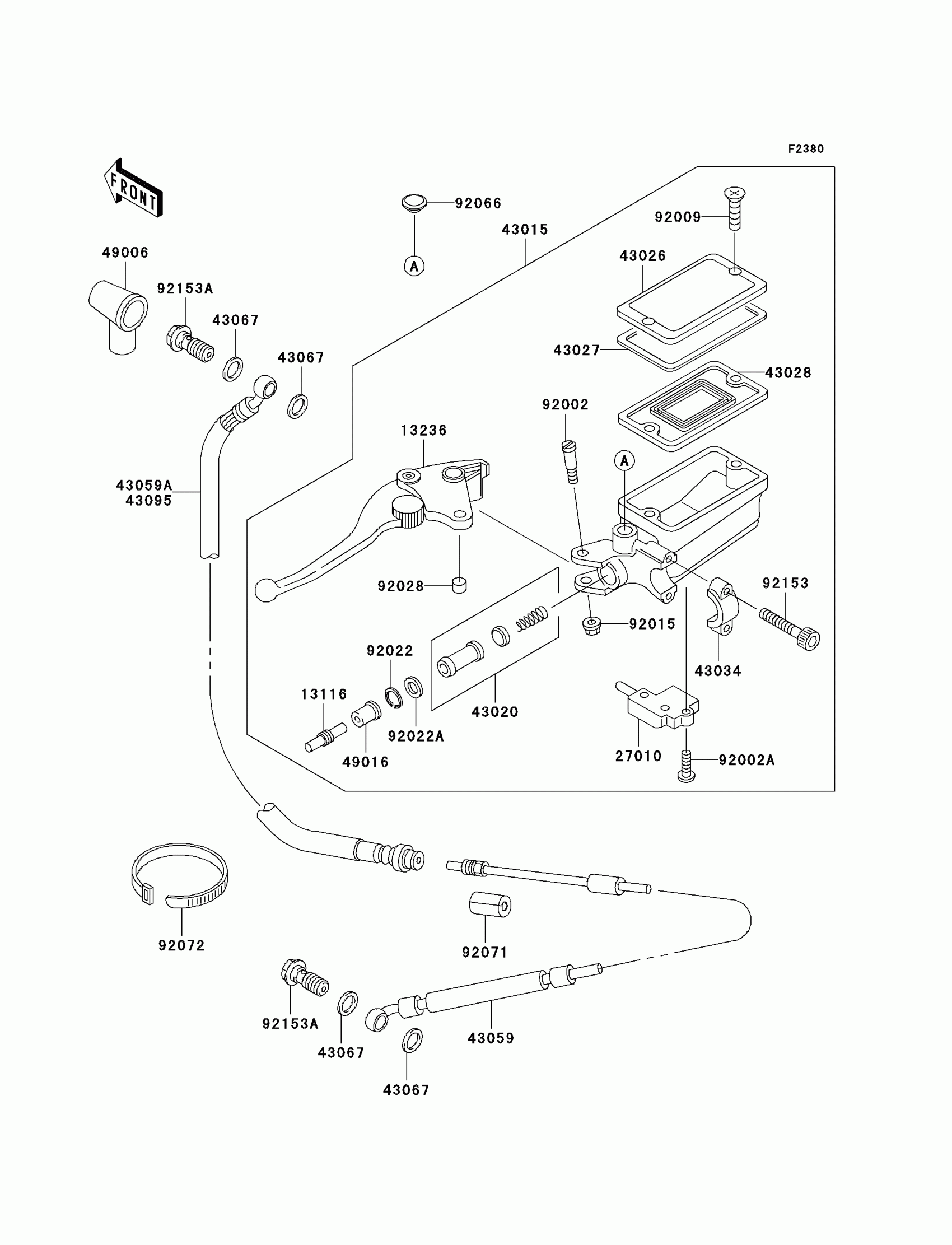

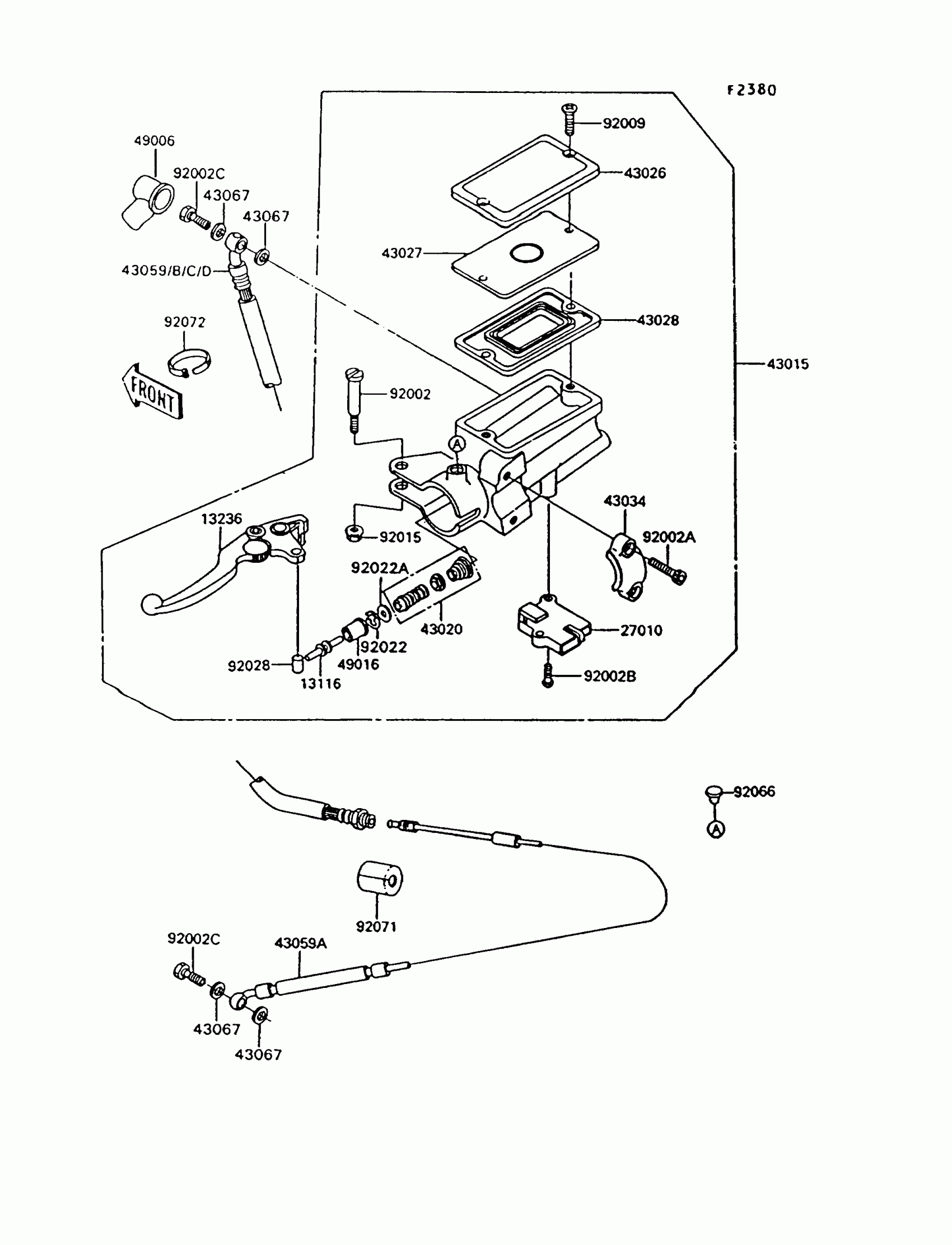

1988 Kawasaki Concours Clutch Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13116

1

$33.39

In stock

27010

SWITCH,CLUTCH

27010-1171

1

$32.95

In stock

43015

1

$391.50

In stock

43020

1

$59.90

In stock

43026

CAP-BRAKE,FR

43026-1052

1
Out of stock

43028

1

$21.24

In stock

43034

1

$36.55

In stock

43059A

1

$68.66

In stock

43059B

HOSE-BRAKE,CLUTCH

43059-1340

1

$135.87

In stock

43059C

HOSE-CLUTCH,FOR UP HANDLE

43059-1402

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-1131

1
Out of stock

49006

BOOT,DUST

49006-1040

1

$9.11

In stock

49016

1

$6.90

In stock

92001

SCREW,5MM,BLACK

92001-1727

1

$3.27

In stock

92002

1

$9.29

In stock

92002A

1

$7.54

In stock

92002B

SCREW,4X16

92002-1325

1

$7.83

In stock

92002C

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92022A

CIRCLIP

92022-1605

1

$3.97

In stock

92022B

WASHER,PISTON

92022-1606

1

$3.72

In stock

92028

1

$11.67

In stock

92066

1

$3.69

In stock

92071

GROMMET

92071-1143

1

$5.66

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock
