1988 Kawasaki Concours Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

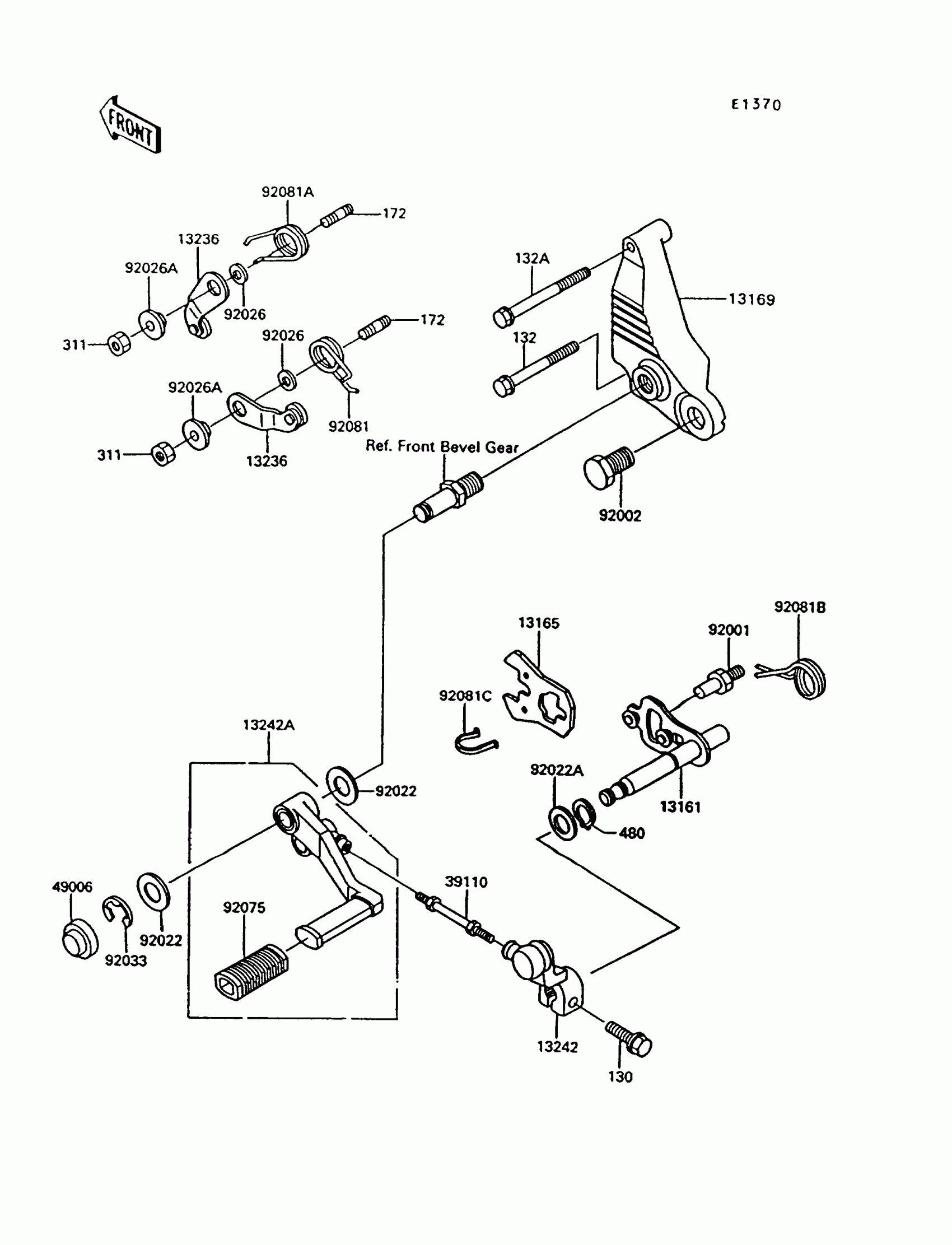

1988 Kawasaki Concours Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13161

1

$91.85

In stock

13165

PAWL

13165-1103

1
Out of stock

13183

PLATE,CHANGE PEDAL

13169-1663

1

$69.32

In stock

13236

1

$18.53

In stock

13242

LEVER-ASSY-CHANGE

13242-1195

1
Out of stock

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-1213

1
Out of stock

39110

ROD-ASSY-TIE,CHANGE PEDAL

39110-1071

1
Out of stock

49006

BOOT,CHANGE LEVER

49006-1061

1
Out of stock

92001

BOLT,RETURN SPRING

92001-1455

1

$4.17

In stock

92002

BOLT,M14X22

92002-1816

1
Out of stock

92022

WASHER,12.5X22X1.2

92022-1593

1

$4.00

In stock

92022A

WASHER,13.3X18X1

92022-1772

1

$3.98

In stock

92026

SPACER,6.3X12X1.0

92026-094

1

$8.92

In stock

92026A

SPACER

92026-1217

1

$4.37

In stock

92033

1

$3.81

In stock

92075

DAMPER,CHANGE PEDAL

92075-1175

1
Out of stock

92081

SPRING

92081-1645

1
Out of stock

92081A

SPRING

92081-1742

1
Out of stock

92081B

1

$10.93

In stock

92081C

SPRING,CHANGE LEVER

92081-1829

1

$6.98

In stock

130

BOLT-FLANGED,6X20

130S0620

1
Out of stock

132

BOLT-FLANGED-SMALL

132W0660

1
Out of stock

132A

BOLT-FLANGED-SMALL

132W0670

1
Out of stock

172

BOLT-STUD,6X14

172G0614

1
Out of stock

311

NUT-HEX,6MM

311G0600

1
Out of stock

480

1

$3.12

In stock
