2009 Kawasaki Concours™ 14 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2009 Kawasaki Concours™ 14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

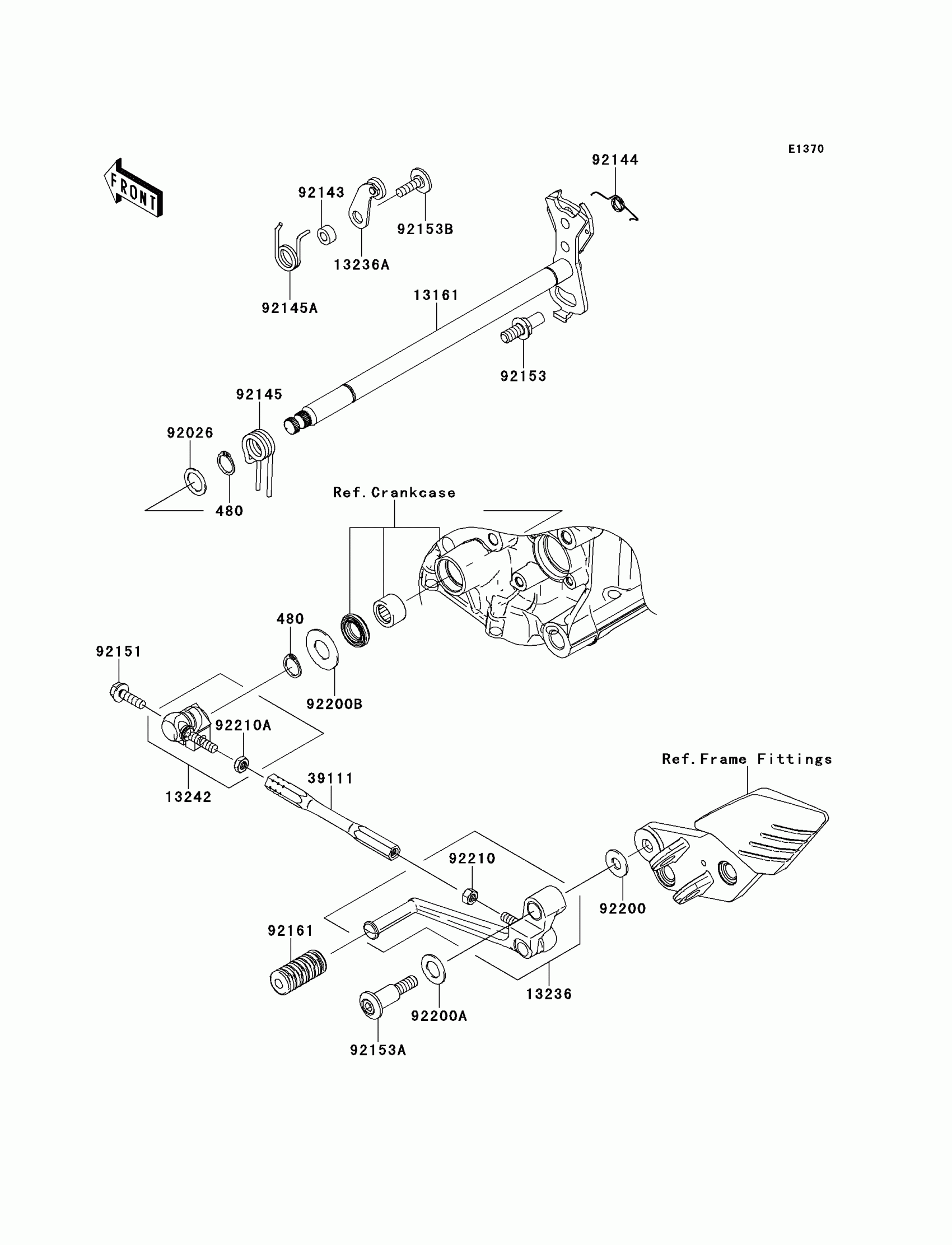

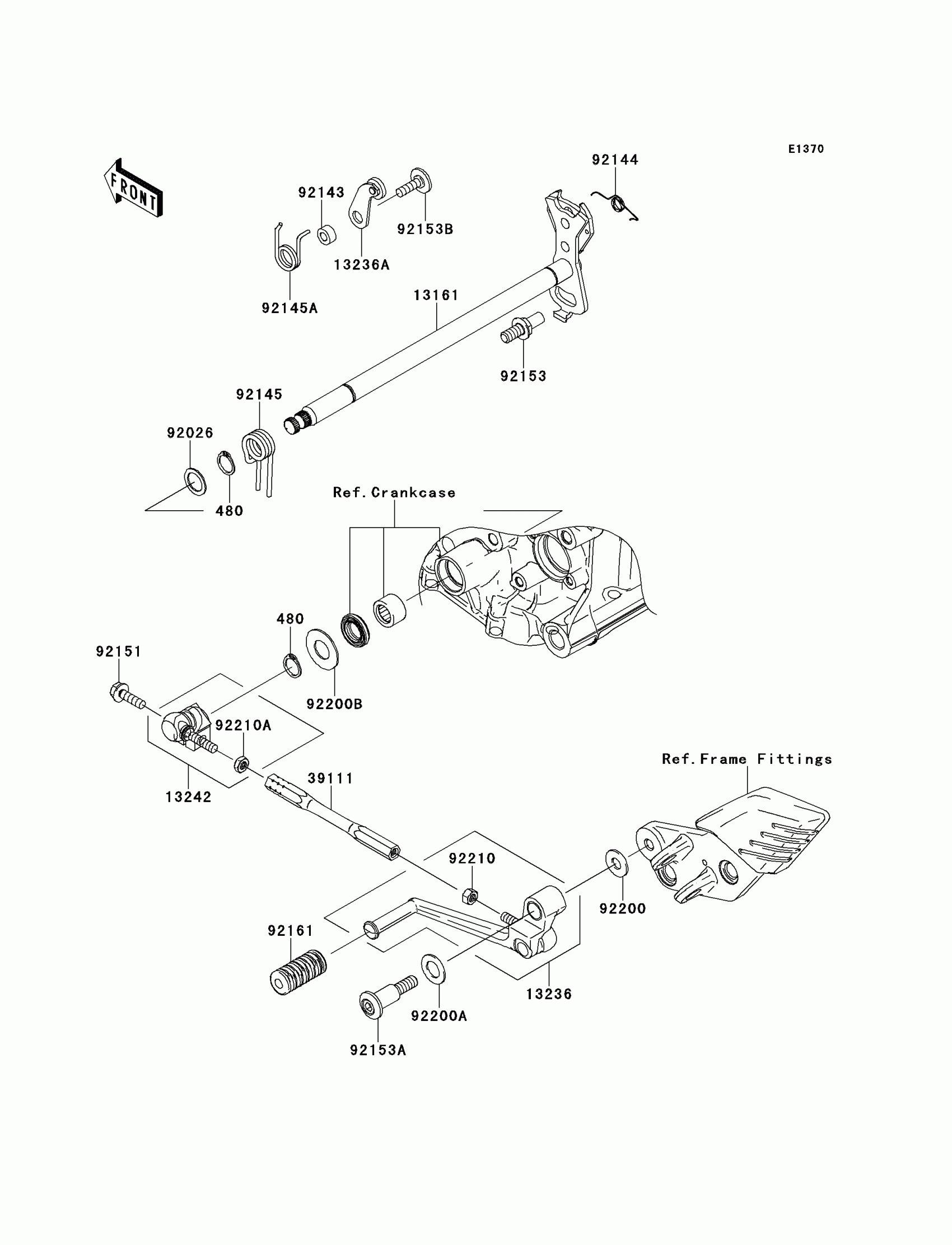

2009 Kawasaki Concours™ 14 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,14MM

480J1400

1
Out of stock

13161

LEVER-COMP-CHANGE SHAFT

13161-0034

1
Out of stock

13236

LEVER-COMP,CHANGE PEDAL

13236-0078

1
Out of stock

13236A

LEVER-COMP

13236-1243

1
Out of stock

13242

LEVER-ASSY-CHANGE

13242-0039

1
Out of stock

39111

ROD-TIE

39111-0034

1

$48.82

In stock

92026

SPACER,14X20X1.0

92026-1534

1
Out of stock

92143

COLLAR

92143-1595

1
Out of stock

92144

SPRING

92144-1029

1
Out of stock

92145

SPRING

92145-0336

1
Out of stock

92145A

SPRING

92145-0404

1
Out of stock

92151

BOLT,FLANGED,6X20

92151-1226

1
Out of stock

92153

BOLT,RETURN SPRING

92153-0421

1
Out of stock

92153A

BOLT,8X41

92153-0880

1
Out of stock

92153B

BOLT,6X20

92153-1505

1
Out of stock

92161

DAMPER,CHANGE PEDAL

92161-1300

1
Out of stock

92200

WASHER,8.5X20X1.5

92200-0198

1
Out of stock

92200A

WASHER,12.5X22X1.2

92200-0199

1
Out of stock

92200B

WASHER

92200-0265

1
Out of stock

92210

NUT,6MM

92210-1100

1
Out of stock

92210A

NUT,LEFT HANDED,6MM

92210-1101

1
Out of stock
← Gear Change Drum/shift Fork Rear Wheel/chain →
