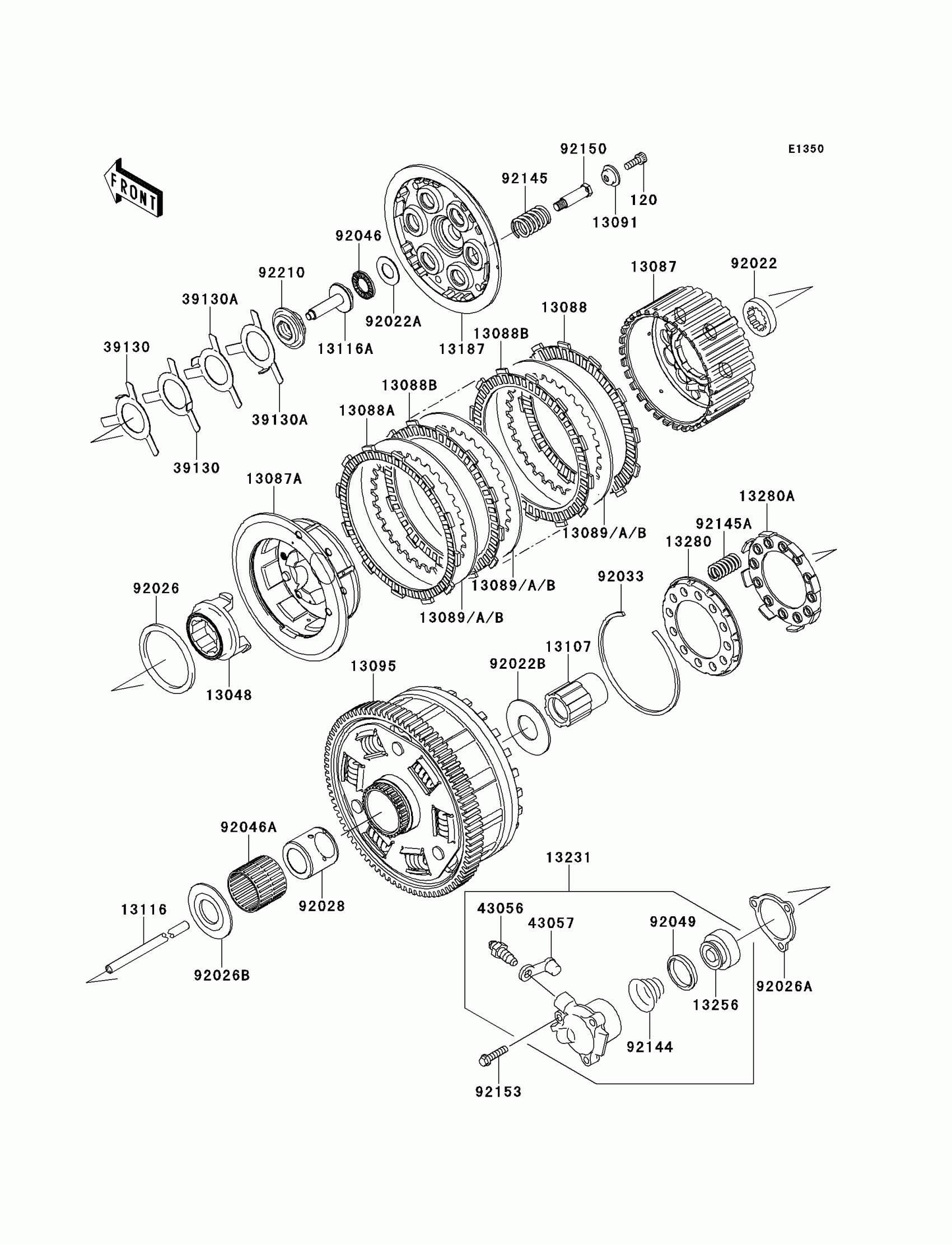

Kawasaki Concours™ 14 Clutch Diagram

#

Description
Price

13048

CAM-DAMPER

13048-0015

$100.52

13087

HUB-CLUTCH,MOVABLE

13087-0038

$253.67

13087A

HUB-CLUTCH,FIXED

13087-0044

$343.16

13088

PLATE-FRICTION

13088-0031

$14.21

13088A

PLATE-FRICTION

13088-0033

$18.07

13088B

PLATE-FRICTION

13088-0037

$14.60

13089

PLATE-CLUTCH,T=2.6

13089-0018

$11.97

13089A

PLATE-CLUTCH,T=2.3

13089-0019

Unavailable

13089B

PLATE-CLUTCH,T=2.9

13089-0020

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1041

$9.30

13095

HOUSING-COMP-CLUTCH

13095-0084

$679.89

13107

SHAFT,CLUTCH

13107-1299

$85.81

13116

ROD-PUSH

13116-0022

$34.86

13116A

ROD-PUSH,CLUTCH

13116-1102

$37.48

13187

PLATE-CLUTCH OPERATING

13187-0012

$71.61

13231

RELEASE-ASSY-CLUTCH

13231-0002

$106.83

13256

PISTON

13256-0004

$56.33

13280

HOLDER,NO MARK

13280-0206

$39.93

13280A

HOLDER,ONE MARK

13280-0207

$39.93

39130

SPRING-LEAF

39130-1078

$7.52

39130A

SPRING-LEAF

39130-1079

$7.52

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

92022

WASHER,TOOTHED,25X40X5

92022-1114

$11.31

92022A

WASHER,15.1X29X1.0

92022-1463

$3.44

92022B

WASHER,25.3X56X2.0

92022-1857

$13.51

92026

SPACER,59X70X3.5

92026-1043

$30.12

92026A

SPACER,CLUTCH RELEASE

92026-1263

$12.66

92026B

SPACER

92026-1497

$10.83

92028

BUSHING

92028-1934

$43.23

92033

RING-SNAP,98.5X3.4

92033-0048

$11.02

92046

BEARING-NEEDLE,AXK1102

92046-1052

$10.99

92046A

BEARING-NEEDLE

92046-1267

$49.40

92049

SEAL-OIL

92049-0086

$7.84

92144

SPRING,CLUTCH RELEASE

92144-1084

$6.48

92145

SPRING,15X2.7

92145-0440

$8.99

92145A

SPRING

92145-0537

$6.99

92150

BOLT,CLUTCH

92150-1477

$6.18

92153

BOLT,FLANGED-SMALL,6X25

92153-1565

$1.81

92210

NUT

92210-0152

$7.70

120

BOLT-SOCKET,6X16

120Q0616

Unavailable
